# Heltec Wireless Stick Lite V3

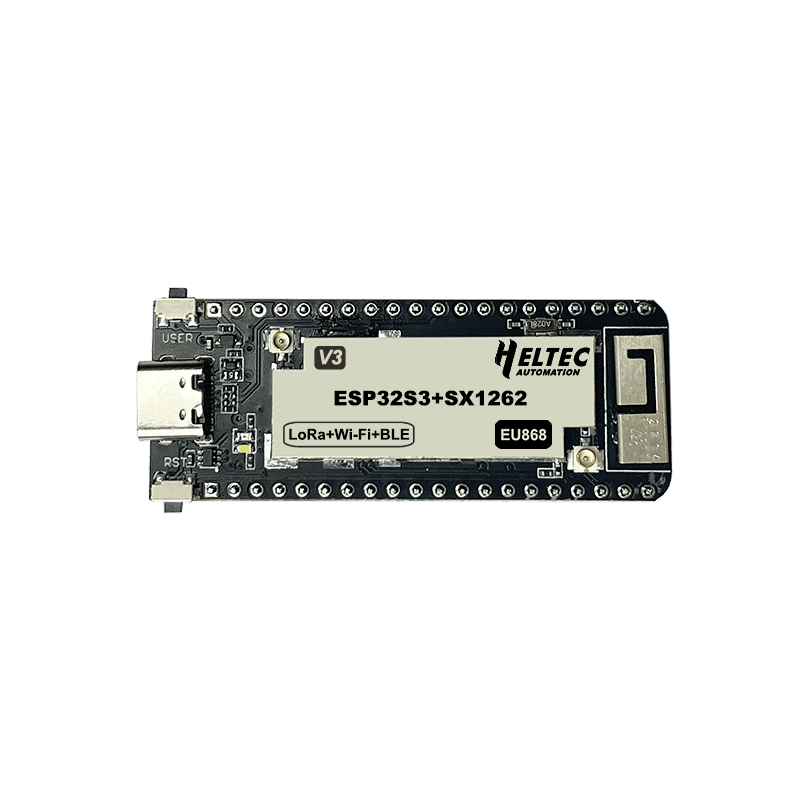

> Compact ESP32-S3 + SX1262 LoRa development board with WiFi, BLE 5.0, and integrated battery management. Meshtastic and LoRaWAN compatible, with a slim stick form factor ideal for IoT sensor nodes and mesh networking.

## Quick Facts

- **Brand:** Heltec Automation
- **Board Type:** dev-board
- **Price:** ~$14.9
- **CPU:** Xtensa LX7 dual-core @ 240MHz, FPU, HW crypto (AES/SHA/RSA)
- **CPU Architecture:** Xtensa LX7
- **CPU Cores:** 2
- **RAM:** 512KB SRAM
- **PSRAM:** No
- **Flash:** 8MB SiP
- **USB:** USB-C (CP2102)
- **Power:** 5V + LiPo
- **Operating Voltage:** 3.3V
- **Operating Temp:** -20°C to +70°C
- **Dimensions:** 58.08 × 22.6 × 8.2mm
- **Weight:** 25g
- **Battery:** LiPo (user-supplied, 1.25mm JST)
- **Charging Port:** USB-C
- **Antenna:** IPEX 1.0 (U.FL) for LoRa,PCB spring antenna (WiFi/BLE)
- **SD Card:** No
- **Display:** No No No

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0, Bluetooth Mesh
- **Lora:** SX1262 433/868/915MHz

## Use Cases

- lora-mesh-networking
- off-grid-communication
- lorawan-node
- environmental-monitoring
- field-data-logger
- tinygs-ground-station
- water-quality-monitoring
- disaster-radio

## Components

- **ESP32-S3FN8** (mcu): Espressif ESP32-S3FN8 Xtensa LX7 dual-core processor at 240MHz with 512KB SRAM, 8MB SiP flash, WiFi 802.11 b/g/n, BLE 5.0, hardware crypto acceleration (AES/SHA/RSA/HMAC), 14 touch-sensing IOs, and ULP co-processor for deep sleep wake. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=heltec-wireless-stick-lite-v3&source=md-export)
- **SX1262** (radio): Semtech SX1262 long-range, low-power sub-GHz LoRa transceiver supporting 150-960MHz frequency range with up to +22dBm TX power and -134dBm receiving sensitivity. Supports LoRa and FSK modulation. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fcdn.sparkfun.com%2Fassets%2F6%2Fb%2F5%2F1%2F4%2FSX1262_datasheet.pdf&ref=openhardware.directory&product=heltec-wireless-stick-lite-v3&source=md-export)
- **CP2102** (usb-uart): Silicon Labs CP2102 USB 2.0 full-speed to UART bridge for firmware programming and serial debug output. Provides reliable serial communication at up to 1Mbps. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.silabs.com%2Fdocuments%2Fpublic%2Fdata-sheets%2FCP2102-9.pdf&ref=openhardware.directory&product=heltec-wireless-stick-lite-v3&source=md-export)

## Protocols

- **SPI** (SPI2 (LoRa)): SCK: GPIO9, MOSI: GPIO10, MISO: GPIO11, CS: GPIO8
- **I2C** (I2C0): SDA: GPIO2, SCL: GPIO3
- **UART** (UART0 (Console)): RX: GPIO1, TX: GPIO2
- **UART** (UART1): RX: GPIO9, TX: GPIO10
- **CAN** (TWAI (optional)): TX: GPIO42, RX: GPIO41
- **PWM**
- **ADC**

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO0 | Battery Voltage / ADC1_CH0 | ADC | adc, digital-input, digital-output, pwm, rtc |
| GPIO1 | UART0 RX / A0 / Touch0 | UART | adc, touch, digital-input, digital-output, pwm, rtc |
| GPIO2 | I2C SDA / A1 / Touch1 | I2C | adc, touch, digital-input, digital-output, pwm, rtc |
| GPIO3 | I2C SCL / A2 / Touch2 | I2C | adc, touch, digital-input, digital-output, pwm, rtc |
| GPIO4 | A3 / Touch3 | — | adc, touch, digital-input, digital-output, pwm, rtc |
| GPIO5 | A4 / Touch4 | — | adc, touch, digital-input, digital-output, pwm, rtc |
| GPIO6 | A5 / Touch5 | — | adc, touch, digital-input, digital-output, pwm, rtc |
| GPIO7 | A6 / Touch6 | — | adc, touch, digital-input, digital-output, pwm, rtc |
| GPIO8 | LoRa NSS (SPI CS) | SPI | digital-input, digital-output, pwm |
| GPIO9 | LoRa SCK / UART1 RX | SPI | digital-input, digital-output, pwm |
| GPIO10 | LoRa MOSI / UART1 TX | SPI | digital-input, digital-output, pwm |
| GPIO11 | LoRa MISO | SPI | digital-input, digital-output, pwm |
| GPIO12 | LoRa RST / A7 | — | adc, digital-input, digital-output, pwm |
| GPIO13 | LoRa BUSY | — | digital-input, digital-output, pwm |
| GPIO14 | LoRa DIO1 / A8 | — | adc, digital-input, digital-output, pwm |
| GPIO21 | General Purpose | — | digital-input, digital-output, pwm |
| GPIO35 | LED / PWM LED Control | — | digital-input, digital-output, pwm |
| GPIO36 | Vext Control (external sensor power) | — | digital-input, digital-output, pwm |
| GPIO37 | ADC Control | — | digital-input, digital-output, pwm |
| GPIO39 | General Purpose | — | digital-input, digital-output, pwm |
| GPIO40 | General Purpose | — | digital-input, digital-output, pwm |
| GPIO41 | General Purpose / CAN RX | — | digital-input, digital-output, pwm |
| GPIO42 | General Purpose / CAN TX | — | digital-input, digital-output, pwm |
| GPIO43 | Default TX | UART | digital-input, digital-output, pwm |
| GPIO44 | Default RX | UART | digital-input, digital-output, pwm |
| GPIO45 | General Purpose | — | digital-input, digital-output, pwm, strapping |
| GPIO46 | General Purpose | — | digital-input, digital-output, pwm, strapping |
| GPIO47 | General Purpose | — | digital-input, digital-output, pwm |
| GPIO48 | General Purpose | — | digital-input, digital-output, pwm |

## Description

## Overview

The Heltec Wireless Stick Lite V3 is a compact, triple-connectivity development board combining an ESP32-S3FN8 microcontroller with a Semtech SX1262 LoRa transceiver. It provides WiFi 802.11 b/g/n, Bluetooth LE 5.0, and long-range LoRa communication in a slim stick form factor measuring just 58 x 23mm. Unlike its sibling the Wireless Stick V3, this "Lite" variant omits the OLED display, making it more power-efficient and cost-effective for embedded deployments where a screen is unnecessary.

The board features an integrated lithium battery management system with charge/discharge control, overcharge protection, and automatic USB/battery power switching via an SH1.25-2 JST connector. A GPIO-controlled 3.3V power rail (Vext) lets you power external sensors on demand and cut power during deep sleep for minimal power consumption (~800uA sleep current). The CP2102 USB-to-UART bridge provides reliable programming and debugging over USB-C.

The Wireless Stick Lite V3 has strong community support as a Meshtastic and LoRaWAN node. It is officially supported by the Heltec ESP32 Arduino framework, PlatformIO, Zephyr RTOS, and ESP-IDF. The board is also compatible with projects like ESP32 Paxcounter, Disaster Radio, and TinyGS satellite ground stations. With its low price, small footprint, and triple wireless connectivity, it serves as an excellent platform for IoT sensor networks, environmental monitoring, off-grid mesh communication, and LoRaWAN deployments.
