# Heltec Vision Master E213

> ESP32-S3 development board with 2.13-inch E-Paper display and optional SX1262 LoRa radio, supporting Meshtastic, LoRaWAN, Arduino, and MicroPython. Features WiFi, BLE 5.0, ultra-low 20uA deep sleep, lithium battery management, and dual SH2.0 sensor ports.

## Quick Facts

- **Brand:** Heltec Automation
- **CPU:** Xtensa LX7 dual-core @ 240MHz, FPU, AI vector extensions, HW crypto (AES/SHA/RSA)
- **CPU Architecture:** Xtensa LX7
- **CPU Cores:** 2
- **RAM:** 512KB SRAM
- **PSRAM:** 8MB (integrated in SoC)
- **Flash:** 16MB
- **USB:** USB-C (native USB CDC)
- **Power:** 5V via USB-C,3.7V LiPo
- **Operating Voltage:** 3.3V
- **Operating Temp:** -20°C to +70°C
- **Dimensions:** 66.75 × 30.41 × 10mm
- **Weight:** 35g
- **Charging Port:** USB-C
- **Antenna:** IPEX 1.0 (U.FL)
- **SD Card:** No
- **Display:** 2.13" E-Paper 250×122

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0
- **Lora:** SX1262 433/868/915MHz

## Use Cases

- lora-mesh-networking
- electronic-label
- lorawan-node
- remote-sensor-nodes
- environmental-monitoring
- battery-powered-sensor-node

## Components

- **ESP32-S3R8** (mcu): Espressif ESP32-S3R8 with dual-core Xtensa LX7 processor at 240MHz, 512KB SRAM, integrated 8MB PSRAM, WiFi 802.11 b/g/n, Bluetooth 5.0 LE, hardware crypto acceleration (AES/SHA/RSA), and 16KB RTC SRAM for deep sleep retention. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=heltec-vision-master-e213&source=md-export)
- **SX1262** (radio): Semtech SX1262 LoRa transceiver supporting 433/868/915MHz frequency bands with +21dBm TX power and -136dBm RX sensitivity at SF12/BW125kHz. Integrated via Heltec HT-RA62 module. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.semtech.com%2Fproducts%2Fwireless-rf%2Flora-connect%2Fsx1262&ref=openhardware.directory&product=heltec-vision-master-e213&source=md-export)
- **LCMEN2R13EFC1** (e-paper-display): 2.13-inch black-and-white E-Ink display with 250x122 pixel resolution, supporting partial refresh and 180-day image retention without power. Connected via SPI interface. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FHT-VME213%2FLCMEN2R13EFC1.pdf&ref=openhardware.directory&product=heltec-vision-master-e213&source=md-export)

## Protocols

- **SPI (LoRa)** (SPI0): SCK: GPIO9, MOSI: GPIO10, MISO: GPIO11, CS: GPIO8
- **SPI (E-Paper)** (SPI1): CLK: GPIO4, SDI: GPIO6, CS: GPIO5, DC: GPIO2, RST: GPIO3, BUSY: GPIO1
- **I2C**: SDA: GPIO39, SCL: GPIO38
- **UART**: TX: GPIO43, RX: GPIO44
- **PWM**

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO1 | E-Paper BUSY / ADC1_CH0 / Touch1 | SPI | digital-input, digital-output, adc, touch, pwm |
| GPIO2 | E-Paper DC / ADC1_CH1 / Touch2 | SPI | digital-input, digital-output, adc, touch, pwm |
| GPIO3 | E-Paper RST / ADC1_CH2 / Touch3 | SPI | digital-input, digital-output, adc, touch, pwm |
| GPIO4 | E-Paper CLK / ADC1_CH3 / Touch4 | SPI | digital-input, digital-output, adc, touch, pwm |
| GPIO5 | E-Paper CS / ADC1_CH4 / Touch5 | SPI | digital-input, digital-output, adc, touch, pwm |
| GPIO6 | E-Paper SDI / ADC1_CH5 / Touch6 | SPI | digital-input, digital-output, adc, touch, pwm |
| GPIO7 | ADC2_CH6 | — | digital-input, digital-output, adc, pwm |
| GPIO8 | LoRa NSS | SPI | digital-input, digital-output, pwm |
| GPIO9 | LoRa SCK | SPI | digital-input, digital-output, pwm |
| GPIO10 | LoRa MOSI | SPI | digital-input, digital-output, pwm |
| GPIO11 | LoRa MISO | SPI | digital-input, digital-output, pwm |
| GPIO12 | LoRa RST | — | digital-input, digital-output, pwm |
| GPIO13 | LoRa BUSY | — | digital-input, digital-output, pwm |
| GPIO14 | LoRa DIO1 / IRQ | — | digital-input, digital-output, pwm |
| GPIO15 | ADC2_CH4 | — | digital-input, digital-output, adc, pwm |
| GPIO16 | ADC2_CH5 | — | digital-input, digital-output, adc, pwm |
| GPIO17 | ADC2_CH6 | — | digital-input, digital-output, adc, pwm |
| GPIO18 | Vext Control | — | digital-input, digital-output, pwm |
| GPIO19 | USB D- (native) | — | digital-input, digital-output |
| GPIO20 | USB D+ (native) | — | digital-input, digital-output |
| GPIO21 | User Button (PRG) | — | digital-input, digital-output, pwm |
| GPIO38 | I2C SCL | I2C | digital-input, digital-output, pwm |
| GPIO39 | I2C SDA | I2C | digital-input, digital-output, pwm |
| GPIO40 | General Purpose | — | digital-input, digital-output, pwm |
| GPIO41 | General Purpose | — | digital-input, digital-output, pwm |
| GPIO42 | General Purpose | — | digital-input, digital-output, pwm |
| GPIO43 | UART TX | UART | digital-input, digital-output, pwm |
| GPIO44 | UART RX | UART | digital-input, digital-output, pwm |
| GPIO45 | General Purpose (Strapping) | — | digital-input, digital-output, pwm, strapping |
| GPIO46 | General Purpose (Strapping) | — | digital-input, digital-output, pwm, strapping |

## Description

## Overview

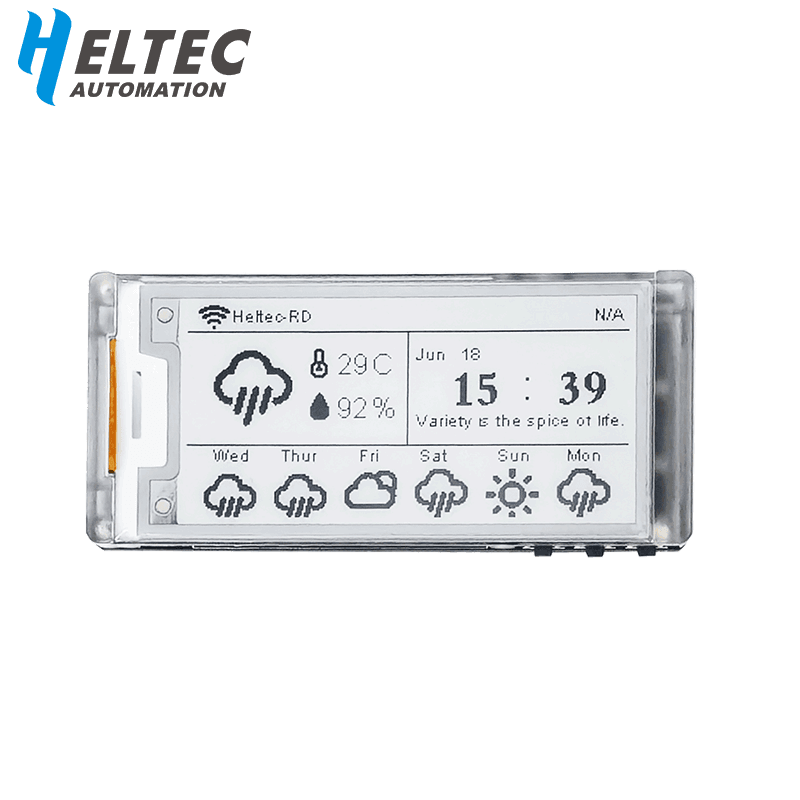

The Heltec Vision Master E213 (HT-VME213) is a compact IoT development board built around the ESP32-S3R8 microcontroller, featuring a 2.13-inch black-and-white E-Paper display with 250x122 pixel resolution. The E-Ink screen supports partial refresh and retains its displayed image for up to 180 days after power loss, making it ideal for low-power information displays, electronic labels, and always-on status panels.

The board integrates WiFi 802.11 b/g/n, Bluetooth 5.0 LE, and an optional SX1262 LoRa radio module supporting multiple frequency bands (433MHz, 470-510MHz, 863-928MHz). This triple-wireless capability enables versatile IoT deployments from short-range BLE beacons to long-range LoRa mesh networks. The board is officially compatible with Meshtastic firmware for off-grid text messaging and mesh networking.

Power management is a strong suit of the E213, with integrated lithium battery charge/discharge circuitry and a deep sleep current of just 20uA. The SH1.25-2P battery connector accepts standard 3.7V LiPo cells, while USB-C provides both charging and programming. Two SH2.0-4P sensor interfaces offer plug-and-play connectivity with Heltec's QuickLink sensor ecosystem, and dual 18-pin headers expose GPIO for custom hardware integration.

Development is supported through Arduino, PlatformIO, MicroPython, and Espressif IDF. The board's combination of E-Paper display, LoRa radio, and ultra-low-power design makes it particularly well-suited for Meshtastic mesh nodes, LoRaWAN sensor endpoints, electronic shelf labels, remote environmental monitors, and battery-powered IoT deployments that need to run for months on a single charge.
