Meshtastic Off-Grid Node on T-Echo
Turn the LILYGO T-Echo into a low-power Meshtastic mesh node with multi-day battery life, e-paper display, and Bluetooth app pairing for off-grid encrypted mesh communications.
Overview

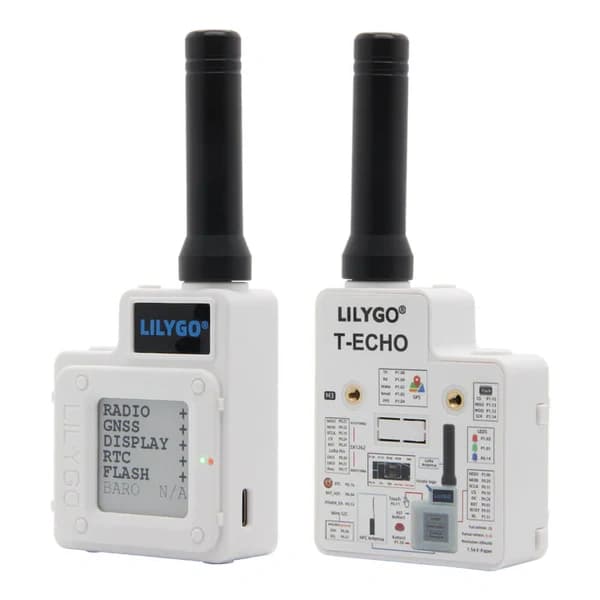

The LILYGO T-Echo is a purpose-built Meshtastic device that ships with Meshtastic firmware pre-installed from LILYGO's factory. It combines the nRF52840 BLE SoC (significantly more power-efficient than ESP32), a Semtech SX1262 LoRa radio, L76K GPS module, and a 1.54-inch e-paper display into a compact, wearable form factor. The result is a Meshtastic node that can run for several days on its 850 mAh battery — far longer than ESP32-based alternatives.
Getting Started
Flashing Meshtastic (or updating to the latest version) on the T-Echo is done through the official web flasher at flasher.meshtastic.org — nRF52-based devices use a drag-and-drop UF2 update process that requires no drivers or special software. After flashing, the Meshtastic app on iOS or Android connects via Bluetooth for configuration: set your region, node name, and LoRa channel settings, then start communicating.
Key Capabilities
The e-paper display shows received messages, GPS coordinates, battery level, and connected node count without consuming power when static — the display retains its image with zero power draw. The nRF52840's BLE 5 radio supports fast, reliable phone pairing. GPS position reporting lets other mesh members see your location on the Meshtastic app map. The T-Echo also supports NFC for quick device identification.
Limitations
The T-Echo requires a companion phone for message input (no keyboard), and the stock antenna has noted RF performance issues — aftermarket antennas improve range significantly. It does not support WiFi, so remote management must go through Bluetooth.
