# Heltec Mesh Node T114

> Compact nRF52840 + SX1262 LoRa development board with BLE 5.0, optional 1.14" TFT display and L76K GPS module. Designed for Meshtastic mesh networking, LoRaWAN, and battery-powered IoT deployments with ultra-low 11uA deep sleep current and solar panel support.

## Quick Facts

- **Brand:** Heltec Automation
- **Price:** ~$17.9
- **CPU:** ARM Cortex-M4F @ 64MHz, FPU, DSP, HW crypto (CryptoCell-310)
- **CPU Architecture:** ARM Cortex-M4F
- **CPU Cores:** 1
- **RAM:** 256KB SRAM
- **Flash:** 1MB internal,2MB external QSPI
- **USB:** USB-C 2.0
- **Power:** 5V via USB-C,3.7V LiPo,5-6.5V solar
- **Operating Voltage:** 3.3V
- **Operating Temp:** -20°C to +70°C
- **Dimensions:** 50.80 × 22.86mm
- **Weight:** 35g
- **Antenna:** U.FL/IPEX (LoRa),PCB built-in (BLE 2.4GHz)
- **SD Card:** No
- **Display:** 1.14" TFT LCD 135×240

## Connectivity

- **Bluetooth:** BLE 5.0, Bluetooth Mesh
- **Lora:** SX1262 433/868/915MHz, 22dBm

## Use Cases

- meshtastic-mesh
- lora-mesh-networking
- gps-tracking
- lorawan-node
- off-grid-communication
- solar-powered-iot
- asset-tracking

## Components

- **nRF52840** (mcu): Nordic Semiconductor nRF52840 SoC with ARM Cortex-M4F @ 64MHz, 1MB flash, 256KB SRAM, BLE 5.0, Bluetooth Mesh, 802.15.4, and CryptoCell-310 hardware crypto engine. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.nordicsemi.com%2FProducts%2FnRF52840&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)
- **SX1262** (radio): Semtech SX1262 LoRa transceiver supporting 150-960MHz frequency range with up to +22dBm TX power and -135dBm RX sensitivity at SF12/125kHz. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.semtech.com%2Fproducts%2Fwireless-rf%2Flora-connect%2Fsx1262&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)
- **L76K** (gps): Quectel L76K GNSS module supporting GPS, BeiDou, GLONASS, and QZSS constellations. Connected via UART and optional 8-pin 1.25mm connector. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.waveshare.com%2Fupload%2Fd%2Fdb%2FQuectel_L76K_Hardware_Design_V1.0.pdf&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)
- **ST7789** (display-driver): Sitronix ST7789 TFT LCD controller driving a 135x240 pixel display with 262K colors over SPI interface. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.buydisplay.com%2Fdownload%2Fic%2FST7789.pdf&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)
- **MX25R1635F** (flash-memory): Macronix MX25R1635F 16Mbit (2MB) serial NOR flash with QSPI interface, ultra-low power consumption, and wide voltage range (1.65-3.6V). — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.macronix.com%2FLists%2FDatasheet%2FAttachments%2F8702%2FMX25R1635F%2C%2520Wide%2520Range%2C%252016Mb%2C%2520v1.6.pdf&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)
- **PCF8563** (rtc): NXP PCF8563 RTC footprint on I2C bus 0 (P0.26/P0.27). Not populated on V1 boards but available for future revisions or manual soldering. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.nxp.com%2Fdocs%2Fen%2Fdata-sheet%2FPCF8563.pdf&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)
- **SK6812** (rgb-led): Two SK6812 NeoPixel addressable RGB LEDs on GPIO14 for programmable status indication and visual feedback. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fcdn-shop.adafruit.com%2Fproduct-files%2F1138%2FSK6812%2BLED%2Bdatasheet%2B.pdf&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)

## Protocols

- **SPI** (SPI0): SCK: GPIO19, MOSI: GPIO22, MISO: GPIO23
- **SPI** (SPI1): SCK: GPIO40, MOSI: GPIO41
- **I2C** (I2C0): SDA: GPIO26, SCL: GPIO27
- **I2C** (I2C1): SDA: GPIO16, SCL: GPIO13
- **UART** (UART0): TX: GPIO10, RX: GPIO9
- **UART** (UART1): TX: P1.05, RX: P1.07
- **QSPI**: SCK: P1.14, CS: P1.15, IO0: P1.12, IO1: P1.13, IO2: GPIO7, IO3: GPIO5

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO4 | A0 - Battery ADC | ADC | adc, digital-input, digital-output |
| GPIO5 | QSPI IO3 | QSPI | digital-input, digital-output |
| GPIO6 | ADC Control | — | digital-output |
| GPIO7 | QSPI IO2 | QSPI | digital-input, digital-output |
| GPIO9 | UART0 RX | UART | digital-input, digital-output, pwm |
| GPIO10 | UART0 TX | UART | digital-input, digital-output, pwm |
| GPIO11 | Display CS (ST7789) | SPI | digital-input, digital-output, pwm |
| GPIO12 | Display DC (ST7789) | — | digital-input, digital-output, pwm |
| GPIO13 | I2C1 SCL | I2C | digital-input, digital-output, pwm |
| GPIO14 | NeoPixel Data | — | digital-input, digital-output, pwm |
| GPIO15 | TFT Backlight | — | digital-input, digital-output, pwm |
| GPIO16 | I2C1 SDA | I2C | digital-input, digital-output, pwm |
| GPIO17 | SX1262 BUSY | SPI | digital-input |
| GPIO19 | LoRa SPI SCK | SPI | digital-input, digital-output, pwm |
| GPIO20 | SX1262 DIO1 | — | digital-input |
| GPIO21 | VEXT Enable | — | digital-output |
| GPIO22 | LoRa SPI MOSI | SPI | digital-input, digital-output, pwm |
| GPIO23 | LoRa SPI MISO | SPI | digital-input, digital-output, pwm |
| GPIO24 | SX1262 CS | SPI | digital-input, digital-output, pwm |
| GPIO25 | SX1262 RESET | — | digital-output |
| GPIO26 | I2C0 SDA (RTC) | I2C | digital-input, digital-output, pwm |
| GPIO27 | I2C0 SCL (RTC) | I2C | digital-input, digital-output, pwm |
| P1.02 | GPS Standby | — | digital-output |
| P1.03 | Green LED | — | digital-output |
| P1.04 | GPS PPS | — | digital-input |
| P1.05 | GPS UART TX (to GPS) | UART | digital-input, digital-output |
| P1.07 | GPS UART RX (from GPS) | UART | digital-input, digital-output |
| P1.10 | User Button | — | digital-input |
| P1.12 | QSPI IO0 (MOSI) | QSPI | digital-input, digital-output |
| P1.13 | QSPI IO1 (MISO) | QSPI | digital-input, digital-output |
| P1.14 | QSPI SCK | QSPI | digital-input, digital-output |
| P1.15 | QSPI CS | QSPI | digital-output |
| GPIO2 | Display Reset (ST7789) | — | digital-output |
| GPIO3 | TFT Power Control | — | digital-output |
| GPIO40 | Display SPI SCK | SPI | digital-input, digital-output, pwm |
| GPIO41 | Display SPI MOSI | SPI | digital-input, digital-output, pwm |

## Description

## Overview

The Heltec Mesh Node T114 (Rev. 2.0) is a compact, low-power development board built around the Nordic nRF52840 SoC and Semtech SX1262 LoRa transceiver. It is purpose-built for long-range mesh communication using Meshtastic and MeshCore firmware, as well as LoRaWAN applications via Heltec's nRF52 Arduino framework. The board measures just 50.80 x 22.86mm yet packs BLE 5.0, LoRa sub-GHz radio, and an onboard 2.4GHz ceramic antenna into a breadboard-friendly form factor.

Power efficiency is a standout feature, with deep sleep current as low as 11uA (or 23uA in Meshtastic low-power mode), making it ideal for battery and solar-powered field deployments. The board accepts power from USB-C, a 3.7V LiPo battery via SH1.25 connector, or a 5-6.5V solar panel. An optional 1.14-inch TFT-LCD (135x240, 262K colors, ST7789 driver) and Quectel L76K GNSS module can be added for display and GPS tracking capabilities.

The board includes 2MB external QSPI flash (MX25R1635F), a PCF8563 RTC footprint for timekeeping, two SK6812 NeoPixel RGB LEDs, and two I2C buses for sensor expansion. LoRa frequency options span 433MHz, 470-510MHz, 863-870MHz, and 902-928MHz bands with up to +22dBm transmit power and -135dBm receive sensitivity. Firmware can be flashed easily via UF2 bootloader by double-clicking the reset button, making it accessible for both beginners and advanced users building off-grid communication networks, GPS trackers, and remote IoT sensor nodes.

## Where to Buy

- [Heltec Official](https://openhardware.directory/r?to=https%3A%2F%2Fheltec.org%2Fproject%2Fmesh-node-t114%2F&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export) — 17.90
- [Rokland](https://openhardware.directory/r?to=https%3A%2F%2Fstore.rokland.com%2Fproducts%2Fheltec-mesh-node-t114-with-optional-1-14-inch-tft-display&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export) — 22.99
- [Amazon](https://openhardware.directory/r?to=https%3A%2F%2Fwww.amazon.com%2FHeltec-Positioning-Screen-GNSS-Case%2Fdp%2FB0DDLD3VG8&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export) — 33.70

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fheltec.org%2Fproject%2Fmesh-node-t114%2F&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FHelTecAutomation%2FHeltec_nRF52&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.heltec.org%2Fen%2Fnode%2Fnrf%2Fmesh_node_t114%2Findex.html&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FMesh_Node_T114%2FDatasheet.pdf&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)
- [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FMesh_Node_T114%2FMeshNode-T114_V2.0_SCH%282%29.pdf&ref=openhardware.directory&product=heltec-mesh-node-t114&source=md-export)

## Tags

`meshtastic`, `lora`, `nrf52840`, `mesh-networking`, `gps-tracker`, `low-power`, `ble`

## Images

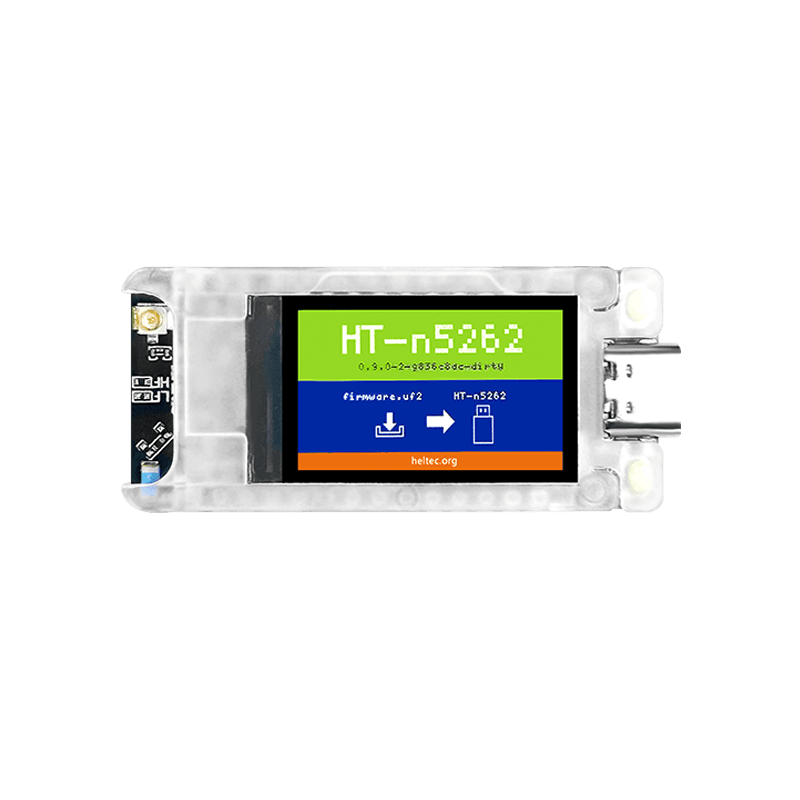

![Heltec Mesh Node T114](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-mesh-node-t114/a6e4a4246661.png)
![Heltec Mesh Node T114](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-mesh-node-t114/13fd1ad74fde.png)
![Heltec Mesh Node T114](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-mesh-node-t114/473ee51d4029.png)
![Heltec Mesh Node T114](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-mesh-node-t114/40b21683955f.png)
![Heltec Mesh Node T114](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-mesh-node-t114/cc7ed71cb58a.png)
![Heltec Mesh Node T114](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-mesh-node-t114/47344bc98dd1.png)

> **Battery Powered:** LiPo 3.7V

---
