Meshtastic Wearable Node on T-Watch S3
Flash the LILYGO T-Watch S3 with Meshtastic firmware to create a wrist-worn LoRa mesh networking node with touchscreen control, making it one of the few true wearable Meshtastic devices available.
Overview

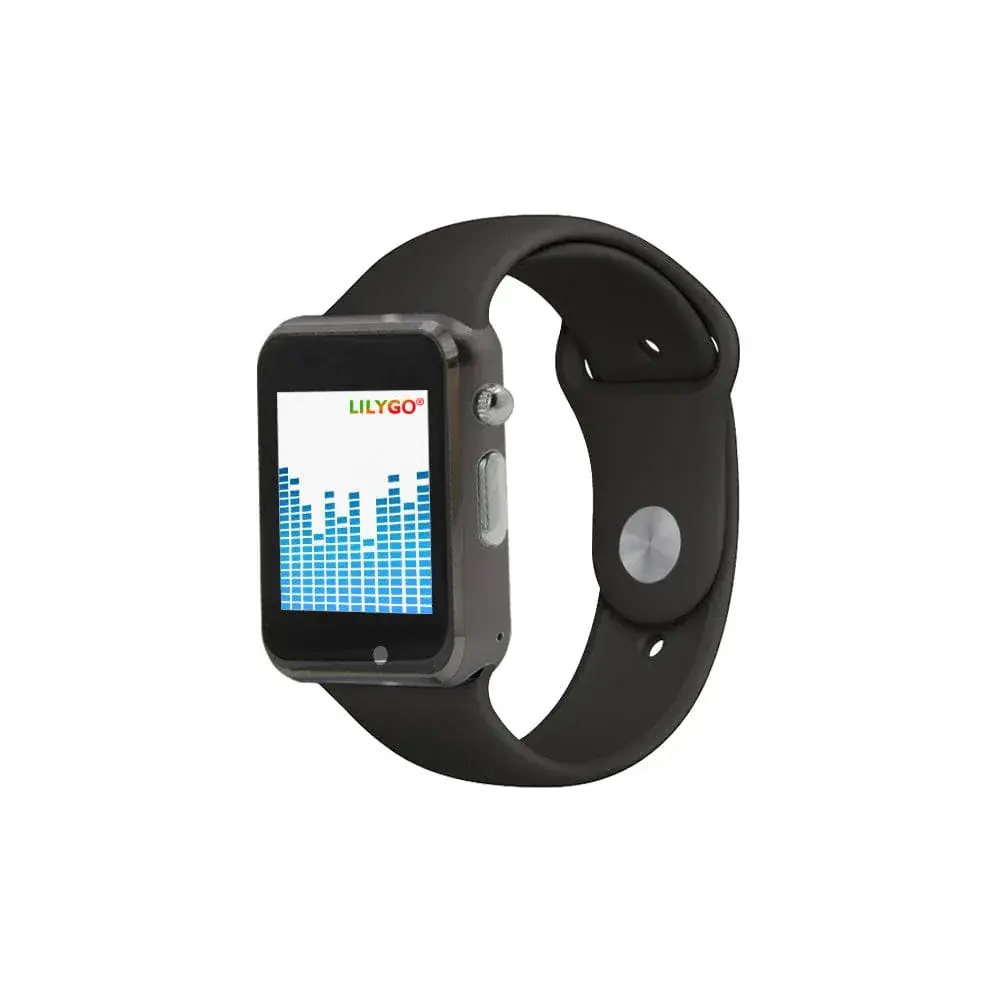

The LILYGO T-Watch S3 is one of the few commercial smartwatch platforms capable of running Meshtastic firmware, making it a uniquely wearable entry point into LoRa mesh networking. This project guides users through flashing the T-Watch S3 with Meshtastic and pairing it with the iOS or Android Meshtastic app to join or extend a local mesh network — all from a device worn on the wrist.
Hardware Highlights
The T-Watch S3 packs an ESP32-S3 dual-core processor, an SX1262 LoRa radio (915 MHz in the US), a 1.54-inch 240×240 IPS LCD touchscreen, haptic feedback motor, microphone, speaker, three-axis accelerometer, and a real-time clock — all in a wristwatch form factor. Battery life is adequate for day-long mesh networking use.
How to Flash
Meshtastic firmware for the T-Watch S3 is available through the official Meshtastic web flasher at flasher.meshtastic.org. The process involves opening the watch, disconnecting the battery briefly to enter bootloader mode, then flashing via USB-C. Post-flash configuration is done through the Meshtastic mobile app over Bluetooth. The T-Watch S3 is classified as a community-supported device by the Meshtastic project, meaning it works but may receive slightly less attention than primary supported devices.
Use Cases
Worn on the wrist, the T-Watch S3 running Meshtastic provides hands-free mesh node capability for outdoor events, hiking groups, festivals, and emergency preparedness scenarios where carrying a dedicated handheld isn't practical.
