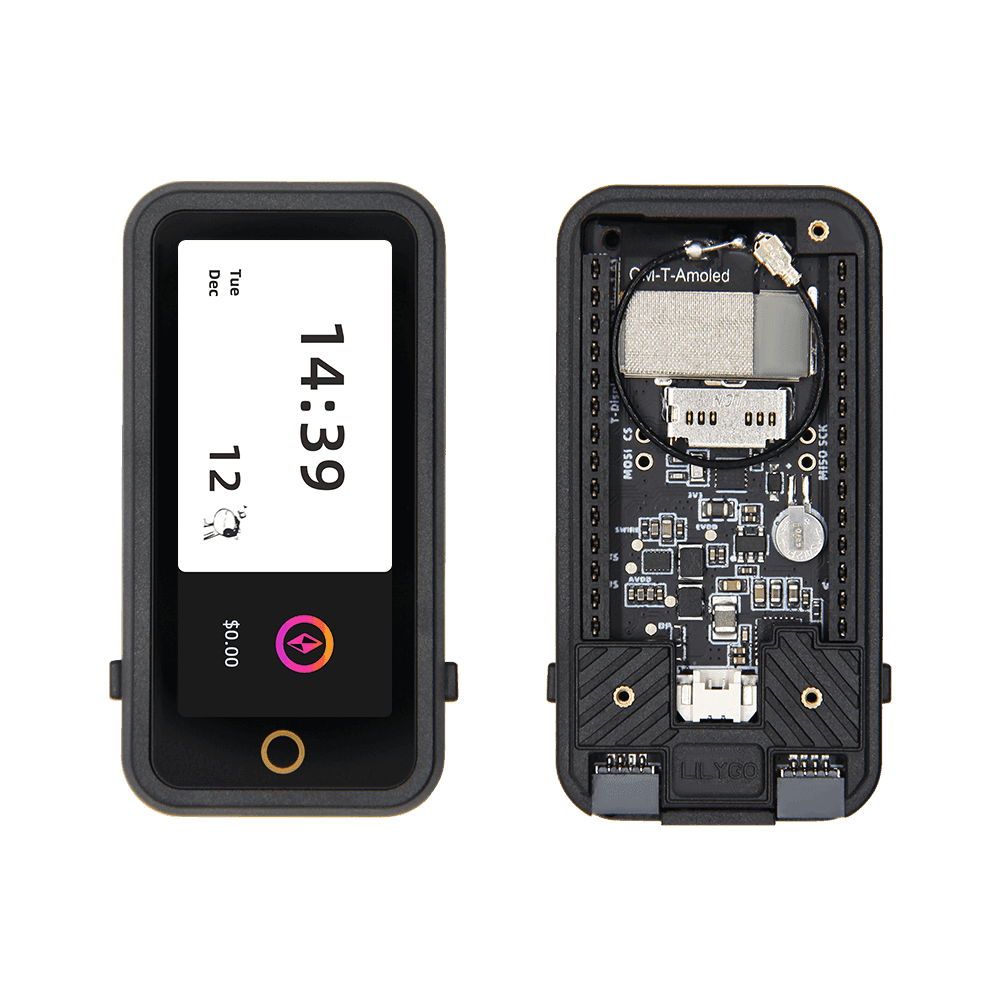

LILYGO T-Display S3 AMOLED Plus
Enhanced ESP32-S3 AMOLED development board with 1.91" RM67162 display, onboard RTC, PMU, SD card slot, capacitive touch, metal shielding, and external FPC antenna.
$32.68
Tap any value to browse matching devices
Specifications
Components
1.91-inch AMOLED display driver IC with SPI interface, 240×536 resolution, capacitive touch, IPS full viewing angle
Bus Interfaces
Overview
The LILYGO T-Display S3 AMOLED Plus is an upgraded version of the T-Display S3 AMOLED, adding a comprehensive feature set for production-grade IoT applications. It integrates a 1.91-inch RM67162 AMOLED display (240×536 resolution) with capacitive touch support, an onboard Real-Time Clock (RTC), Power Management Unit (PMU), TF card slot for expandable storage, and a battery holder for standalone operation. The metal shielding cover improves EMI performance, while the external FPC antenna enhances Wi-Fi and Bluetooth range. Based on the ESP32-S3R8 with 16MB Flash and 8MB PSRAM, it is compatible with Arduino, PlatformIO, and MicroPython, making it suitable for data-logging devices, portable HMI panels, and IoT gateways.
Use Cases
5IoT Sensor Display
Display board for visualizing sensor data from IoT devices, home automation, and weather stations.
Data Logging
Recording time-stamped sensor readings, environmental data, or system events to local storage.
Smart Home Dashboard
Wall-mounted or tabletop display showing Home Assistant dashboards, sensor readings, and smart home controls.
Portable Device
Battery-powered portable device for field use, data collection, or handheld applications.
HMI Panel
Human-machine interface panel with touchscreen for industrial or home control applications.
