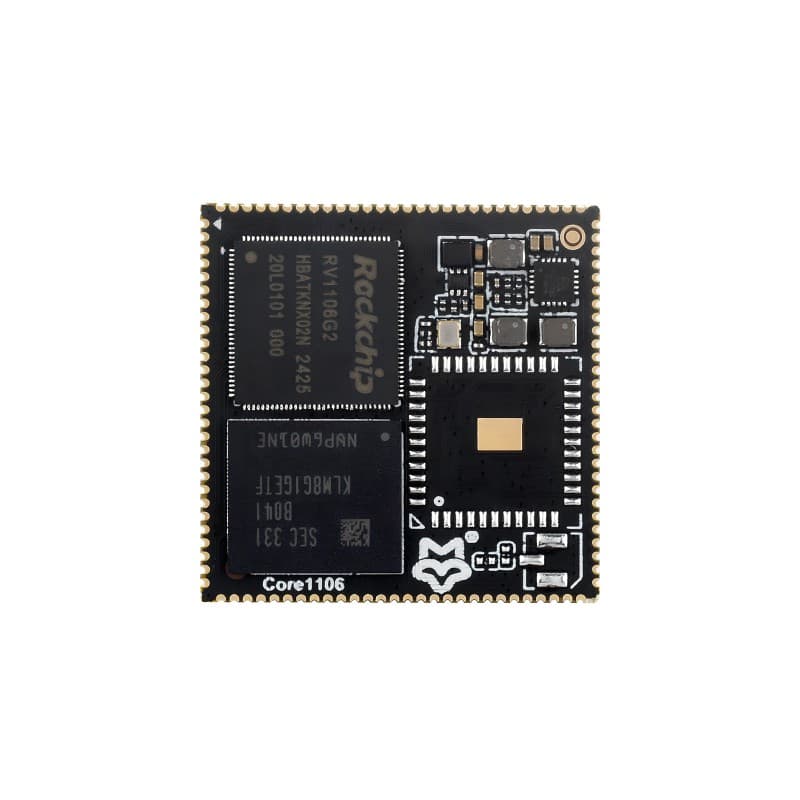

# LuckFox Core1106

> Compact 30x30mm Rockchip RV1106 compute module with ARM Cortex-A7, up to 1 TOPS NPU, 5MP ISP, 256MB DDR3L, 8GB eMMC, optional WiFi 6 and BLE 5.2, dual MIPI CSI camera inputs, and 112 castellated holes. Designed for vision AI and IoT integration.

## Quick Facts

- **Brand:** LuckFox
- **Board Type:** module
- **Price:** ~$31.99
- **CPU:** ARM Cortex-A7 @ 1.2GHz + RISC-V MCU, up to 1 TOPS NPU, ISP 3.2
- **CPU Architecture:** ARM Cortex-A7
- **CPU Cores:** 1
- **RAM:** 256MB DDR3L
- **Flash:** 8GB eMMC 5.1
- **Power:** 3.3V via carrier board
- **Operating Voltage:** 3.3V
- **Dimensions:** 30 × 30mm
- **Antenna:** IPEX 1.0 (WiFi variant)

## Connectivity

- **Wifi:** 802.11ax (WiFi 6)
- **Bluetooth:** Bluetooth 5.2
- **Ethernet:** 10/100 Mbps

## Use Cases

- system-on-module
- edge-ai
- nvr-ip-camera
- iot

## Components

- **RV1106** (soc): Rockchip RV1106 SoC with ARM Cortex-A7 @ 1.2GHz, RISC-V MCU, up to 1 TOPS NPU (INT4/INT8/INT16), ISP 3.2 for 5MP@30fps, H.264/H.265 encoding, integrated audio codec and Ethernet PHY. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Frockchips.net%2Fwp-content%2Fuploads%2F2025%2F03%2FRockchip-RV1106-Datasheet-V1.7-20231218.pdf&ref=openhardware.directory&product=waveshare-luckfox-core1106&source=md-export)

## Description

## Overview

The LuckFox Core1106 is a 30x30mm system-on-module built around the Rockchip RV1106 SoC, designed for integration into custom products requiring AI vision and IoT capabilities. Available in four variants combining two SoC options (RV1106G2 with 128MB DDR3L and 0.5 TOPS NPU, or RV1106G3 with 256MB DDR3L and 1 TOPS NPU) with optional WiFi 6 and Bluetooth 5.2 wireless connectivity.

The module features a rich peripheral set exposed through 112 castellated holes: dual MIPI CSI camera interfaces (2x 2-lane or 1x 4-lane), parallel RGB 18-bit display output, 6 UART channels, 5 I2C buses, 2 SPI interfaces, 3 I2S audio channels, 12 PWM outputs, 2 ADC channels, dual-channel analog microphone input, and audio line output. The integrated ISP 3.2 supports 5-megapixel camera sensors at 30fps with hardware-accelerated H.264/H.265 encoding.

With 8GB eMMC 5.1 storage, integrated 10/100M Ethernet PHY, USB 2.0 Host/Device, and a 3-channel PMIC for power management, the Core1106 provides a complete compute subsystem for camera-based monitoring, AI inference at the edge, smart home devices, and industrial vision systems. The module supports Buildroot and Ubuntu Linux with the LuckFox SDK.
