# LuckFox Core3576 Module

> Rockchip RK3576 SO-DIMM compute module with octa-core A72+A53, 6 TOPS NPU, Mali G52 GPU, up to 8GB LPDDR4X, 64GB eMMC, triple display output (HDMI 2.1 + eDP + MIPI DSI), triple camera input, dual Gigabit Ethernet, PCIe 2.1, and 260-pin connector. Module-only for custom carrier board integration.

## Quick Facts

- **Brand:** LuckFox
- **Board Type:** module
- **Price:** ~$104.99
- **CPU:** ARM Cortex-A72 4x @ 2.2GHz + Cortex-A53 4x @ 1.8GHz, Mali G52 GPU, 6 TOPS NPU
- **CPU Architecture:** ARM Cortex-A72/A53
- **CPU Cores:** 8
- **RAM:** 4GB LPDDR4X
- **Flash:** 32GB eMMC
- **Power:** 5V DC
- **Operating Voltage:** 3.3V
- **Dimensions:** 69.6 × 45mm

## Connectivity

- **Wifi:** WiFi 6 (802.11ax) 2.4/5GHz
- **Bluetooth:** Bluetooth 5.2
- **Ethernet:** 2x Gigabit

## Use Cases

- system-on-module
- edge-ai
- digital-signage
- industrial-control

## Components

- **RK3576** (soc): Rockchip RK3576 8nm SoC with 4x Cortex-A72 @ 2.2GHz + 4x Cortex-A53 @ 1.8GHz, Mali G52 MC3 GPU, 6 TOPS NPU, 16MP ISP, triple display output, triple camera input. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FOmni3576%2FPDF%2FRockchip_RK3576_Datasheet_V1.1-20240430.pdf&ref=openhardware.directory&product=waveshare-luckfox-core3576-module&source=md-export)

## Description

## Overview

The LuckFox Core3576 Module is a 69.6 x 45mm SO-DIMM compute module powered by the Rockchip RK3576 SoC, providing the same octa-core processing power as the Omni3576 development board in a standalone module form factor designed for integration into custom carrier boards. It features four Cortex-A72 cores at 2.2GHz paired with four Cortex-A53 cores at 1.8GHz, an ARM Mali G52 GPU at 800MHz, and a 6 TOPS NPU supporting multiple quantization formats for AI inference.

The module exposes an extensive peripheral set through its 260-pin SO-DIMM connector: triple simultaneous display outputs (HDMI 2.1 at 4K@120fps, eDP 1.3 at 4K@60fps, and 4-lane MIPI DSI at 2K@60fps), triple MIPI CSI camera inputs (2x DPHY + 1x D/CPHY), dual Gigabit Ethernet, USB 3.2 Gen 1 with DisplayPort alt mode, dual PCIe 2.1/SATA 3.1 lanes, and a comprehensive bus interface set including 12 UARTs, 10 I2C, 5 SPI, 2 CAN FD, 8-channel SAR ADC, and 2 SDIO 3.0 interfaces.

Available with 4GB or 8GB LPDDR4X RAM and 0/32/64GB eMMC storage options, the Core3576 module supports Debian, Ubuntu, Android 14, and Buildroot. It is ideal for product developers building edge AI appliances, multi-display digital signage, industrial vision systems, or automotive infotainment platforms who need a powerful compute core in a standardized SO-DIMM form factor.

## Where to Buy

- [Waveshare](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fluckfox%2Fboards-modules%2Fcore3576-module.htm&ref=openhardware.directory&product=waveshare-luckfox-core3576-module&source=md-export) — 104.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fluckfox%2Fboards-modules%2Fcore3576-module.htm&ref=openhardware.directory&product=waveshare-luckfox-core3576-module&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH&ref=openhardware.directory&product=waveshare-luckfox-core3576-module&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Omni3576%2FLuckfox-Omni3576-quick-start&ref=openhardware.directory&product=waveshare-luckfox-core3576-module&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FOmni3576%2FPDF%2FRockchip_RK3576_Datasheet_V1.1-20240430.pdf&ref=openhardware.directory&product=waveshare-luckfox-core3576-module&source=md-export)

## Images

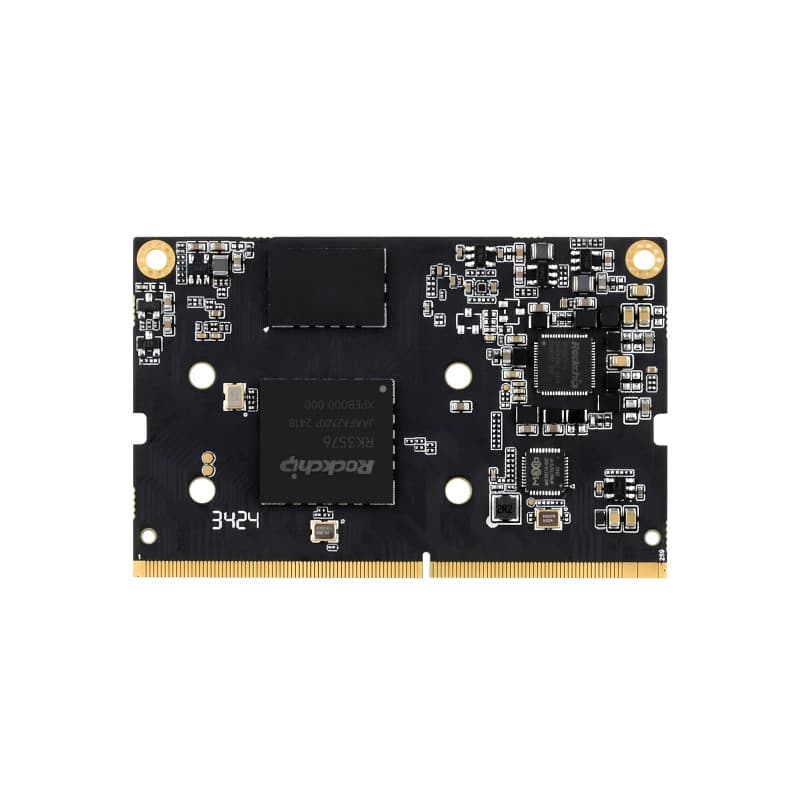

![LuckFox Core3576 Module](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-core3576-module/ecbe7a8417a7.jpg)
![LuckFox Core3576 Module](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-core3576-module/bb535b4655e6.jpg)
![LuckFox Core3576 Module](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-core3576-module/1a5f881cde7f.jpg)

---
