# LILYGO T-Higrow

> ESP32 plant sensor board with capacitive soil moisture, soil fertility, BH1750 light sensor, and DHT11/BME280 temperature/humidity — WiFi-connected smart plant care for gardens and greenhouses.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** dev-board
- **Price:** ~$9.31
- **Product Readiness:** developer
- **CPU:** Xtensa LX6 dual-core @ 240MHz, FPU, HW crypto (AES/SHA/RSA)
- **CPU Architecture:** Xtensa LX6
- **CPU Cores:** 2
- **RAM:** 520KB SRAM
- **Flash:** 4MB
- **USB:** Micro-USB
- **Power:** 5V + LiPo
- **Operating Voltage:** 3.3V
- **Battery:** 200mAh
- **Antenna:** Built-in PCB antenna

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 4.2

## Open Source

- **Firmware:** Yes
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

arduino, micropython, esphome, platformio

## Use Cases

- plant-monitoring
- greenhouse-automation
- environmental-monitoring
- smart-home
- iot

## Components

- **ESP32-D0WDQ6** (mcu): Espressif ESP32-D0WDQ6 dual-core Xtensa LX6 at 240MHz with WiFi and Bluetooth 4.2/BLE. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-higrow&source=md-export)
- **BH1750** (sensor): ROHM BH1750 I2C ambient light sensor with 1–65535 lux range for plant light-cycle monitoring. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2Fdatasheet%2F2%2F348%2Fbh1750fvi-e-186247.pdf&ref=openhardware.directory&product=lilygo-t-higrow&source=md-export)
- **DHT11** (sensor): AOSONG DHT11 digital temperature and humidity sensor (±2°C, ±5% RH) for environmental monitoring. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2Fdatasheet%2F2%2F758%2FDHT11-Technical-Data-Sheet-Translated-Version-1143054.pdf&ref=openhardware.directory&product=lilygo-t-higrow&source=md-export)

## Protocols

- **I2C**: SDA: GPIO25, SCL: GPIO26
- **UART**: TX: GPIO1, RX: GPIO3

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO25 | I2C SDA (BH1750) | I2C | digital-input, digital-output, dac |
| GPIO26 | I2C SCL (BH1750) | I2C | digital-input, digital-output, dac |
| GPIO32 | Soil Moisture ADC | ADC | digital-input, adc, rtc |
| GPIO33 | Soil Fertility ADC | ADC | digital-input, adc, rtc |
| GPIO0 | Boot / Free GPIO | GPIO | digital-input, strapping |
| GPIO34 | DHT11 / BME280 Data | GPIO | digital-input, adc, input-only |

## Description

## Overview

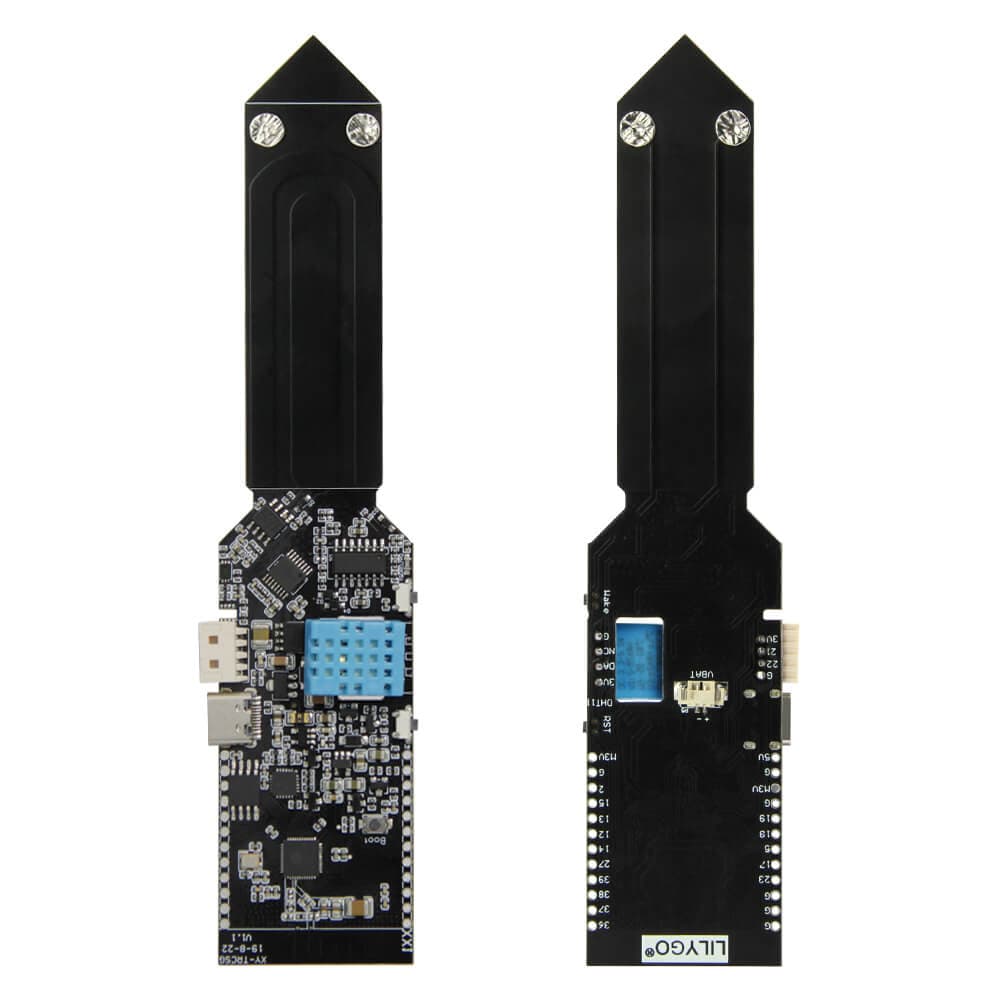

The LILYGO T-Higrow is a purpose-built plant monitoring board combining an Espressif ESP32 with a suite of agricultural sensors on a single PCB with a probe tip for direct soil insertion. The capacitive soil moisture sensor avoids the corrosion issues of resistive alternatives, and a dedicated soil fertility/conductivity sensor measures nutrient concentration in the growing medium.

Environmental conditions are captured by either a DHT11 (temperature + humidity) or BME280 (temperature, humidity, and barometric pressure) sensor depending on the variant. A BH1750 I2C light intensity sensor covers 1–65535 lux, enabling light-cycle monitoring for indoor grow systems. The onboard WiFi 802.11 b/g/n allows real-time data reporting to Home Assistant via MQTT, ESPHome, or ThingSpeak.

Kit variants include a 200mAh LiPo battery for cable-free operation. With Arduino IDE and MicroPython support and an active GitHub repository, the T-Higrow is a ready-to-deploy soil sensor for smart gardens, greenhouses, and precision agriculture projects.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-higrow&ref=openhardware.directory&product=lilygo-t-higrow&source=md-export) — $9.31

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-higrow&ref=openhardware.directory&product=lilygo-t-higrow&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FTTGO-HiGrow&ref=openhardware.directory&product=lilygo-t-higrow&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.lilygo.cc&ref=openhardware.directory&product=lilygo-t-higrow&source=md-export)

## Tags

`esp32`, `soil-sensor`, `plant`, `agriculture`, `lilygo`, `dht11`, `bme280`, `bh1750`, `wifi`, `esphome`

## Images

![LILYGO T-Higrow](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-higrow/d7929e859b89.jpg)
![LILYGO T-Higrow](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-higrow/7eafbb49b757.jpg)
![LILYGO T-Higrow](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-higrow/1850b5c01fae.jpg)
![LILYGO T-Higrow](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-higrow/4a73c73392a5.jpg)
![LILYGO T-Higrow](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-higrow/241d2e662878.jpg)
![LILYGO T-Higrow](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-higrow/6d2138aa2b3a.jpg)
![LILYGO T-Higrow](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-higrow/24a4ddba7cd9.jpg)
![LILYGO T-Higrow](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-higrow/79fcf286e982.jpg)

> **Battery Powered:** Li-Po

---
