# LILYGO T-CAN485

> ESP32 development board with integrated CAN bus and RS-485 transceivers, TF card, WiFi, and BLE for industrial IoT, Modbus, and automotive OBD-II applications with 5–12V wide-range power input.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** dev-board
- **Price:** ~$11.86
- **Product Readiness:** developer
- **CPU:** Xtensa LX6 dual-core @ 240MHz
- **CPU Architecture:** Xtensa LX6
- **CPU Cores:** 2
- **RAM:** 520KB SRAM
- **Flash:** 4MB
- **USB:** USB-C
- **Power:** 5-12V DC
- **Operating Voltage:** 3.3V
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 4.2

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Certifications

CE, FCC

## Compatible Firmware

arduino, esp-idf, esphome, micropython

## Use Cases

- industrial-automation
- home-automation
- iot-prototyping

## Components

- **ESP32-WROOM-32** (mcu): Xtensa LX6 dual-core at 240MHz with 4MB flash, WiFi 802.11 b/g/n, Bluetooth 4.2 Classic + BLE. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-wroom-32_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-can485&source=md-export)

## Protocols

- **CAN**: TX: GPIO5, RX: GPIO4
- **RS-485**: TX: GPIO17, RX: GPIO16, EN: GPIO21
- **SPI**: CLK: GPIO18, MOSI: GPIO23, MISO: GPIO19
- **I2C**: SDA: GPIO21, SCL: GPIO22
- **UART**: TX: GPIO1, RX: GPIO3

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO5 | CAN TX | CAN | digital-output |
| GPIO4 | CAN RX | CAN | digital-input |
| GPIO17 | RS-485 TX | RS-485 | digital-output |
| GPIO16 | RS-485 RX | RS-485 | digital-input |

## Description

## Overview

The LILYGO T-CAN485 combines an ESP32 with two critical industrial communication protocols: CAN bus and RS-485. This enables direct integration with automotive OBD-II systems, industrial Modbus networks, BMS battery management systems, and factory automation equipment — all accessible via WiFi and Bluetooth from a single $12 board.

The onboard CAN transceiver connects directly to the ESP32's TWAI (Two-Wire Automotive Interface) peripheral, while the RS-485 transceiver uses hardware flow-control for reliable half-duplex serial communication over long cable runs. The wide 5–12V power input range supports direct connection to automotive 12V systems or industrial DIN-rail power supplies without additional regulators.

A microSD card slot enables local data logging of CAN bus traffic or Modbus register histories. ESPHome support allows this board to serve as a Modbus RTU-to-MQTT bridge for Home Assistant, connecting legacy industrial equipment to modern smart home systems.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-can485&ref=openhardware.directory&product=lilygo-t-can485&source=md-export) — $11.86

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-can485&ref=openhardware.directory&product=lilygo-t-can485&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FT-CAN485&ref=openhardware.directory&product=lilygo-t-can485&source=md-export)

## Tags

`esp32`, `can-bus`, `rs485`, `modbus`, `industrial`, `lilygo`

## Images

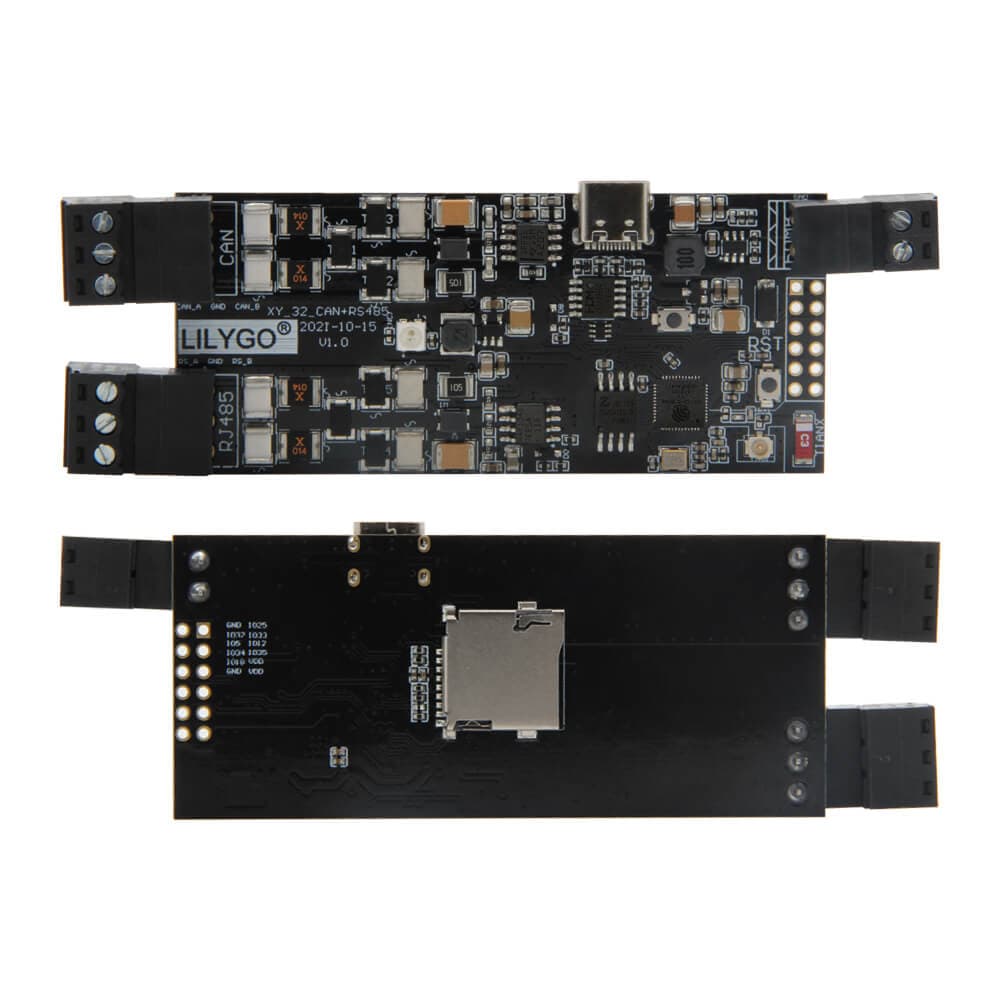

![LILYGO T-CAN485](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-can485/944ca5f24d80.jpg)
