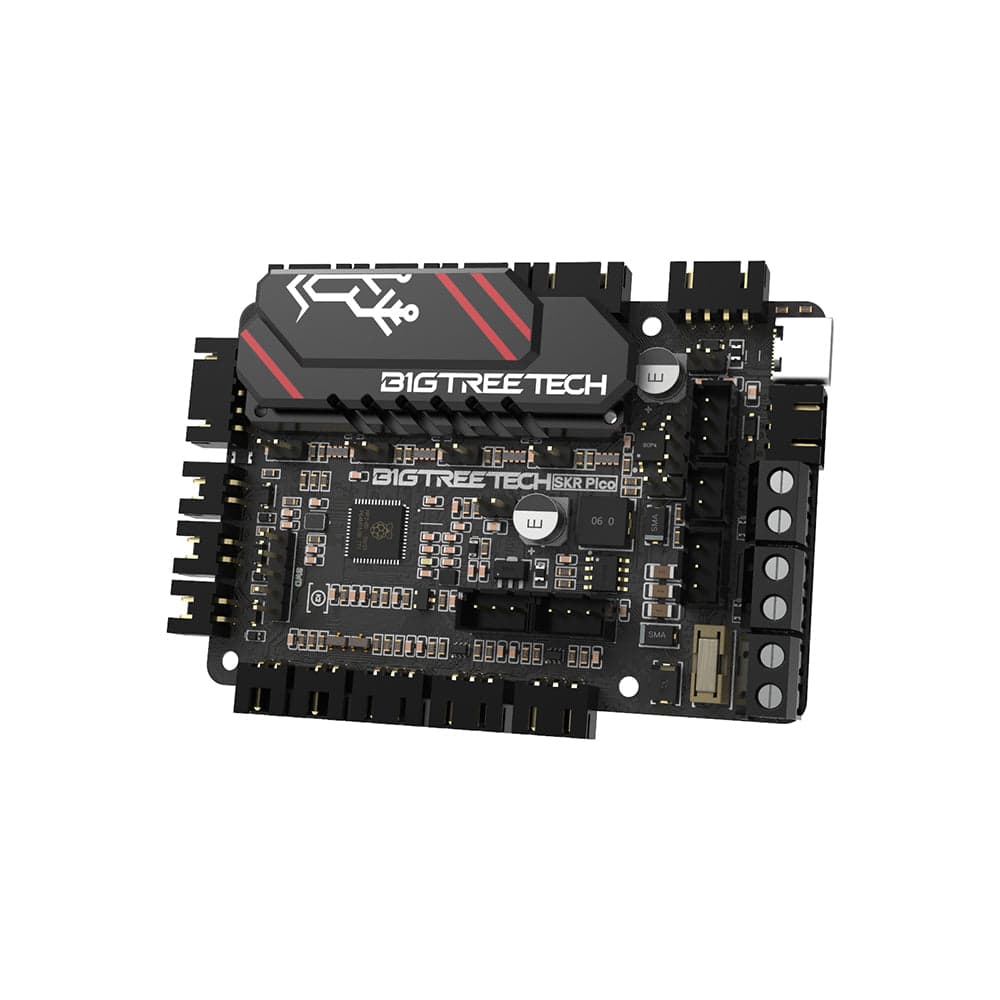

# BigTreeTech SKR Pico V1.0

> Compact 32-bit 3D printer control board powered by RP2040 @ 133MHz. Designed for Voron 0.1 and small printers. 4 TMC2209 sockets, USB-C, 12–24V input. Klipper and Marlin compatible.

## Quick Facts

- **Brand:** BigTreeTech
- **Board Type:** 3D Printer Control Board
- **Price:** ~$14.99
- **Product Readiness:** consumer
- **CPU:** RP2040
- **CPU Architecture:** ARM Cortex-M0+
- **CPU Cores:** 2
- **RAM:** 264KB
- **Flash:** 2MB (external)
- **USB:** USB Type-C
- **Power:** 12-24V DC
- **Operating Voltage:** 3.3V
- **SD Card:** MicroSD

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

Klipper, Marlin

## Use Cases

- 3D Printing

## Components

- **RP2040** (MCU): Raspberry Pi Foundation RP2040 dual-core ARM Cortex-M0+ microcontroller, 264KB SRAM, 2MB external flash, 133MHz, with programmable I/O state machines — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdatasheets.raspberrypi.com%2Frp2040%2Frp2040-datasheet.pdf&ref=openhardware.directory&product=bigtreetech-skr-pico-v1-0&source=md-export)
- **TMC2209 socket x4** (Stepper Driver Socket): 4x stepper driver sockets supporting TMC2209, TMC2208, and other popular drivers in UART/SPI mode — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.trinamic.com%2Ffileadmin%2Fassets%2FProducts%2FICs_Documents%2FTMC2209_Datasheet_V103.pdf&ref=openhardware.directory&product=bigtreetech-skr-pico-v1-0&source=md-export)
- **MicroSD slot** (Storage): MicroSD card slot for firmware and print file storage — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbtt-skr-pico-v1-0&ref=openhardware.directory&product=bigtreetech-skr-pico-v1-0&source=md-export)

## Protocols

- **UART**
- **SPI**
- **I2C**
- **USB**

## Description

The BigTreeTech SKR Pico V1.0 is an ultra-compact 3D printer control board built around the Raspberry Pi Foundation's RP2040 dual-core ARM Cortex-M0+ microcontroller running at 133MHz. It was purpose-designed for the Voron 0.1 and similarly sized small-format 3D printers, offering a highly capable 32-bit platform in an extremely small PCB footprint.

The board features 4 stepper driver sockets supporting TMC2209 and other popular drivers in UART and SPI modes. It includes 3 heater outputs (1 bed, 2 hotends), 4 thermistor inputs, 3 PWM fan outputs, and RGB LED support. The RP2040's dual-core architecture and PIO state machines make it particularly well-suited to Klipper's real-time motion control requirements.

Connectivity includes USB Type-C for host communication (Klipper/Marlin interface), a MicroSD slot, and a 40-pin Raspberry Pi compatible GPIO header for direct integration with a Pi host. The board operates on 12–24V DC input. Full hardware design files are open-source and available on GitHub, with excellent Klipper community support for Voron builds.

## Where to Buy

- [BIQU Equipment](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbtt-skr-pico-v1-0&ref=openhardware.directory&product=bigtreetech-skr-pico-v1-0&source=md-export) — $14.99

## Resources

- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FSKR-Pico&ref=openhardware.directory&product=bigtreetech-skr-pico-v1-0&source=md-export)
- [product](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbtt-skr-pico-v1-0&ref=openhardware.directory&product=bigtreetech-skr-pico-v1-0&source=md-export)

## Tags

`3d-printer`, `control-board`, `rp2040`, `klipper`, `marlin`, `bigtreetech`, `open-source`, `32-bit`, `tmc2209`, `voron`, `pico`, `compact`
