# BigTreeTech SKR Pro V1.1

> 32-bit 3D printer control board powered by STM32F407ZGT6 @ 168MHz. Supports 6 stepper drivers, triple extruder, dual Z, 12–24V input. Compatible with Marlin and Klipper firmware.

## Quick Facts

- **Brand:** BigTreeTech
- **Board Type:** 3D Printer Control Board
- **Price:** ~$29.99
- **Product Readiness:** consumer
- **CPU:** STM32F407ZGT6
- **CPU Architecture:** ARM Cortex-M4
- **CPU Cores:** 1
- **RAM:** 192KB
- **Flash:** 1MB
- **USB:** USB Type-C
- **Power:** 12-24V DC
- **Operating Voltage:** 3.3V
- **SD Card:** MicroSD

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

Marlin, Klipper

## Use Cases

- 3D Printing
- CNC
- Laser Engraving

## Components

- **STM32F407ZGT6** (MCU): STMicroelectronics 32-bit ARM Cortex-M4 microcontroller with FPU, 1MB flash, 192KB RAM, running at 168MHz — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.st.com%2Fresource%2Fen%2Fdatasheet%2Fstm32f407zg.pdf&ref=openhardware.directory&product=bigtreetech-skr-pro-v1-1&source=md-export)
- **TMC2209** (Stepper Driver Socket): TRINAMIC TMC2209 stepper driver with StealthChop2, SpreadCycle, UART interface, up to 2.8A RMS — 6 sockets on this board — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.trinamic.com%2Ffileadmin%2Fassets%2FProducts%2FICs_Documents%2FTMC2209_Datasheet_V103.pdf&ref=openhardware.directory&product=bigtreetech-skr-pro-v1-1&source=md-export)
- **MicroSD slot** (Storage): MicroSD card slot for firmware updates and standalone print file storage — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-skr-pro-v1-1-32-bit-control-board&ref=openhardware.directory&product=bigtreetech-skr-pro-v1-1&source=md-export)

## Protocols

- **UART**
- **SPI**
- **I2C**
- **USB**

## Description

The BigTreeTech SKR Pro V1.1 is a high-performance 32-bit 3D printer control board built around the STM32F407ZGT6 ARM Cortex-M4 processor running at 168MHz. It was designed by Shenzhen BIGTREE Technology to address limitations in earlier 3D printer motherboards, offering significantly more processing power, driver slots, and peripheral support than legacy 8-bit alternatives.

The board provides 6 stepper driver sockets supporting popular drivers including TMC2209, TMC2208, TMC2130, DRV8825, and A4988 in both SPI and UART modes. It features triple extruder outputs, dual Z-axis stepper ports, and a 15A heated bed MOSFET. Input voltage supports 12–24V DC, making it compatible with a wide range of 3D printer PSU configurations.

Connectivity includes USB Type-C for host communication, a MicroSD slot for firmware flashing and printing, and expansion headers for BLTouch, filament runout sensors, and display modules. The board is open-source with full schematics and PCB layouts published on GitHub, and it supports both Marlin 2.x and Klipper firmware.

## Where to Buy

- [BIQU Equipment](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-skr-pro-v1-1-32-bit-control-board&ref=openhardware.directory&product=bigtreetech-skr-pro-v1-1&source=md-export) — $29.99

## Resources

- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FBIGTREETECH-SKR-PRO-V1.1&ref=openhardware.directory&product=bigtreetech-skr-pro-v1-1&source=md-export)
- [product](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-skr-pro-v1-1-32-bit-control-board&ref=openhardware.directory&product=bigtreetech-skr-pro-v1-1&source=md-export)

## Tags

`3d-printer`, `control-board`, `stm32`, `marlin`, `klipper`, `bigtreetech`, `open-source`, `32-bit`, `tmc2209`, `stepper-driver`

## Images

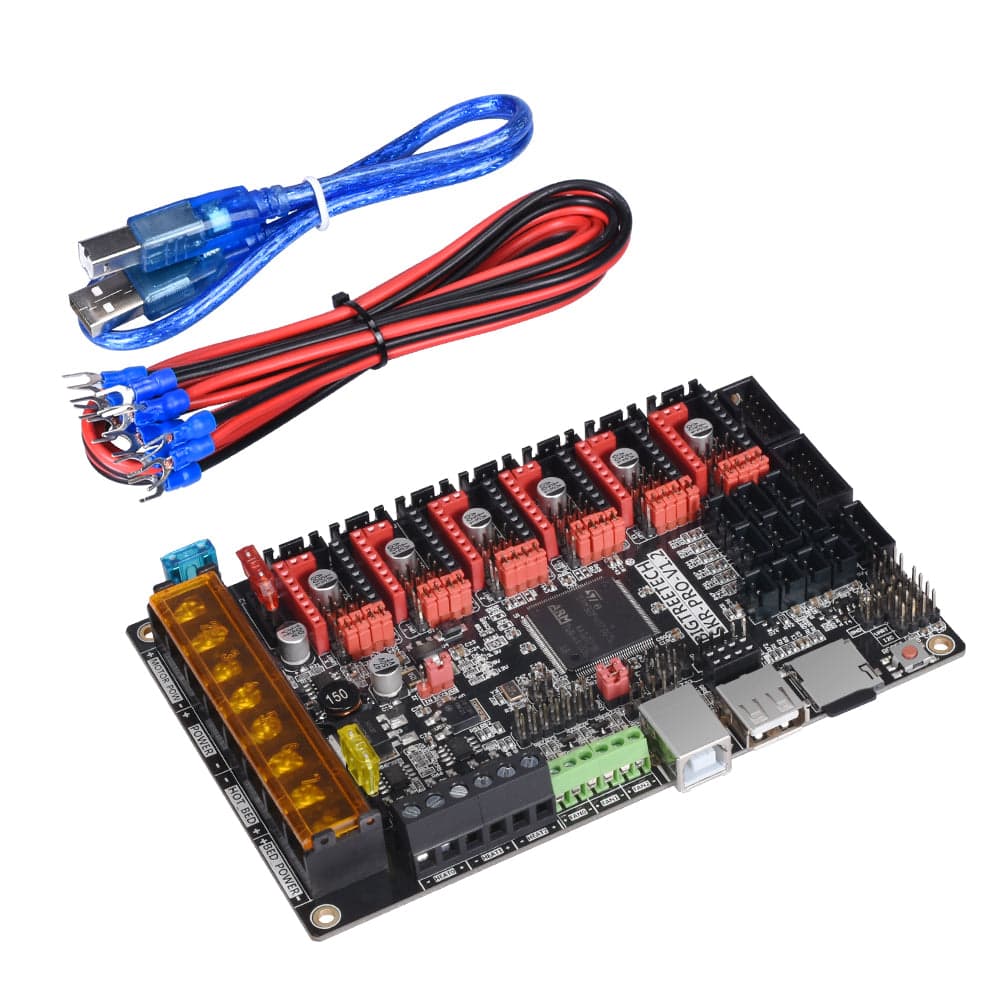

![BigTreeTech SKR Pro V1.1](https://nbg1.your-objectstorage.com/openhardware-directory/entities/bigtreetech-skr-pro-v1-1/ffd1133e022b.jpg)

---
