Olimex ESP32-C6-DevKit-Lipo
Breadboard-friendly open-source ESP32-C6 dev board with WiFi 6, Thread, Zigbee, BLE 5, built-in LiPo charger, and dual USB-C — all for under €9.
$9.50
Tap any value to browse matching devices
Specifications
Components
Espressif ESP32-C6-MINI-1-N4 module with RISC-V @ 160MHz, 4MB flash, WiFi 6, BLE 5.3, and IEEE 802.15.4 for Thread/Zigbee/Matter.
Onboard single-cell LiPo charger with battery status indicator LED.
Bus Interfaces
GPIO Map
Overview

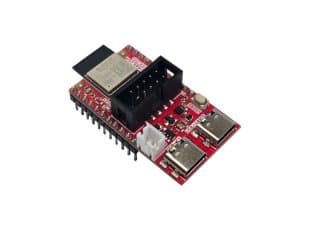

The Olimex ESP32-C6-DevKit-Lipo is a compact, breadboard-friendly open-source hardware development board built around the Espressif ESP32-C6-MINI-1-N4 module. Released under the CERN Open Hardware Licence, it provides WiFi 6, Bluetooth 5.3, Zigbee, Thread, and Matter connectivity at an affordable price point under €9.
The board features 18 GPIO pins on two 0.1" pitch headers with 0.9" row spacing — perfectly fitting a standard breadboard without blocking any columns. Two USB-C ports are provided: one connects through a serial converter for programming and debugging, while the other gives direct access to the ESP32-C6's native USB/JTAG interface.
An integrated Li-Po battery charger and connector make it suitable for battery-powered Matter and Thread sensor nodes. A user LED, battery status LED, and user/boot button round out the onboard peripherals. The UEXT connector offers an additional I2C/SPI/UART expansion interface compatible with the Olimex UEXT module ecosystem.
Full hardware design files including schematics and KiCad sources are available on GitHub, and the board is OSHW certified. It supports ESP-IDF, Arduino IDE, PlatformIO, and ESPHome.
Use Cases
7Matter Smart Home
Building Matter-compatible smart home devices that work across ecosystems like Apple Home, Google Home, and Amazon Alexa.
Matter Smart Home
Building Matter-compatible smart home devices that work across ecosystems like Apple Home, Google Home, and Amazon Alexa.
Smart Home
Home automation devices for controlling lighting, climate, security, and appliances.
Thread Mesh Network
Low-power mesh networking using Thread protocol for smart home and IoT devices.
IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
Prototyping
Rapid hardware prototyping and proof-of-concept development with breadboard-friendly form factors and accessible development environments.
Battery Powered Sensor Node
Low-power sensor nodes running on battery for wireless data collection and monitoring.
