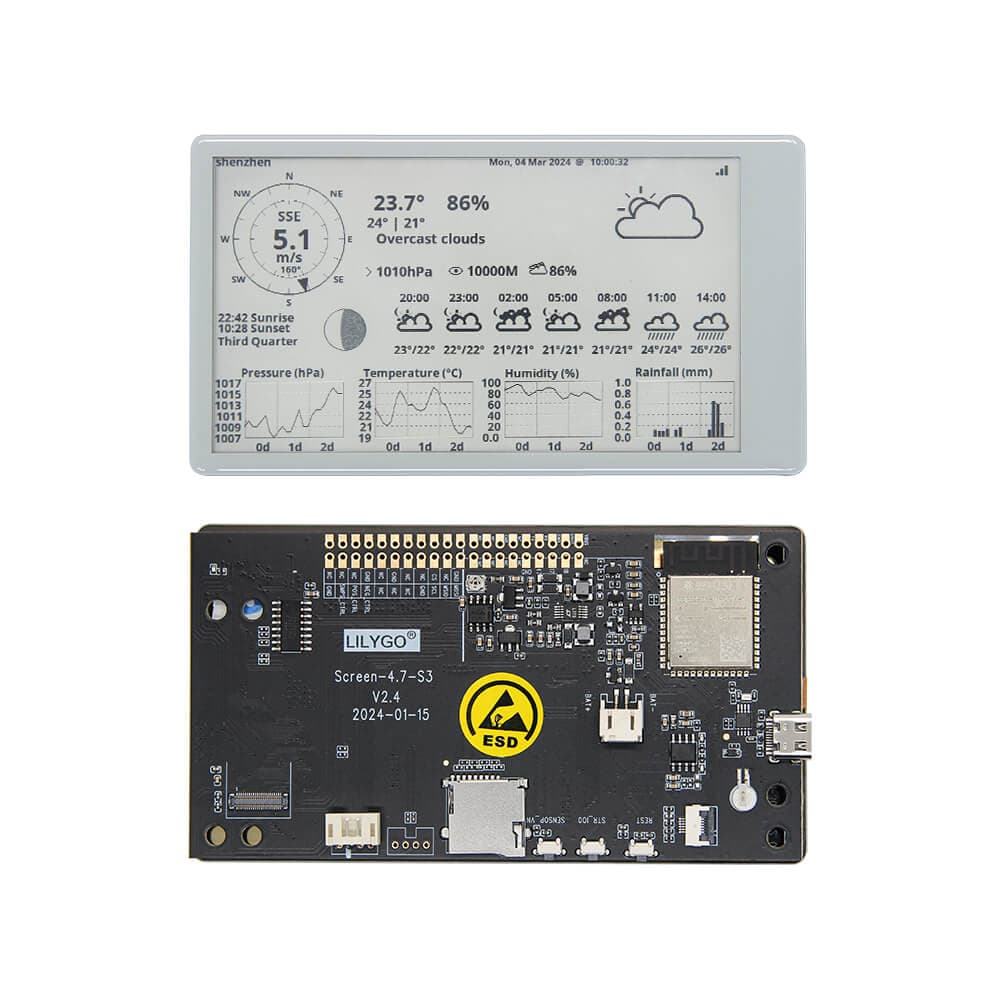

LILYGO T5 4.7-inch E-Paper V2.3
ESP32-S3 e-paper development board with 4.7-inch 540×960 16-grayscale display (EDO47TC1), Wi-Fi, Bluetooth 5.0, PCF8563 RTC, 16MB flash, 8MB PSRAM, and optional capacitive touch overlay.
$39.99
Tap any value to browse matching devices
Specifications
Components
Dual-core Xtensa LX7 at 240MHz with 16MB flash, 8MB PSRAM OPI, Wi-Fi and BLE 5.0
4.7-inch e-paper display driver IC; 540×960 resolution; 16 gray levels; ultra-wide viewing angle; low power consumption
NXP PCF8563 low-power RTC with I2C interface for timekeeping in low-power applications
Bus Interfaces
Overview
The LILYGO T5 4.7-inch E-Paper V2.3 is an updated e-paper development board featuring a large 4.7-inch electrophoretic display driven by the EDO47TC1 controller at 540×960 resolution with 16 gray levels. Powered by an ESP32-S3 with 16MB flash and 8MB PSRAM, it includes a PCF8563 RTC for timekeeping and battery capacity detection for portable operation. An optional capacitive touch overlay with L58 touch chip enables interactive e-paper applications. The board is compatible with Arduino IDE and the LilyGo-EPD47 library. Note: partial refreshes should be avoided to prevent display burn-in—full refresh is recommended for all updates.
Use Cases
4E-Paper Display
Applications using e-paper (e-ink) displays for low-power information panels and dashboards.
Digital Signage
Driving displays for advertising, information kiosks, or menu boards with 4K video and dynamic content.
Smart Home Dashboard
Wall-mounted or tabletop display showing Home Assistant dashboards, sensor readings, and smart home controls.
Low-Power IoT
Ultra-low-power IoT sensor nodes using deep sleep and wake cycles for long battery life.
