T5 E-Paper S3 Pro UI — Weather & LoRa Dashboard
A feature-rich UI for the LILYGO T5 E-Paper S3 Pro combining weather display, LoRa SX1262 radio, touch navigation, and MagSafe charging support on a 4.7" 16-gray e-paper screen.
Overview

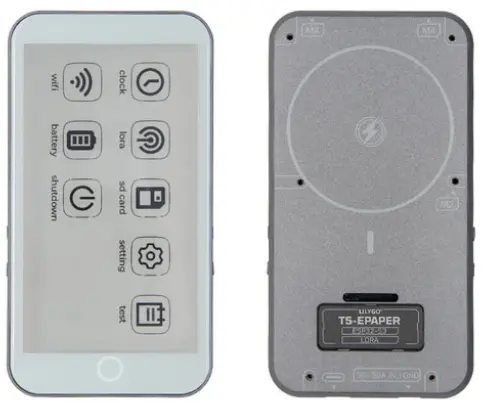

This is the official UI firmware written for the LILYGO T5 E-Paper S3 Pro (model H752), targeting the LilyGo-EPD47-S3 project. The board combines an ESP32-S3-WROOM-1, 4.7-inch 16-gray e-paper display (960×540), SX1262 LoRa radio, capacitive touch, GPS connector, and MagSafe wireless charging.
The firmware provides a multi-panel UI with weather display, LoRa send/receive test, sensor reading, and display test capabilities, all rendered in smooth 16-level grayscale on the large e-paper panel.
Features
- 4.7" 16-gray e-paper display (960×540 resolution)
- LoRa P2P send/receive (SX1262, 868/915 MHz)
- GPS support (MIA-M10Q / L76K connector)
- Capacitive touch screen navigation
- MagSafe-compatible wireless charging
- PlatformIO / ESP-IDF based build
- Multiple example sketches: LoRa TX/RX, GPS, display, sensors
Hardware
- LILYGO T5 E-Paper S3 Pro (ESP32-S3, 16 MB Flash, 8 MB PSRAM)
- SX1262 LoRa transceiver (868/915 MHz)
- 4.7" ED047 e-paper panel with capacitive touch
- Built-in battery connector + MagSafe charging
Build
Open in VS Code with PlatformIO. Select the board from platformio.ini, then build and upload. Multiple example targets are available for LoRa, GPS, display, and sensor testing.
