Build Guideintermediate

E-Paper Smart Home Informer for Home Assistant

Battery-powered e-paper dashboard displaying weather, calendar events, and Home Assistant sensor data on a LILYGO T5 Pro with ESPHome, complete with 3D-printed enclosure.

Visit Project

Boards:ESP32-S3

Firmware:ESPHomeHome Assistant

Use Cases:Display & DashboardHome AutomationE-Paper & Signage

GitHub

Overview

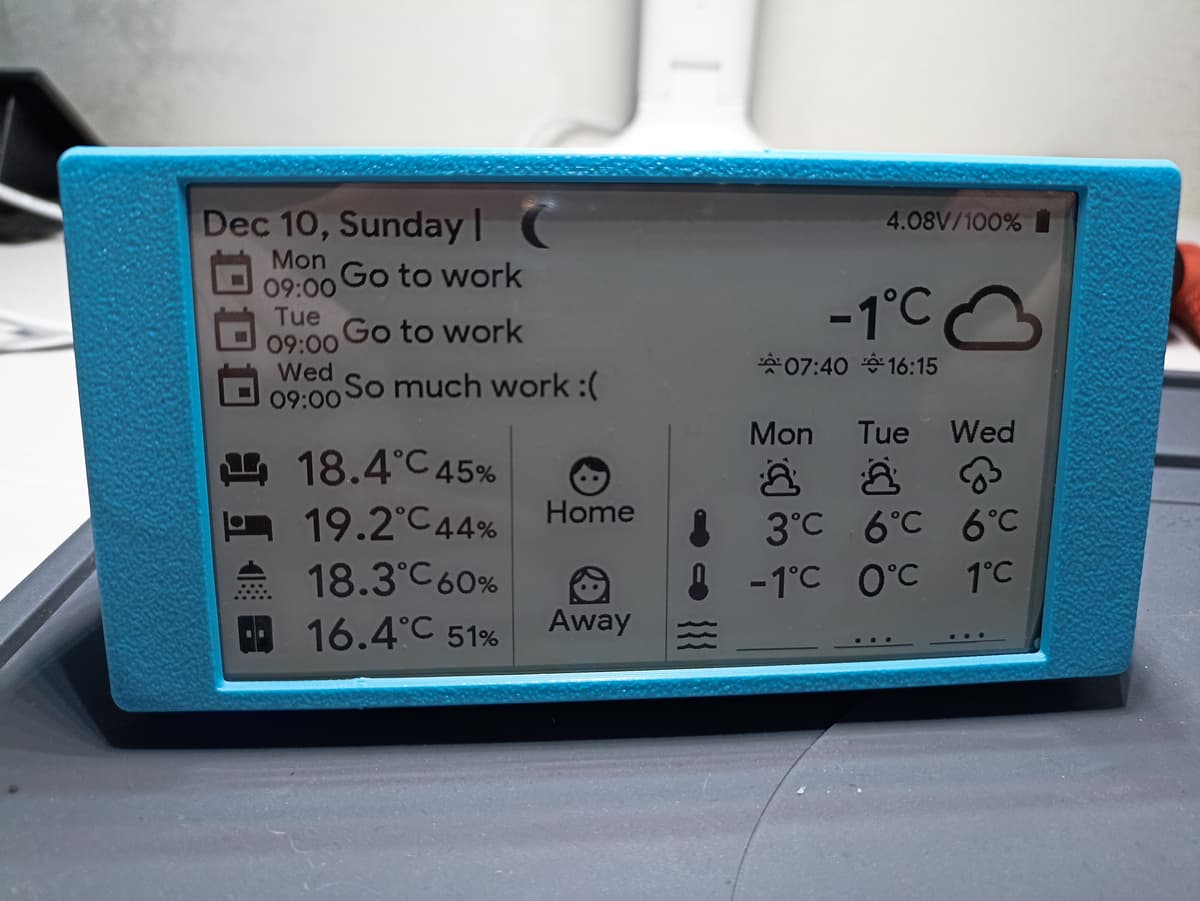

This project transforms the LILYGO T5 Pro into a sleek, battery-powered smart home information display. Using ESPHome firmware and Home Assistant integration, the device shows real-time weather forecasts, upcoming calendar events, and task lists on its 4.7-inch e-paper screen. The ultra-low power e-ink display means the device can run for extended periods on a single 18650 battery charge.

The project includes a custom 3D-printed PLA enclosure with bronze heated inserts, designed specifically for the T5 Pro board and an 18650 battery holder. The ESPHome YAML configuration handles display rendering with custom fonts and icon mappings, pulling data from Home Assistant template sensors. Deep sleep mode is used between updates to maximize battery life.

Resources

GitHub Repository

Source code & project files

Devices Used in This Project

LILYGO T5 E-Paper S3 Pro Lite

Dev Board

A pocket-sized ESP32-S3 development board with a 4.7-inch capacitive touchscreen e-paper display (960×540, 16 grayscale), anti-glare glass, warm-toned backlight, MagSafe wireless charging, and comprehensive battery management.

Xtensa LX7 dual-core @ 240MHz, FPU, AI vector extensions, HW crypto (AES/SHA/RSA)512KB SRAM16MBWiFi 802.11 b/g/nBLE BLE 5.0

E Reader Smart Home Dashboard Weather Display Digital Signage Digital Photo Frame

~$71View
