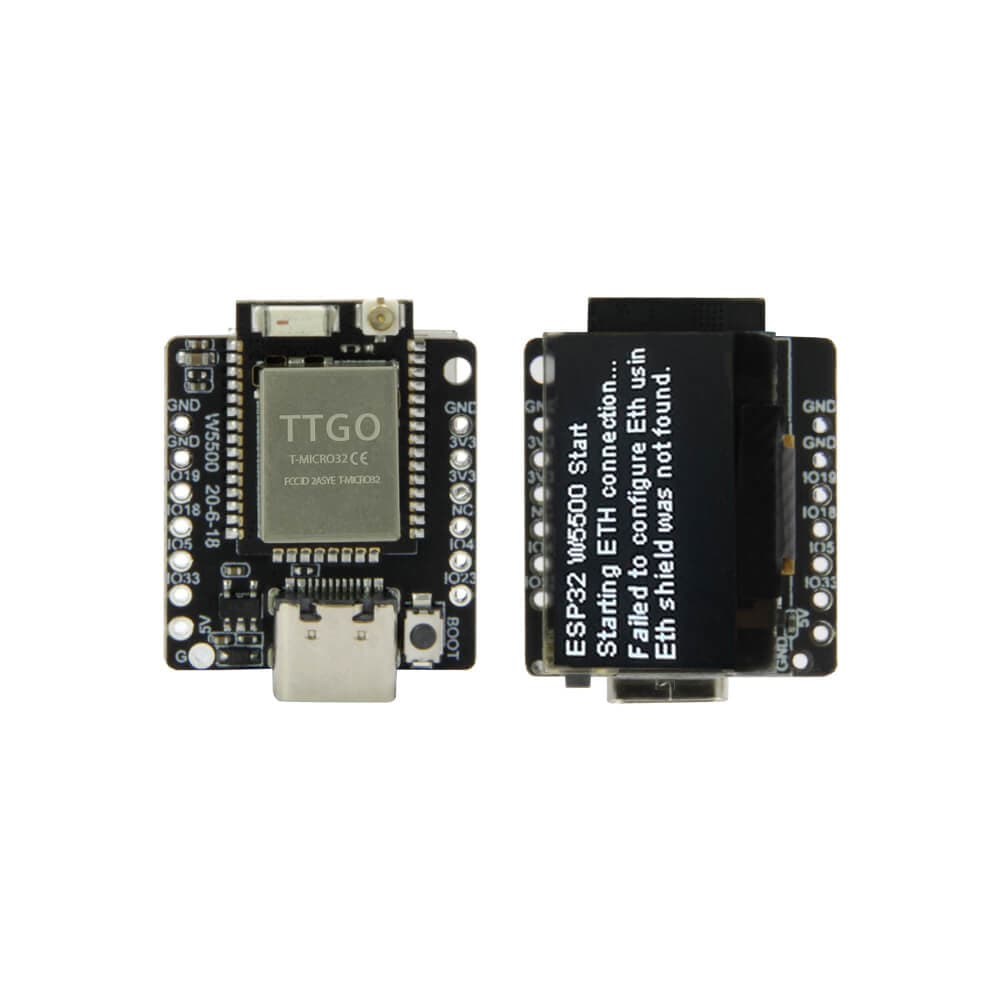

LILYGO T-Lite W5500
Ultra-compact ESP32 development board with W5500 SPI Ethernet, 0.96" OLED display, Wi-Fi, Bluetooth 4.2, and USB-C. Only 29.5×23mm for embedded IoT gateway projects.
$10.72
Tap any value to browse matching devices
Specifications
Components
Dual-core Xtensa LX6 at up to 240MHz with 520KB SRAM, Wi-Fi b/g/n and Bluetooth 4.2
SPI hardwired TCP/IP Ethernet chip supporting TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
0.96-inch 128×64 monochrome OLED display controller
Bus Interfaces
Overview
The LILYGO T-Lite W5500 is an ultra-compact ESP32 module combining wired Ethernet and wireless connectivity in a tiny 29.5×23mm footprint. The onboard W5500 chip provides hardware TCP/IP Ethernet support via SPI, making it ideal for IoT gateway applications where both wired reliability and wireless flexibility are needed. A 0.96-inch SSD1306 OLED display enables local status visualization. The board operates from USB-C at 5V and draws minimal power, making it suitable for always-on network appliances and embedded control nodes.
Use Cases
4IoT Gateway
Acting as a local IoT gateway that aggregates data from sensors, runs MQTT broker, Node-RED, or Home Assistant, and bridges to the cloud.
Network Automation
Automate network tasks, monitor connectivity, and control networked devices via WiFi and Ethernet.
home-automation
Embedded Networking
Networking capabilities embedded in devices for machine-to-machine communication.
