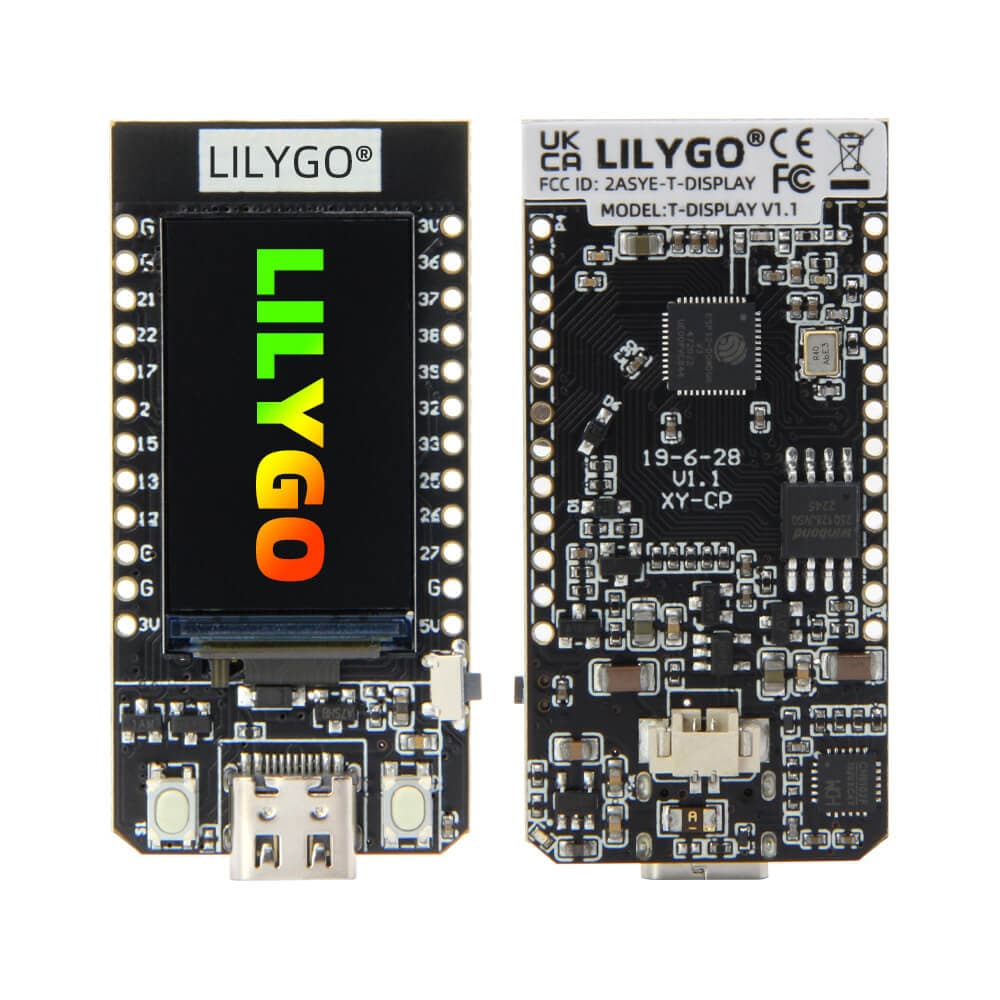

LILYGO T-Display
Compact ESP32-PICO-D4 development board with integrated 1.14-inch ST7789V IPS LCD (135×240, 260 PPI), WiFi, Bluetooth 4.2/BLE, and Arduino/MicroPython support.
$8.99
Tap any value to browse matching devices
Specifications
Certifications
Components
Espressif ESP32-PICO-D4 System-in-Package with dual-core Xtensa LX6 @ 240MHz, 4MB embedded flash, WiFi 802.11 b/g/n, and Bluetooth 4.2/BLE in a compact 7×7mm package.
Sitronix ST7789V TFT LCD driver controlling the 1.14-inch 135×240 IPS panel at 260 PPI over 4-wire SPI interface.
WCH CH9102 USB-to-UART converter enabling programming and serial debug over USB-C without needing extra drivers on most systems.
Bus Interfaces
GPIO Map
Overview
The LILYGO T-Display is a compact ESP32 development board built around the Espressif ESP32-PICO-D4 System-in-Package (SiP), which integrates dual-core Xtensa LX6 processors at 240MHz, 4MB flash, WiFi, and Bluetooth all in a 7×7mm package. The onboard 1.14-inch ST7789V IPS LCD renders 135×240 pixels at 260 PPI, delivering sharp color graphics in a minimal footprint.
Two programmable buttons, a battery voltage detection circuit (GPIO34), and a JST LiPo connector make the T-Display a popular choice for portable gadgets, smart badges, and handheld IoT devices. The CH9102 USB-to-serial bridge provides reliable programming and debug output without additional drivers on modern systems.
Programming support includes the Arduino IDE and MicroPython, backed by an extensive library on GitHub. The board ships with I2C (GPIO21/22), SPI, UART, and ADC pins broken out on 0.1-inch headers, and has passed CE, FCC, UKCA, and MIC certifications for international use.
Use Cases
5Weather Display
A dedicated screen that shows weather information including current conditions, temperature, humidity, pressure, and multi-day forecasts.
Smart Home Dashboard
Wall-mounted or tabletop display showing Home Assistant dashboards, sensor readings, and smart home controls.
Digital Signage
Driving displays for advertising, information kiosks, or menu boards with 4K video and dynamic content.
IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
Remote Control
IR or RF-based remote control devices for appliances, TVs, air conditioners, and home electronics.
