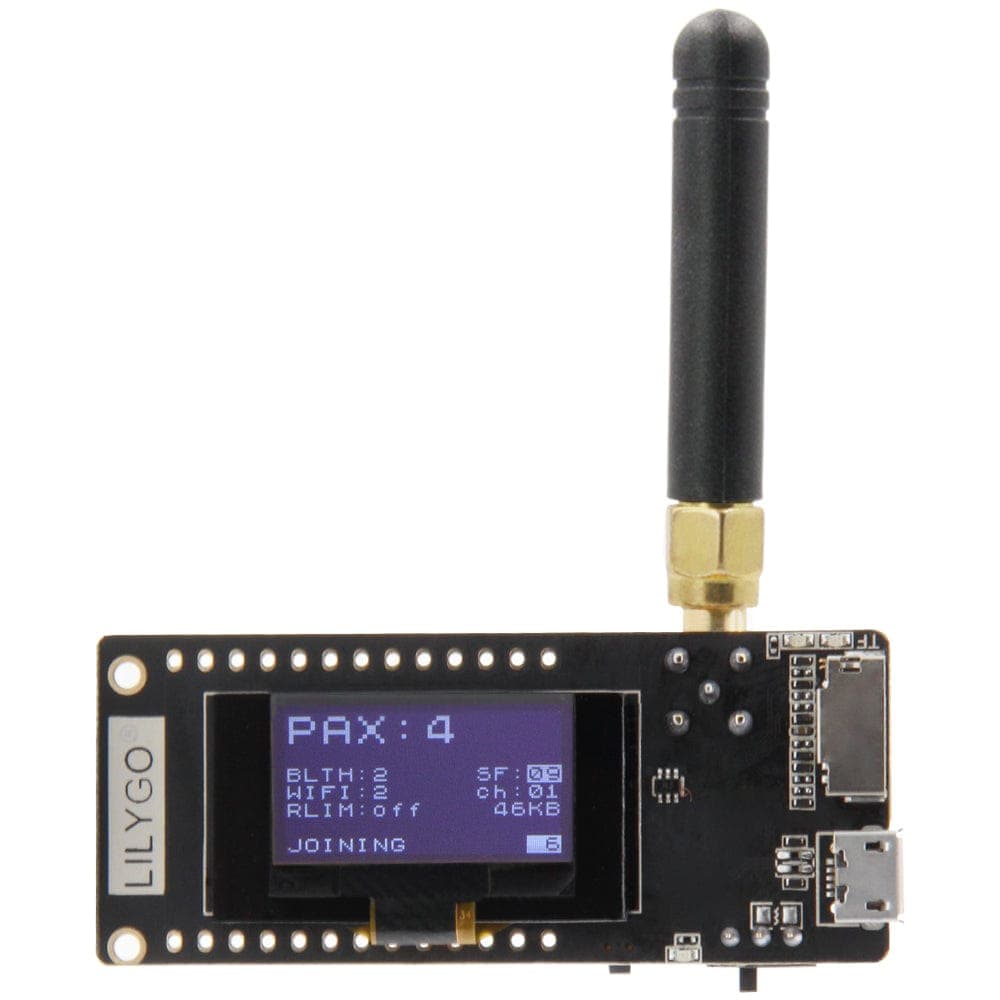

LILYGO LoRa3 (T3 LoRa32 V1.6.1)
LILYGO LoRa3 (T3 LoRa32 V1.6.1) is an ESP32 development board combining Wi-Fi, BLE, and LoRa radio (SX1276/SX1278) with OLED display and TF card slot for IoT and mesh networking.
$15.60
Tap any value to browse matching devices
Specifications
Components
Semtech SX1276 LoRa transceiver for 868/915 MHz bands with -148 dBm sensitivity, 300 kbps max data rate, and automatic frequency correction.
Semtech SX1278 LoRa transceiver for 433 MHz band with -148 dBm sensitivity and 300 kbps max data rate.
Bus Interfaces
Overview
The LILYGO LoRa3, also known as the T3 LoRa32 V1.6.1, is a feature-rich ESP32-based development board that integrates LoRa long-range radio communication alongside Wi-Fi 802.11 b/g/n and Bluetooth 4.2. It uses the SX1278 transceiver for 433 MHz or the SX1276 for 868/915 MHz frequency bands, providing a LoRa sensitivity of -148 dBm and data rates up to 300 kbps. The board includes a 128×64 pixel OLED display, TF card slot, SMA antenna connector, and a JST GH 1.25mm 2-pin battery connector. The CH9102 USB-to-serial chip handles programming via Micro USB. It supports fast wake-up, frequency hopping, automatic gain control, automatic frequency correction, and a highly configurable data packet handler. Compatible with Meshtastic, MeshCore, and Paxcounter firmware.
Use Cases
6LoRa Mesh Networking
Building off-grid mesh communication networks using LoRa radio for text messaging, location sharing, and sensor data relay without cellular or internet infrastructure.
Off-Grid Communication
Text messaging and data exchange in areas without cellular or internet coverage.
IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
Environmental Monitoring
Monitoring environmental conditions like temperature, humidity, air quality, and weather data using remote sensors.
IoT Gateway
Acting as a local IoT gateway that aggregates data from sensors, runs MQTT broker, Node-RED, or Home Assistant, and bridges to the cloud.
Crowd Counting
Estimating the number of people in an area by detecting WiFi and Bluetooth probe requests from mobile devices.
