# LILYGO T8-C3

> LILYGO T8-C3 is a compact ESP32-C3 development board featuring Wi-Fi, BLE 5.0, 4MB flash, TF card slot, and USB Type-C, requiring the T-U2T adapter for programming.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** ESP32-C3
- **Price:** ~$9.78
- **Product Readiness:** developer
- **CPU:** ESP32-C3
- **CPU Architecture:** RISC-V 32-bit
- **RAM:** 400KB SRAM
- **Flash:** 4MB
- **USB:** USB-C
- **Power:** 5V + LiPo
- **Operating Voltage:** 3.3V
- **Antenna:** 3D ceramic / IPEX (switchable)
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

arduino, micropython, esphome

## Use Cases

- iot
- smart-home
- environmental-monitoring
- plant-monitoring

## Components

- **ESP32-C3** (mcu): 32-bit RISC-V single-core processor at 160MHz with integrated Wi-Fi 802.11 b/g/n and Bluetooth 5.0 BLE, 400KB SRAM, 4MB flash. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-c3_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t8-c3&source=md-export)

## Protocols

- **SPI**
- **I2C**
- **UART**
- **PWM**
- **ADC**

## Available Software

- **[Arduino IDE]()** (open-source)
- **[ESP-IDF]()** (open-source)
- **[MicroPython]()** (open-source)

## Description

## Overview

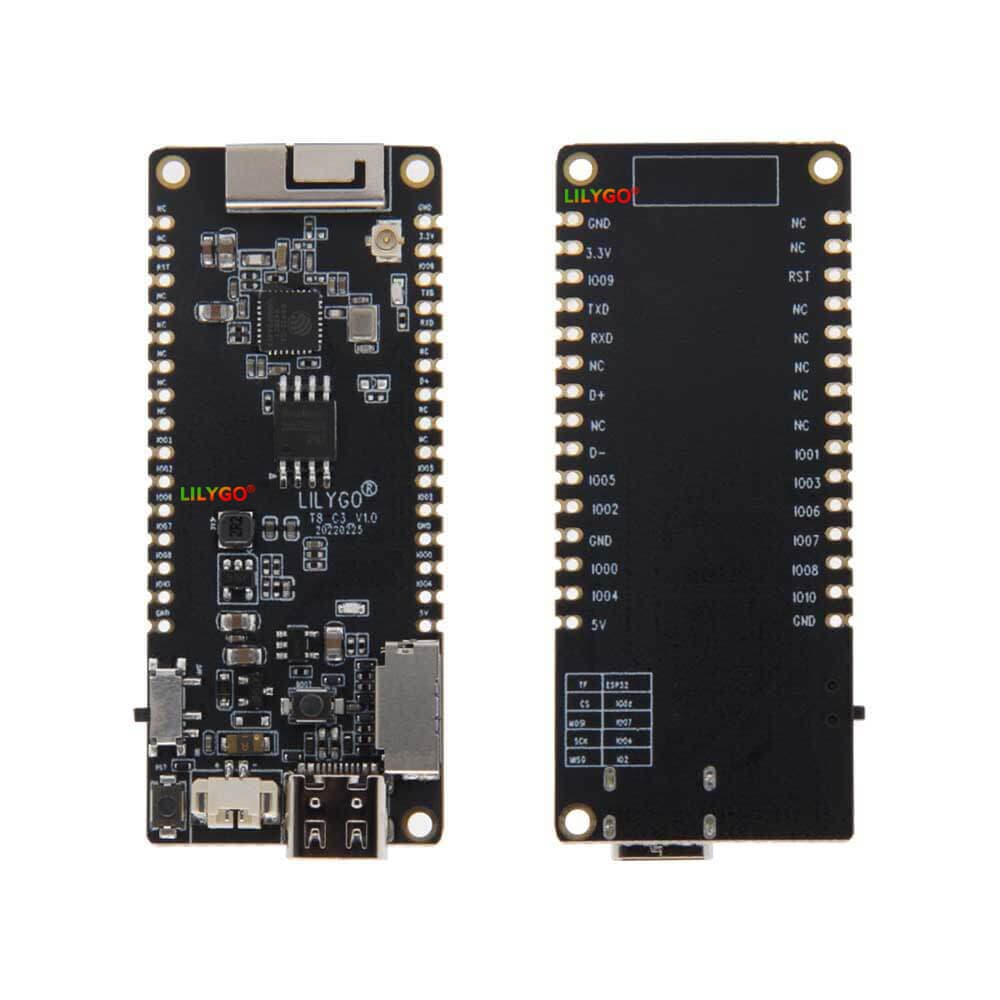

The LILYGO T8-C3 is a compact development board built around the ESP32-C3, a 32-bit RISC-V single-core processor with integrated Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 + BLE. The board includes a TF (microSD) card slot, onboard battery power detection, and a JST 1.25mm 2-pin connector for Li-Po battery. It uses USB Type-C for power and data, but requires the companion T-U2T adapter for USB-to-serial programming. It supports a 3D WiFi ceramic antenna by default and can be reconfigured for an external IPEX antenna by adjusting a resistor. Compatible with Arduino IDE, ESP-IDF, and MicroPython.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft8-c3&ref=openhardware.directory&product=lilygo-t8-c3&source=md-export) — $9.78

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft8-c3&ref=openhardware.directory&product=lilygo-t8-c3&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FT8-C3&ref=openhardware.directory&product=lilygo-t8-c3&source=md-export)

## Tags

`esp32-c3`, `risc-v`, `wifi`, `bluetooth`, `tf-card`, `usb-c`, `lilygo`, `iot`

## Images

![LILYGO T8-C3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t8-c3/bd2acfaaac16.jpg)
![LILYGO T8-C3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t8-c3/503be05b7d9a.jpg)
![LILYGO T8-C3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t8-c3/6198fecacc4f.jpg)
![LILYGO T8-C3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t8-c3/7d2bc9bb8741.jpg)
![LILYGO T8-C3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t8-c3/000dddd36c89.jpg)
![LILYGO T8-C3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t8-c3/47bd354e15b2.jpg)
![LILYGO T8-C3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t8-c3/c4836fa780b6.jpg)
![LILYGO T8-C3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t8-c3/aa15f39401df.png)

---
