# LILYGO T-SimCam

> ESP32-S3 camera development board with mPCIe slot for LILYGO T-PCIE SIM cellular modules, supporting OV2640 or OV5640 cameras, 16MB flash, 8MB PSRAM, TF card, and I2S microphone for connected vision applications.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** ESP32-S3
- **Price:** ~$13.86
- **Product Readiness:** developer
- **CPU:** ESP32-S3R8
- **CPU Architecture:** Xtensa LX7
- **CPU Cores:** 2
- **RAM:** 512KB SRAM
- **PSRAM:** 8MB
- **Flash:** 16MB
- **USB:** USB-C
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0

## Open Source

- **Firmware:** No
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

arduino, esp-idf

## Use Cases

- ip-camera
- cellular-camera
- computer-vision
- remote-surveillance
- iot-gateway

## Components

- **ESP32-S3R8** (mcu): Dual-core 240MHz Xtensa LX7 with 8MB embedded PSRAM, WiFi 802.11, and BLE 5.0 — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-simcam&source=md-export)
- **OV2640** (camera): 2-megapixel (1622×1200 UXGA) image sensor at 3.3V, with IR-CUT variant available — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.uctronics.com%2Fdownload%2Fcam_module%2FOV2640DS.pdf&ref=openhardware.directory&product=lilygo-t-simcam&source=md-export)
- **OV5640** (camera): 5-megapixel image sensor with optional autofocus and IR-CUT variants available as upgrade option — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.uctronics.com%2Fdownload%2Fcam_module%2FOV2640DS.pdf&ref=openhardware.directory&product=lilygo-t-simcam&source=md-export)
- **mPCIe Slot** (expansion): Mini PCI Express slot for LILYGO T-PCIE SIM cellular modules (sold separately) — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-simcam&source=md-export)
- **I2S Microphone** (audio): I2S digital microphone for audio capture alongside camera video — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-simcam&source=md-export)

## Protocols

- **UART**
- **SPI**
- **I2C**
- **I2S**

## Available Software

- **[Arduino IDE]()** (open-source)
- **[ESP-IDF]()** (open-source)
- **[VS Code]()** (open-source)

## Description

## Overview

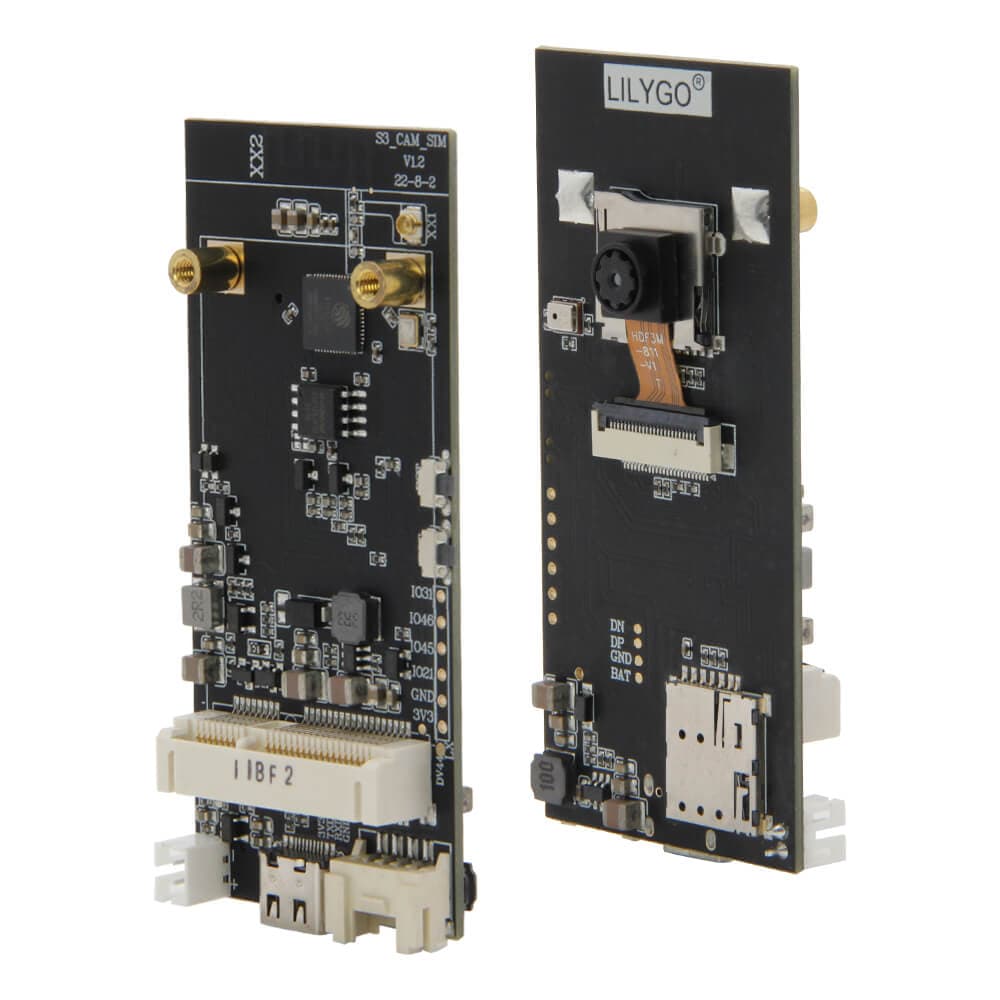

The LILYGO T-SimCam is an ESP32-S3R8-based development board that combines camera capabilities with cellular connectivity through a mini PCI Express slot compatible with LILYGO T-PCIE SIM modules. The board supports multiple camera modules — OV2640 (2MP), OV5640 (5MP), OV5640 with autofocus, and IR-CUT variants — paired with an I2S digital microphone for audio capture. Onboard storage is available via TF card slot. The ESP32-S3R8 provides dual-core LX7 processing at 240MHz, 8MB embedded PSRAM, 16MB flash, WiFi 802.11, and BLE 5.0 with Bluetooth mesh. The mPCIe cellular module must be purchased separately, enabling 4G LTE or other cellular standards depending on the chosen T-PCIE module.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-simcam&ref=openhardware.directory&product=lilygo-t-simcam&source=md-export) — $13.86

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-simcam&ref=openhardware.directory&product=lilygo-t-simcam&source=md-export)

## Tags

`esp32-s3`, `camera`, `cellular`, `ov2640`, `ov5640`, `mpcie`, `vision`
