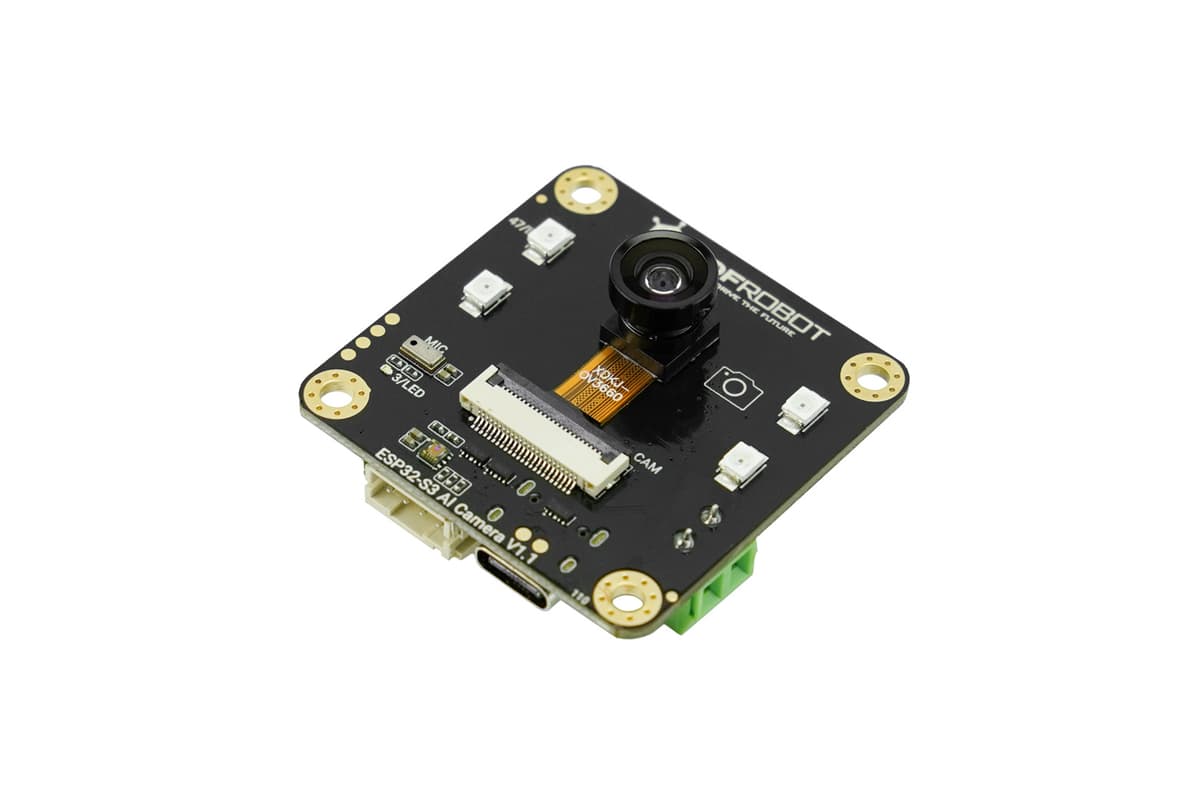

# DFRobot ESP32-S3 AI Camera

> ESP32-S3 AI camera module with 2MP wide-angle night vision sensor, I2S speaker and microphone, ambient light sensor, WiFi/BLE 5.0, and edge AI inference support in a 42x42mm package.

## Quick Facts

- **Brand:** DFRobot
- **Price:** ~$18.9
- **Product Readiness:** Consumer Ready
- **CPU:** Xtensa LX7 dual-core @ 240MHz, FPU, AI vector extensions, HW crypto (AES/SHA/RSA)
- **CPU Architecture:** Xtensa LX7
- **CPU Cores:** 2
- **RAM:** 512KB SRAM
- **PSRAM:** 8MB
- **Flash:** 16MB
- **USB:** USB-C
- **Power:** 5V USB-C / 3.7-15V DC (VIN)
- **Operating Voltage:** 3.3V
- **Operating Temp:** -10°C to 60°C
- **Dimensions:** 42 × 42mm
- **Weight:** 27g
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0

## Use Cases

- security-camera
- baby-monitor
- computer-vision
- license-plate-recognition
- voice-assistant
- edge-ai

## Components

- **ESP32-S3R8** (mcu): Espressif ESP32-S3R8 with dual-core Xtensa LX7 at 240MHz, 8MB PSRAM, 16MB flash, WiFi 802.11 b/g/n, BLE 5.0, and AI vector extensions. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=dfrobot-esp32-s3-ai-camera&source=md-export)
- **OV3660** (camera): OmniVision OV3660 2MP CMOS image sensor with 160-degree FOV, F/2.0 aperture, and 940nm infrared sensitivity for day/night vision. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ovt.com%2Fproducts%2Fov3660%2F&ref=openhardware.directory&product=dfrobot-esp32-s3-ai-camera&source=md-export)
- **MAX98357A** (audio-amplifier): Analog Devices MAX98357A I2S digital input Class-D mono amplifier for speaker output, no external MCLK required. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.analog.com%2Fmedia%2Fen%2Ftechnical-documentation%2Fdata-sheets%2FMAX98357A-MAX98357B.pdf&ref=openhardware.directory&product=dfrobot-esp32-s3-ai-camera&source=md-export)
- **LTR-308** (sensor): Lite-On LTR-308 I2C ambient light sensor for automatic IR illumination control based on ambient light levels. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Foptoelectronics.liteon.com%2Fen-global%2Fled%2Fled-component%2FDetail%2F926&ref=openhardware.directory&product=dfrobot-esp32-s3-ai-camera&source=md-export)

## Protocols

- **UART** (UART0): TX: IO44, RX: IO43

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| IO47 | IR LED Control | GPIO | digital-input, digital-output |
| IO44 | UART TX / Gravity Connector | UART | digital-input, digital-output |
| IO43 | UART RX / Gravity Connector | UART | digital-input, digital-output |
| IO3 | Onboard LED | GPIO | digital-input, digital-output, pwm |

## Description

## Overview

The DFRobot ESP32-S3 AI Camera is a compact all-in-one AI vision module built around the ESP32-S3R8 dual-core processor with 16MB flash and 8MB PSRAM. It integrates a 2MP OV3660 camera with 160-degree wide-angle lens and 940nm infrared illumination for day and night vision, an I2S microphone for voice input, and a MAX98357 I2S audio amplifier with speaker output for bidirectional audio communication.

The module supports edge-based image recognition through platforms like Edge Impulse, YOLOv5, and OpenCV, enabling on-device AI inference without cloud dependency. It also integrates with OpenAI's ChatGPT for voice-controlled interactions and real-time Q&A about captured images. An onboard LTR-308 ambient light sensor enables automatic IR illumination switching.

With WiFi and BLE 5.0 connectivity, a Gravity I2C/UART expansion port, microSD card slot, and flexible power input (5V USB-C or 3.7-15V VIN), the ESP32-S3 AI Camera targets applications including smart doorbells, baby monitors, license plate recognition, AI robot companions, and security surveillance systems.

## Where to Buy

- [DFRobot](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-2899.html&ref=openhardware.directory&product=dfrobot-esp32-s3-ai-camera&source=md-export) — $18.90

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-2899.html&ref=openhardware.directory&product=dfrobot-esp32-s3-ai-camera&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FDFRobot%2Fopenai-realtime-embedded-sdk&ref=openhardware.directory&product=dfrobot-esp32-s3-ai-camera&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.dfrobot.com%2FSKU_DFR1154_ESP32_S3_AI_CAM&ref=openhardware.directory&product=dfrobot-esp32-s3-ai-camera&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=dfrobot-esp32-s3-ai-camera&source=md-export)
