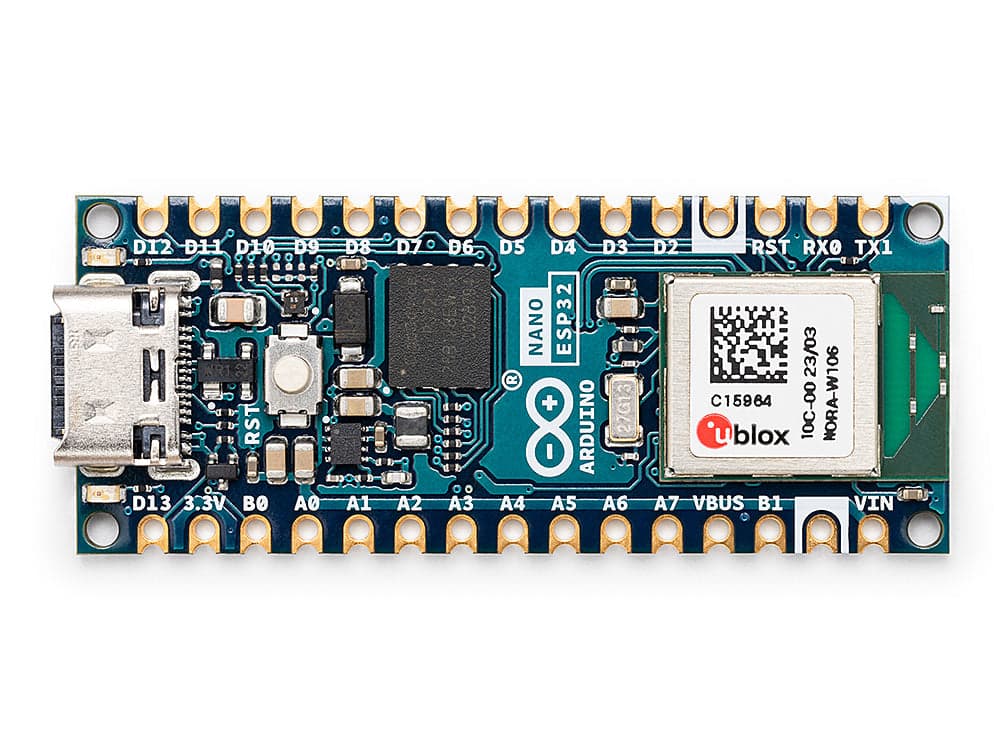

# Arduino Nano ESP32 > Arduino Nano form factor powered by ESP32-S3 with WiFi 802.11 b/g/n, Bluetooth LE 5.0, dual-core Xtensa LX7 at 240MHz, 8MB flash, 512KB SRAM, USB-C, and HID support — Arduino's compact IoT powerhouse with MicroPython support. ## Quick Facts - **Brand:** Arduino - **Board Type:** dev-board - **Price:** ~$18.5 - **Product Readiness:** consumer - **CPU:** Xtensa LX7 dual-core @ 240MHz, FPU - **CPU Architecture:** Xtensa LX7 - **CPU Cores:** 2 - **RAM:** 512KB SRAM - **Flash:** 8MB - **USB:** USB-C 2.0 (OTG) - **Power:** 5V via USB-C or Vin - **Operating Voltage:** 3.3V - **Dimensions:** 45 × 18mm - **Weight:** 10g - **Antenna:** Built-in PCB antenna - **SD Card:** No ## Connectivity - **Wifi:** 802.11 b/g/n - **Bluetooth:** BLE 5.0 ## Open Source - **Firmware:** Yes - **Schematics:** Yes - **PCB Layout:** No ## Compatible Firmware arduino, micropython, esp-idf ## Use Cases - iot - home-automation - environmental-monitoring - educational-platform ## Components - **ESP32-S3-MINI-1-N8** (mcu): Espressif ESP32-S3 with Xtensa LX7 dual-core at 240MHz, 8MB flash, WiFi 802.11 b/g/n, and BLE 5.0. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3-mini-1_mini-1u_datasheet_en.pdf&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) ## Protocols - **SPI**: MOSI: D11, MISO: D12, SCK: D13, SS: D10 - **I2C**: SDA: A4, SCL: A5 - **UART**: TX: D1, RX: D0 ## GPIO Map | Pin | Name | Type | Functions | |-----|------|------|-----------| | D0 | UART RX | UART | digital-input, digital-output | | D1 | UART TX | UART | digital-input, digital-output | | D2 | Digital I/O | | digital-input, digital-output, pwm | | D3 | Digital I/O | | digital-input, digital-output, pwm | | D4 | Digital I/O | | digital-input, digital-output, pwm | | D5 | Digital I/O | | digital-input, digital-output, pwm | | D6 | Digital I/O | | digital-input, digital-output, pwm | | D7 | Digital I/O | | digital-input, digital-output, pwm | | D8 | Digital I/O | | digital-input, digital-output, pwm | | D9 | Digital I/O | | digital-input, digital-output, pwm | | D10 | SPI SS | SPI | digital-input, digital-output, pwm | | D11 | SPI MOSI | SPI | digital-input, digital-output, pwm | | D12 | SPI MISO | SPI | digital-input, digital-output, pwm | | D13 | SPI SCK | SPI | digital-input, digital-output, pwm | | A0 | Analog Input | ADC | digital-input, digital-output, adc, pwm | | A1 | Analog Input | ADC | digital-input, digital-output, adc, pwm | | A2 | Analog Input | ADC | digital-input, digital-output, adc, pwm | | A3 | Analog Input | ADC | digital-input, digital-output, adc, pwm | | A4 | I2C SDA / Analog | I2C | digital-input, digital-output, adc, pwm | | A5 | I2C SCL / Analog | I2C | digital-input, digital-output, adc, pwm | | A6 | Analog Input | ADC | digital-input, digital-output, adc, pwm | | A7 | Analog Input | ADC | digital-input, digital-output, adc, pwm | ## Description ## Overview The Arduino Nano ESP32 brings the full power of the ESP32-S3 to the beloved Nano form factor. With dual-core Xtensa LX7 running at 240MHz, 8MB flash, 512KB SRAM, WiFi 802.11 b/g/n, and Bluetooth LE 5.0, it packs serious IoT capability into a tiny 45×18mm board. Unlike other ESP32-S3 boards, the Nano ESP32 operates at 3.3V logic level and runs both Arduino IDE and MicroPython out of the box. It includes a USB-C connector with HID support for keyboard/mouse emulation, 14 digital I/O pins, 8 analog inputs, and is fully compatible with Arduino IoT Cloud for remote monitoring and control. The board is designed for embedded IoT projects where WiFi connectivity and compact size are essential — from environmental sensors to connected displays to smart home controllers. Its castellated pins allow direct soldering onto custom PCBs for production use. ## Where to Buy - [Arduino Store (US)](https://openhardware.directory/r?to=https%3A%2F%2Fstore-usa.arduino.cc%2Fproducts%2Fnano-esp32&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) — $18.50 - [Arduino Store (EU)](https://openhardware.directory/r?to=https%3A%2F%2Fstore.arduino.cc%2Fproducts%2Fnano-esp32&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) — €20.40 - [DigiKey](https://openhardware.directory/r?to=https%3A%2F%2Fwww.digikey.com%2Fen%2Fproducts%2Fdetail%2Farduino%2FABX00092%2F20371542&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) — $20.00 - [Mouser](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2FProductDetail%2FArduino%2FABX00092&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) — $20.00 - [Amazon US](https://openhardware.directory/r?to=https%3A%2F%2Fwww.amazon.com%2Fdp%2FB0C947BHK5&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) — $20.00 - [SparkFun](https://openhardware.directory/r?to=https%3A%2F%2Fwww.sparkfun.com%2Farduino-nano-esp32.html&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) — $20.00 - [The Pi Hut (UK)](https://openhardware.directory/r?to=https%3A%2F%2Fthepihut.com%2Fproducts%2Farduino-nano-esp32&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) — £16.50 ## Resources - [product](https://openhardware.directory/r?to=https%3A%2F%2Fstore.arduino.cc%2Fproducts%2Fnano-esp32&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) - [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fhardware%2Fnano-esp32%2F&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) - [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fresources%2Fdatasheets%2FABX00092-datasheet.pdf&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) - [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fresources%2Fschematics%2FABX00092-schematics.pdf&ref=openhardware.directory&product=arduino-nano-esp32&source=md-export) ## Tags `arduino`, `nano`, `esp32-s3`, `wifi`, `ble`, `iot`, `micropython`, `usb-c` ## Images ![Arduino Nano ESP32](https://nbg1.your-objectstorage.com/openhardware-directory/entities/arduino-nano-esp32/9b0be82f9700.jpg) ![Arduino Nano ESP32](https://nbg1.your-objectstorage.com/openhardware-directory/entities/arduino-nano-esp32/1c30dba2a8f9.jpg) ![Arduino Nano ESP32](https://nbg1.your-objectstorage.com/openhardware-directory/entities/arduino-nano-esp32/0e6c5a94c523.jpg) --- [View full device page](https://openhardware.directory/devices/arduino-nano-esp32)
