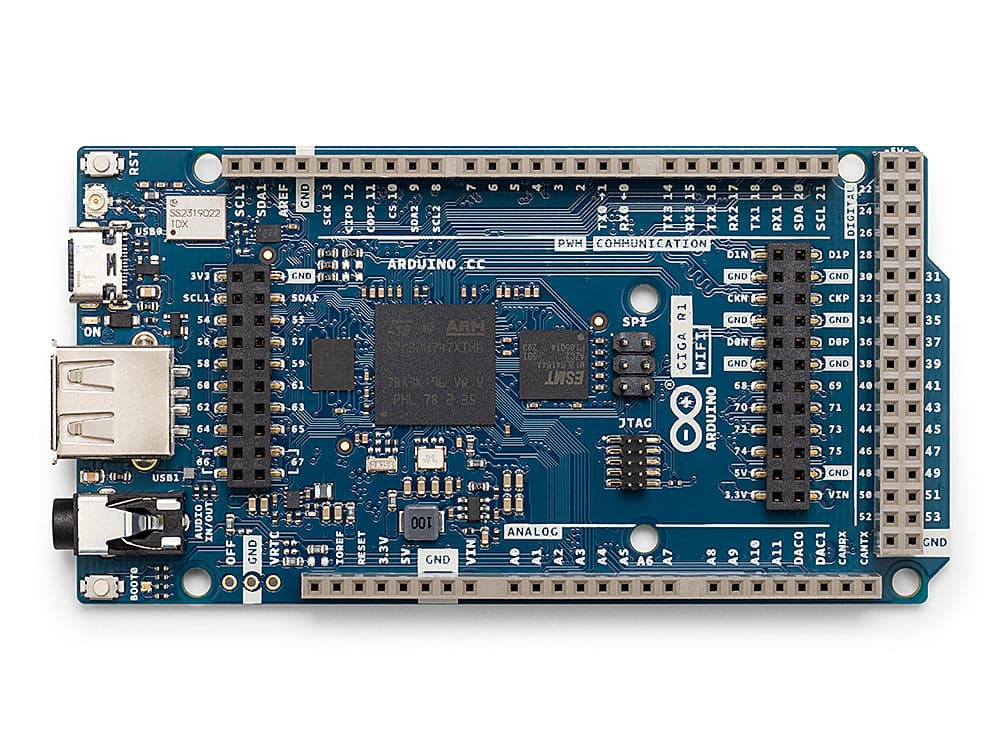

# Arduino GIGA R1 WiFi > Arduino's most powerful board — dual-core STM32H747XI with Cortex-M7 at 480MHz + Cortex-M4 at 240MHz, 2MB flash, 1MB RAM, WiFi, Bluetooth, 76 GPIO, USB-A + USB-C, 3.5mm audio jack, camera connector, and CAN bus in Mega/Due form factor. ## Quick Facts - **Brand:** Arduino - **Board Type:** dev-board - **Price:** ~$53 - **Product Readiness:** consumer - **CPU:** ARM Cortex-M7 @ 480MHz,Cortex-M4 @ 240MHz, FPU, DSP - **CPU Architecture:** ARM Cortex-M7 - **CPU Cores:** 2 - **RAM:** 1MB SRAM - **Flash:** 2MB - **USB:** USB-C,USB-A Host - **Power:** 5V via USB-C or 6-24V via Vin - **Operating Voltage:** 3.3V - **Dimensions:** 101.52 × 53.34mm - **Weight:** 32g - **Antenna:** Built-in PCB antenna - **SD Card:** No ## Connectivity - **Wifi:** 802.11 b/g/n - **Bluetooth:** Bluetooth 4.2, BLE ## Open Source - **Firmware:** Yes - **Schematics:** Yes - **PCB Layout:** No ## Compatible Firmware arduino, micropython ## Use Cases - educational-platform - iot - voice-assistant - retro-gaming - industrial-iot ## Components - **STM32H747XI** (mcu): STMicroelectronics STM32H747XI with Cortex-M7 at 480MHz and Cortex-M4 at 240MHz, 2MB flash, 1MB RAM, hardware crypto, and DSP. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.st.com%2Fresource%2Fen%2Fdatasheet%2Fstm32h747xi.pdf&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) - **Murata-1DX** (mcu): Murata Type 1DX wireless module providing WiFi 802.11 b/g/n and Bluetooth 4.2 connectivity. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.murata.com%2Fen-us%2Fproducts%2Fconnectivitymodule%2Fwi-fi-bluetooth%2Foverview%2Flineup%2Ftype1dx&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) ## Protocols - **SPI**: MOSI: D51, MISO: D50, SCK: D52, SS: D53 - **I2C**: SDA: D20, SCL: D21 - **UART**: TX: D1, RX: D0 - **CAN FD**: CANRX: D9, CANTX: D10 ## GPIO Map | Pin | Name | Type | Functions | |-----|------|------|-----------| | D0 | UART RX | UART | digital-input, digital-output | | D1 | UART TX | UART | digital-input, digital-output | | D2 | PWM | PWM | digital-input, digital-output, pwm | | D3 | PWM | PWM | digital-input, digital-output, pwm | | D4 | PWM | PWM | digital-input, digital-output, pwm | | D5 | PWM | PWM | digital-input, digital-output, pwm | | D6 | PWM | PWM | digital-input, digital-output, pwm | | D7 | PWM | PWM | digital-input, digital-output, pwm | | D8 | PWM | PWM | digital-input, digital-output, pwm | | D9 | CAN RX / PWM | CAN | digital-input, digital-output, pwm | | D10 | CAN TX / PWM | CAN | digital-input, digital-output, pwm | | D11 | PWM | PWM | digital-input, digital-output, pwm | | D12 | PWM | PWM | digital-input, digital-output, pwm | | D13 | LED / PWM | PWM | digital-input, digital-output, pwm | | A0 | Analog Input / DAC0 | ADC | adc, dac, digital-input, digital-output | | A1 | Analog Input / DAC1 | ADC | adc, dac, digital-input, digital-output | | A2 | Analog Input | ADC | adc, digital-input, digital-output | | A3 | Analog Input | ADC | adc, digital-input, digital-output | | A4 | Analog Input | ADC | adc, digital-input, digital-output | | A5 | Analog Input | ADC | adc, digital-input, digital-output | | A6 | Analog Input | ADC | adc, digital-input, digital-output | | A7 | Analog Input | ADC | adc, digital-input, digital-output | ## Description ## Overview The Arduino GIGA R1 WiFi is the most powerful board in the Arduino lineup, built around the STM32H747XI dual-core processor combining a Cortex-M7 at 480MHz and a Cortex-M4 at 240MHz. With 2MB flash and 1MB RAM, it handles demanding applications like real-time audio processing, computer vision, machine learning, and simultaneous wireless communication. WiFi and Bluetooth connectivity come via the Murata 1DX module, while the board offers an impressive 76 GPIO pins, 4 UARTs, 3 I2C ports, 2 SPI ports, CAN FD, a 3.5mm audio jack with DAC output, and an Arducam camera connector for vision projects. Both USB-A host and USB-C device ports enable connecting peripherals like keyboards, mice, or USB drives. Maintaining the Mega/Due form factor ensures compatibility with existing large-format shields while delivering processing power that rivals single-board computers. The dual-core architecture allows running time-critical tasks on the M7 while the M4 handles wireless communication or secondary processing independently. ## Where to Buy - [Arduino Store (US)](https://openhardware.directory/r?to=https%3A%2F%2Fstore-usa.arduino.cc%2Fproducts%2Fgiga-r1-wifi&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) — $53.00 - [Arduino Store (EU)](https://openhardware.directory/r?to=https%3A%2F%2Fstore.arduino.cc%2Fproducts%2Fgiga-r1-wifi&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) — €58.47 - [DigiKey](https://openhardware.directory/r?to=https%3A%2F%2Fwww.digikey.com%2Fen%2Fproducts%2Fdetail%2Farduino%2FABX00063%2F18075937&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) — $62.40 - [Mouser](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2FProductDetail%2FArduino%2FABX00063&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) — $62.40 - [Amazon US](https://openhardware.directory/r?to=https%3A%2F%2Fwww.amazon.com%2Fdp%2FB0BZ2LN2WJ&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) — $62.40 - [SparkFun](https://openhardware.directory/r?to=https%3A%2F%2Fwww.sparkfun.com%2Farduino-giga-r1-wifi.html&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) — $62.40 ## Resources - [product](https://openhardware.directory/r?to=https%3A%2F%2Fstore.arduino.cc%2Fproducts%2Fgiga-r1-wifi&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) - [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fhardware%2Fgiga-r1-wifi%2F&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) - [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fresources%2Fdatasheets%2FABX00063-datasheet.pdf&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) - [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fresources%2Fschematics%2FABX00063-schematics.pdf&ref=openhardware.directory&product=arduino-giga-r1-wifi&source=md-export) ## Tags `arduino`, `giga`, `stm32h747`, `dual-core`, `wifi`, `bluetooth`, `audio`, `camera`, `can-bus`, `usb-c` ## Images ![Arduino GIGA R1 WiFi](https://nbg1.your-objectstorage.com/openhardware-directory/entities/arduino-giga-r1-wifi/2ecb6f8841a3.jpg) ![Arduino GIGA R1 WiFi](https://nbg1.your-objectstorage.com/openhardware-directory/entities/arduino-giga-r1-wifi/1c414f6c9c62.jpg) ![Arduino GIGA R1 WiFi](https://nbg1.your-objectstorage.com/openhardware-directory/entities/arduino-giga-r1-wifi/9ebbd10f50f9.jpg) --- [View full device page](https://openhardware.directory/devices/arduino-giga-r1-wifi)
