DFRobot Beetle ESP32-C6
Coin-sized (25×20.5mm) ESP32-C6 wearable dev board with WiFi 6, BLE 5, Thread, Zigbee, Matter, integrated LiPo charger, and 14µA deep sleep — for $4.90.
$4.90
Tap any value to browse matching devices
Specifications
Components
Espressif ESP32-C6 with RISC-V @ 160MHz, 512KB SRAM, 4MB flash, WiFi 6, BLE 5, Zigbee, Thread, and Matter support.
Onboard single-cell LiPo charging management with 0.5A max charge current, deep sleep at 14µA.
Bus Interfaces
GPIO Map
Overview

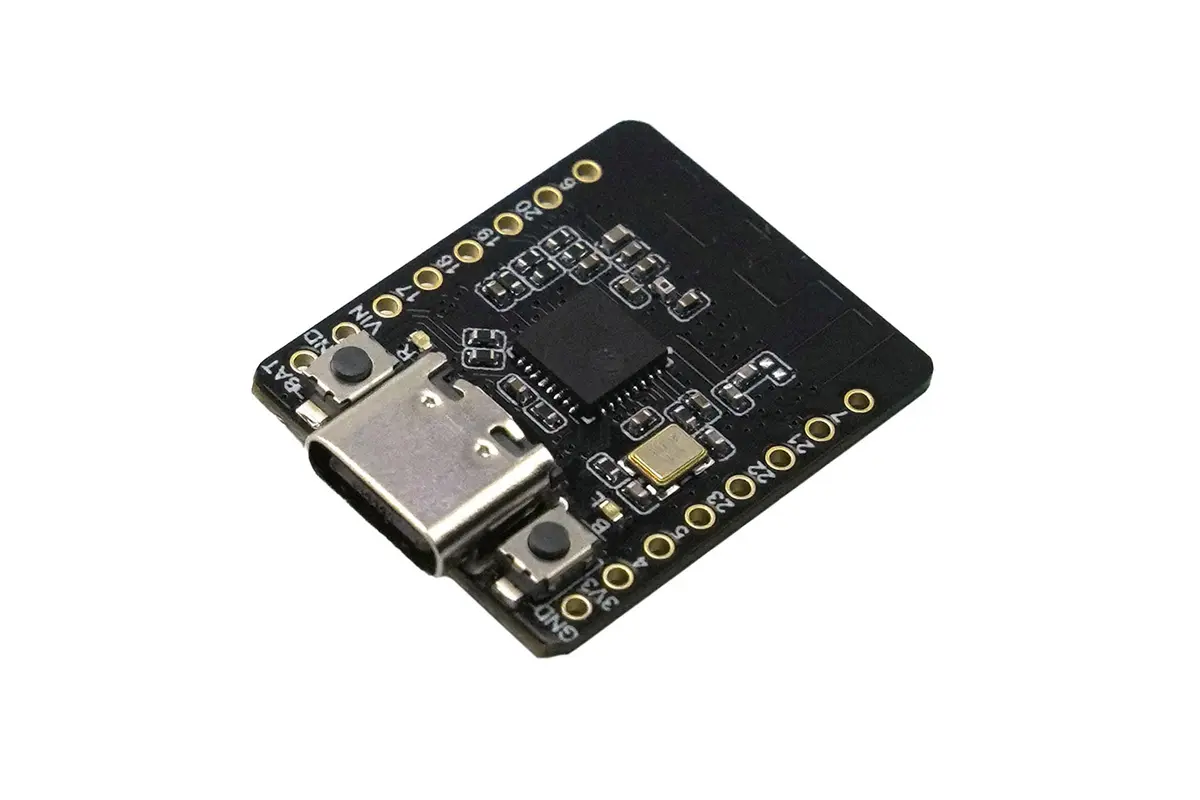

The DFRobot Beetle ESP32-C6 is one of the smallest ESP32-C6 boards available, measuring just 25×20.5mm — roughly the size of a large coin. Despite its tiny footprint, it packs the full ESP32-C6 feature set: WiFi 6, Bluetooth 5, Zigbee 3.0, Thread 1.3, and Matter support, alongside an integrated LiPo battery charger for just $4.90.
Designed explicitly for wearable applications, it is used in electronic badges, pet trackers, smart buttons, and compact IoT nodes where size and weight (17 grams) are critical. The built-in single-cell LiPo charging circuit (0.5A max) eliminates the need for an external charger module, further reducing system size and complexity.
At deep sleep current as low as 14µA, it's ideal for coin-cell or small LiPo battery-powered devices. Its 13 GPIO pins support 12-bit ADC (7 channels), 6-channel PWM, SPI, dual I2C, triple UART, I2S, and IR transceiver — covering the full range of sensor and actuator interfaces needed for compact IoT projects.
Programming via Arduino IDE or MicroPython is supported, and it integrates with DFRobot's Gravity sensor ecosystem.
Use Cases
8Matter Smart Home
Building Matter-compatible smart home devices that work across ecosystems like Apple Home, Google Home, and Amazon Alexa.
Matter Smart Home
Building Matter-compatible smart home devices that work across ecosystems like Apple Home, Google Home, and Amazon Alexa.
Wearable
Body-worn computing devices including smartwatches, fitness bands, and health monitors.
Battery Powered Sensor Node
Low-power sensor nodes running on battery for wireless data collection and monitoring.
Smart Home
Home automation devices for controlling lighting, climate, security, and appliances.
IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
Prototyping
Rapid hardware prototyping and proof-of-concept development with breadboard-friendly form factors and accessible development environments.
BLE Sensor Node
Bluetooth Low Energy sensor node for collecting and transmitting environmental, proximity, or asset data wirelessly.
