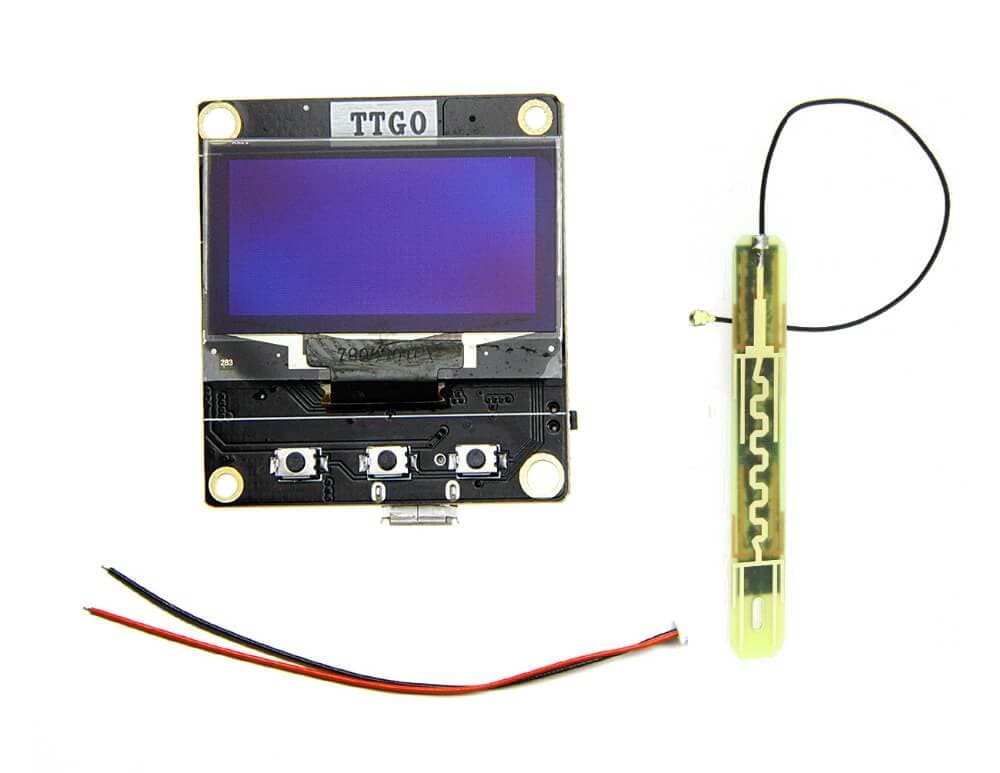

LILYGO TO-ESP8266 OLED SH1106
ESP8266 development board with 1.3-inch SH1106 OLED display, 8 digital I/O pins, CH9102 USB-serial, 3.3V operation, WiFi 802.11 b/g/n, and JST 1.25mm LiPo connector — supports ESPHome and Tasmota firmware.
$9.56
Tap any value to browse matching devices
Specifications
Components
Single-core Tensilica L106 at 80/160MHz with 160KB RAM and integrated WiFi 802.11 b/g/n.
1.3-inch monochrome OLED at 128×64 resolution via I2C interface (SDA D1, SCL D2).
CH9102 USB to UART bridge for flashing and serial communication.
Bus Interfaces
Overview
The LILYGO TO-ESP8266 OLED SH1106 is a compact development board pairing the ESP8266 WiFi SoC with a 1.3-inch SH1106 OLED display. Operating at 80MHz or 160MHz, the ESP8266 provides WiFi 802.11 b/g/n connectivity with 8 digital I/O pins and one analog input (max 3.2V). The SH1106 OLED connects via I2C (SDA on D1, SCL on D2) and delivers a sharp monochrome display ideal for sensor readouts and status screens. The board includes a CH9102 USB-to-serial bridge, a 1.25mm JST 2-pin battery connector for LiPo power, and three configurable buttons (D6, D7, D8). It is fully compatible with ESPHome and Tasmota, making it an accessible entry point for WiFi-connected smart home displays and environmental monitor nodes.
Use Cases
4IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
Environmental Monitoring
Monitoring environmental conditions like temperature, humidity, air quality, and weather data using remote sensors.
Smart Home
Home automation devices for controlling lighting, climate, security, and appliances.
Weather Display
A dedicated screen that shows weather information including current conditions, temperature, humidity, pressure, and multi-day forecasts.
