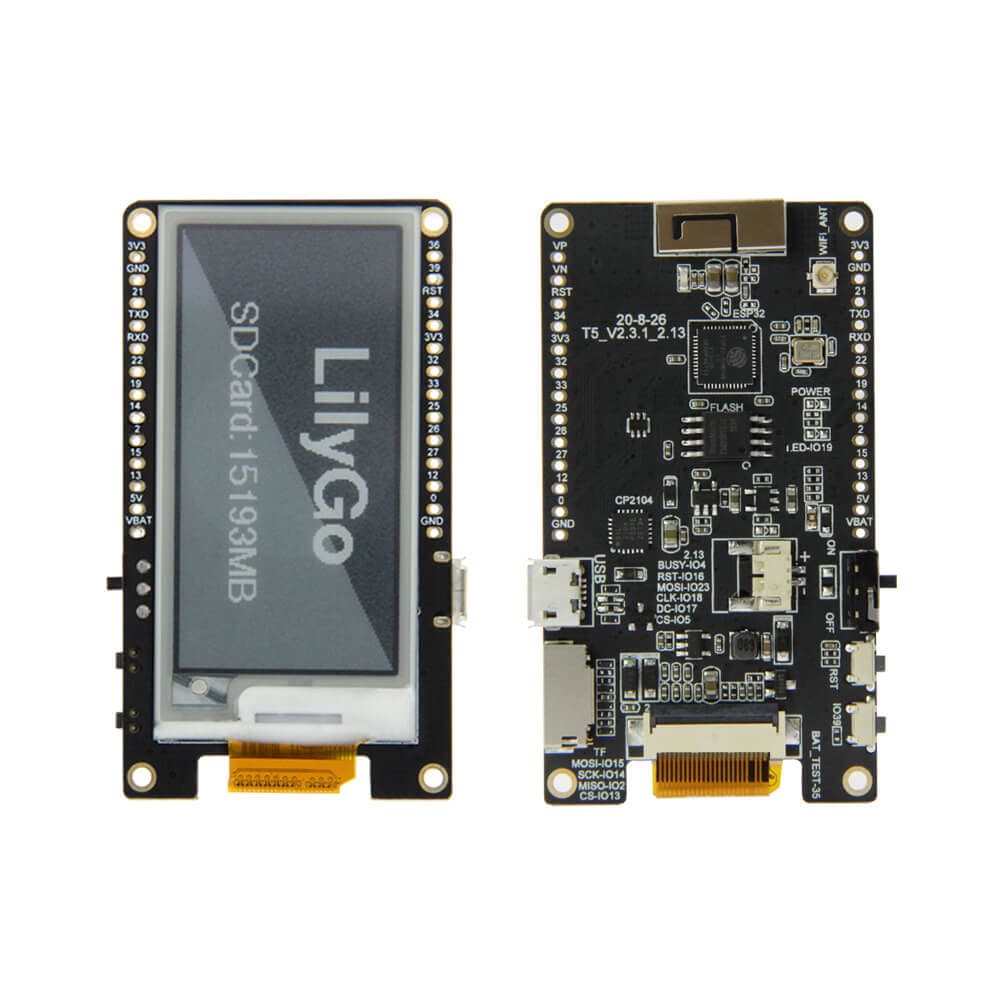

LILYGO T5 2.13inch E-Paper
LILYGO T5 2.13inch E-Paper is an ESP32-D0WDQ6 V3 development board with a 2.13-inch 212×104 e-ink display supporting 4-level grayscale, 4MB flash, TF card slot, and battery management with 4 user buttons.
$16.02
Tap any value to browse matching devices
Specifications
Components
Espressif ESP32-D0WDQ6 V3 dual-core Xtensa LX6 MCU with integrated WiFi 802.11 b/g/n and Bluetooth 4.2.
WCH CH9102F USB to serial bridge chip for programming and serial monitoring of the ESP32.
Bus Interfaces
Overview
The LILYGO T5 2.13inch E-Paper pairs the ESP32-D0WDQ6 V3 microcontroller with a 2.13-inch SPI e-ink display capable of 4-level grayscale rendering, going beyond simple black-and-white graphics. Onboard features include a CH9102F USB-to-TTL bridge, a TF card socket for local storage, a 3D metal antenna with optional IPEX external antenna support, a JST 1.25mm LiPo battery connector with charge/discharge protection, a power toggle switch, one reset button, and four custom GPIO buttons. The 5V/1A Micro USB port powers the board directly or charges the battery. Compatible with MicroPython, Arduino IDE, and ESP-IDF. Suitable for electronic work cards, STEM education, and general IoT display applications.
Use Cases
5E-Reader
Electronic book reader and document viewer with low-power e-paper display for comfortable long-form reading.
Weather Display
A dedicated screen that shows weather information including current conditions, temperature, humidity, pressure, and multi-day forecasts.
Smart Home Dashboard
Wall-mounted or tabletop display showing Home Assistant dashboards, sensor readings, and smart home controls.
Digital Signage
Driving displays for advertising, information kiosks, or menu boards with 4K video and dynamic content.
IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
