LILYGO T-Lora Pager
Compact LoRa pager with ESP32-S3, 2.33" touchscreen, QWERTY keyboard, u-blox GNSS, BHI260AP AI IMU, ES8311 audio codec, RFID/NFC, and foldable antenna for off-grid messaging.
$80.96
Tap any value to browse matching devices
Specifications
Certifications
Components
Xtensa LX7 dual-core at 240MHz with 16MB flash, 8MB PSRAM, WiFi, and BLE 5.0.
SPI TFT LCD driver for 222×480 resolution display.
Long-range LoRa transceiver covering 150–960 MHz with +22 dBm output.
Ultra-compact u-blox GNSS module supporting GPS, GLONASS, BeiDou, and Galileo.
Self-learning AI sensor hub with integrated 6-axis IMU for gesture recognition and motion classification.
24-bit mono audio codec with I2S interface, supporting microphone input and headphone output.
Bus Interfaces
GPIO Map
Overview

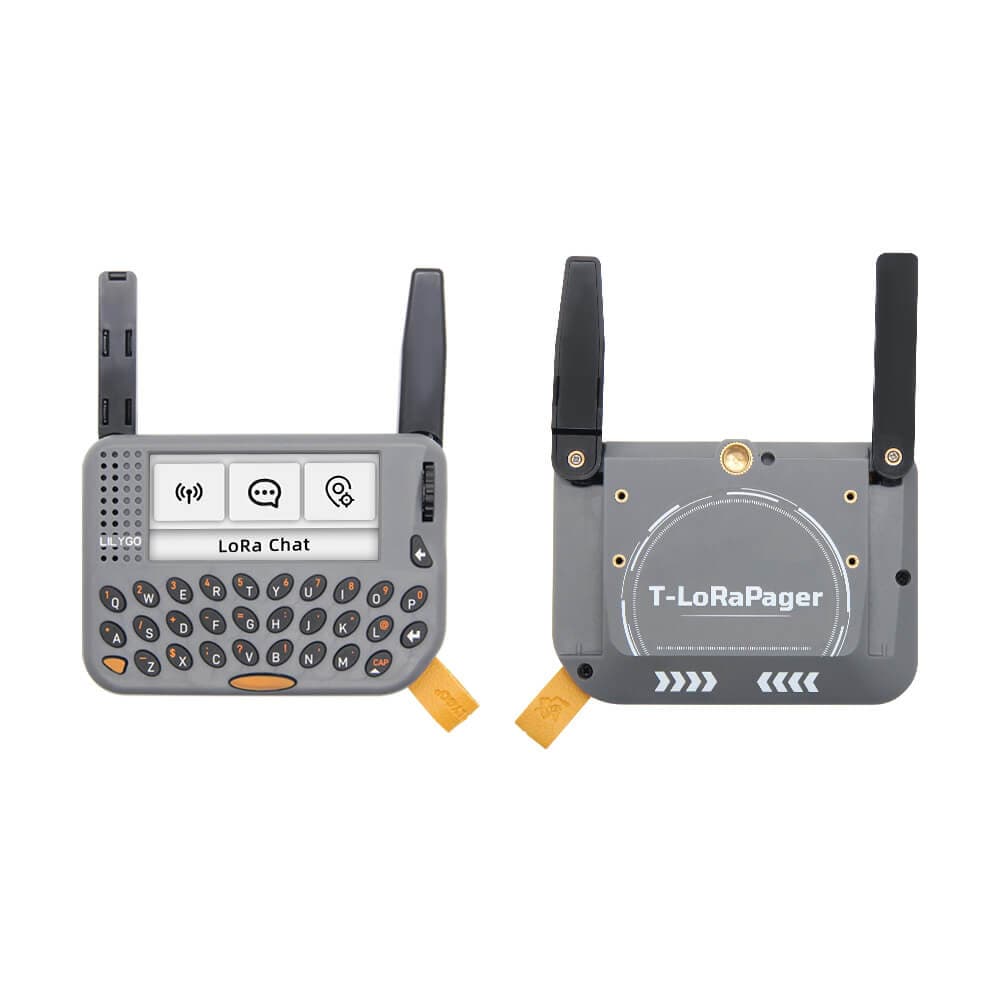

The LILYGO T-Lora Pager is a purpose-built off-grid communication device combining a compact form factor with a rich feature set. Centered on the ESP32-S3 with 16MB flash and 8MB PSRAM, it integrates a full QWERTY keyboard, encoder, and 2.33-inch IPS touchscreen (222×480) for a complete handheld messaging experience.
LoRa connectivity is provided by the SX1262 in multiple frequency variants (433/868/915/920 MHz), with a foldable external antenna that maximizes range while keeping the device compact. Location is provided by the u-blox MIA-M10Q GNSS module supporting all major constellations. The BHI260AP AI-enabled IMU adds smart gesture and motion detection.
Full audio capabilities come via the ES8311 audio codec with microphone, speaker, and 3.5mm headphone jack. RFID/NFC support and a microSD slot round out the feature set, making this ideal for Meshtastic field nodes, emergency communications, outdoor navigation, and LoRa-based chat applications.
Use Cases
3LoRa Messenger
Build an off-grid text messaging device using LoRa for range and low power.
Asset Tracking
Tracking the location and status of physical assets like vehicles, packages, and equipment.
IoT Gateway
Acting as a local IoT gateway that aggregates data from sensors, runs MQTT broker, Node-RED, or Home Assistant, and bridges to the cloud.
