T-Lora Pager Meshtastic Portable Node with Offline Maps
A complete Meshtastic build using the LILYGO T-Lora Pager — a pager-form-factor off-grid communicator with QWERTY keyboard, LoRa mesh radio, GPS, NFC, and optional SD-card offline maps for fieldwork and emergency communications.
Overview

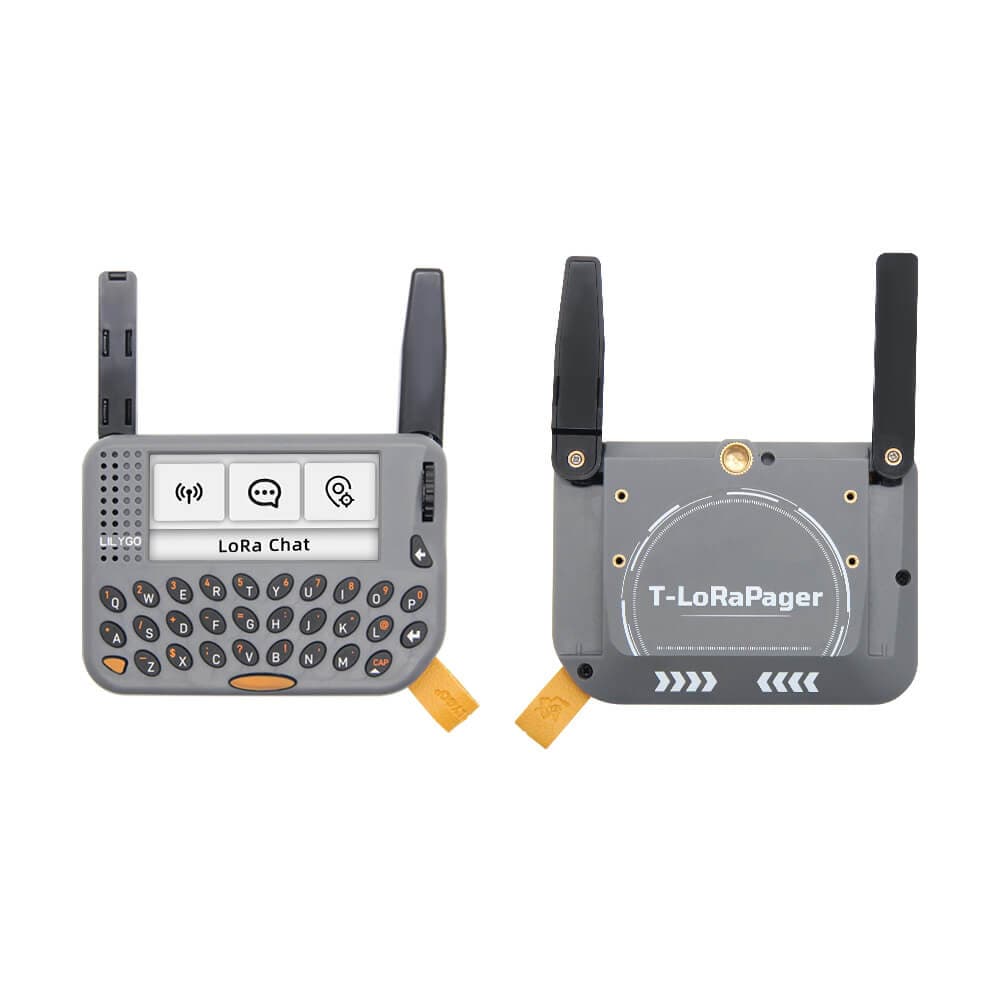

The LILYGO T-Lora Pager is a compact, keyboard-equipped LoRa mesh communicator that ships with Meshtastic firmware support, making it one of the most portable and self-contained Meshtastic nodes available. This project covers flashing Meshtastic firmware, configuring the device for a regional mesh network, and loading offline OpenStreetMap tiles onto an SD card for GPS-based navigation without internet connectivity.
Features
The device integrates an ESP32-S3 processor, SX1262 LoRa transceiver (available in 433/868/915/920 MHz bands), U-blox MIA-M10Q GPS module, NFC/RFID reader, BHI260AP IMU, microphone, speaker, and 3.5 mm headphone jack — all in a pocket pager form factor with a built-in QWERTY thumb keyboard and 2.33-inch 480×222 IPS display.
Meshtastic firmware enables encrypted, multi-hop text messaging and GPS position sharing over LoRa mesh networks without any internet or cellular infrastructure. Range between nodes typically extends 1–10 km in urban environments and up to 50 km line-of-sight.
For offline map navigation, the Meshtastic UI (MUI) can render raster map tiles stored on a MicroSD card. The OpenSource Society Malta guide documents how to prepare a MicroSD with Carto Dark tiles at zoom levels up to 18, enabling street-level navigation fully offline.
Getting Started
Connect an antenna BEFORE powering on to avoid damaging the SX1262 LoRa radio. Enter bootloader mode by holding the BOOT button while connecting USB. Use the Meshtastic web flasher (Chrome/Edge) to install the latest firmware, selecting your regional frequency band. Insert a MicroSD card formatted as exFAT with map tiles in the maps/CartoDark/ directory structure for offline navigation.
