# LILYGO T-Beam Supreme

> Upgraded T-Beam with ESP32-S3FN8, QMI8658 6-axis IMU, LoRa SX1262, dual GPS options (L76K or u-blox), SoftRF firmware support, and multi-frequency bands for Meshtastic and aircraft tracking.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** dev-board
- **Price:** ~$37.12
- **Product Readiness:** developer
- **CPU:** Xtensa LX7 dual-core @ 240MHz, FPU, AI instructions
- **CPU Architecture:** Xtensa LX7
- **CPU Cores:** 2
- **RAM:** 512KB SRAM
- **PSRAM:** 8MB
- **Flash:** 8MB
- **USB:** USB-C
- **Power:** 5V + Li-Ion 18650
- **Operating Voltage:** 3.3V
- **Antenna:** U.FL/IPEX

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0
- **Lora:** SX1262 433/868/915/920MHz

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Certifications

CE, FCC

## Compatible Firmware

arduino, micropython, esp-idf, meshtastic, softrf

## Use Cases

- asset-tracking
- iot-gateway
- long-range-iot

## Components

- **ESP32-S3FN8** (mcu): Xtensa LX7 dual-core at 240MHz with 8MB flash, 8MB PSRAM, WiFi 802.11 b/g/n, and BLE 5.0. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-beam-supreme&source=md-export)
- **SX1262** (radio): Long-range LoRa transceiver supporting 150–960 MHz with up to +22 dBm output for Meshtastic, SoftRF, and APRS. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fsemtech.com%2Fuploads%2Fdocuments%2FDS_SX1261-2_V2.1.pdf&ref=openhardware.directory&product=lilygo-t-beam-supreme&source=md-export)
- **QMI8658** (accelerometer): 6-axis inertial measurement unit with 3-axis accelerometer and 3-axis gyroscope via I2C/SPI. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.qstcorp.com%2Fupload%2Fpdf%2F202202%2F13-52-58%2520QMI8658A%2520Datasheet%2520Rev%2520A.pdf&ref=openhardware.directory&product=lilygo-t-beam-supreme&source=md-export)
- **L76K** (gps): Multi-constellation GNSS module supporting GPS, BeiDou, and GLONASS with 1PPS output. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.quectel.com%2FUploadImage%2FAndrd%2FQuectel_L76K_GNSS_Specification_V1.0.pdf&ref=openhardware.directory&product=lilygo-t-beam-supreme&source=md-export)

## Protocols

- **SPI**: CLK: GPIO12, MOSI: GPIO11, MISO: GPIO13
- **I2C**: SDA: GPIO4, SCL: GPIO3
- **UART**: TX: GPIO43, RX: GPIO44

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO4 | I2C SDA | I2C | digital-input, digital-output |
| GPIO3 | I2C SCL | I2C | digital-input, digital-output |

## Description

## Overview

The LILYGO T-Beam Supreme is the flagship upgrade to the popular T-Beam series, built around the ESP32-S3FN8 with 8MB PSRAM for enhanced processing power. It retains the T-Beam's defining combination of LoRa (SX1262), GPS, WiFi, and BLE while adding a QMI8658 6-axis IMU for motion-aware applications.

The board is available with either an L76K or u-blox GNSS module, covering multiple frequency variants (433 MHz, 868 MHz, 915 MHz, 920 MHz, and 144–148 MHz for aircraft tracking). SoftRF firmware is pre-flashed on select variants, enabling immediate use as an aircraft transponder receiver compatible with ADS-B and FLARM protocols.

The upgraded ESP32-S3 enables Meshtastic mesh networking at higher throughput, while the IMU adds orientation and motion detection for mobile tracking nodes, drone telemetry, and wildlife monitoring applications.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-beam-supreme&ref=openhardware.directory&product=lilygo-t-beam-supreme&source=md-export) — $37.12

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-beam-supreme&ref=openhardware.directory&product=lilygo-t-beam-supreme&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FT-Beam-Supreme&ref=openhardware.directory&product=lilygo-t-beam-supreme&source=md-export)

## Tags

`esp32-s3`, `lora`, `gps`, `meshtastic`, `softrf`, `imu`, `lilygo`

## Images

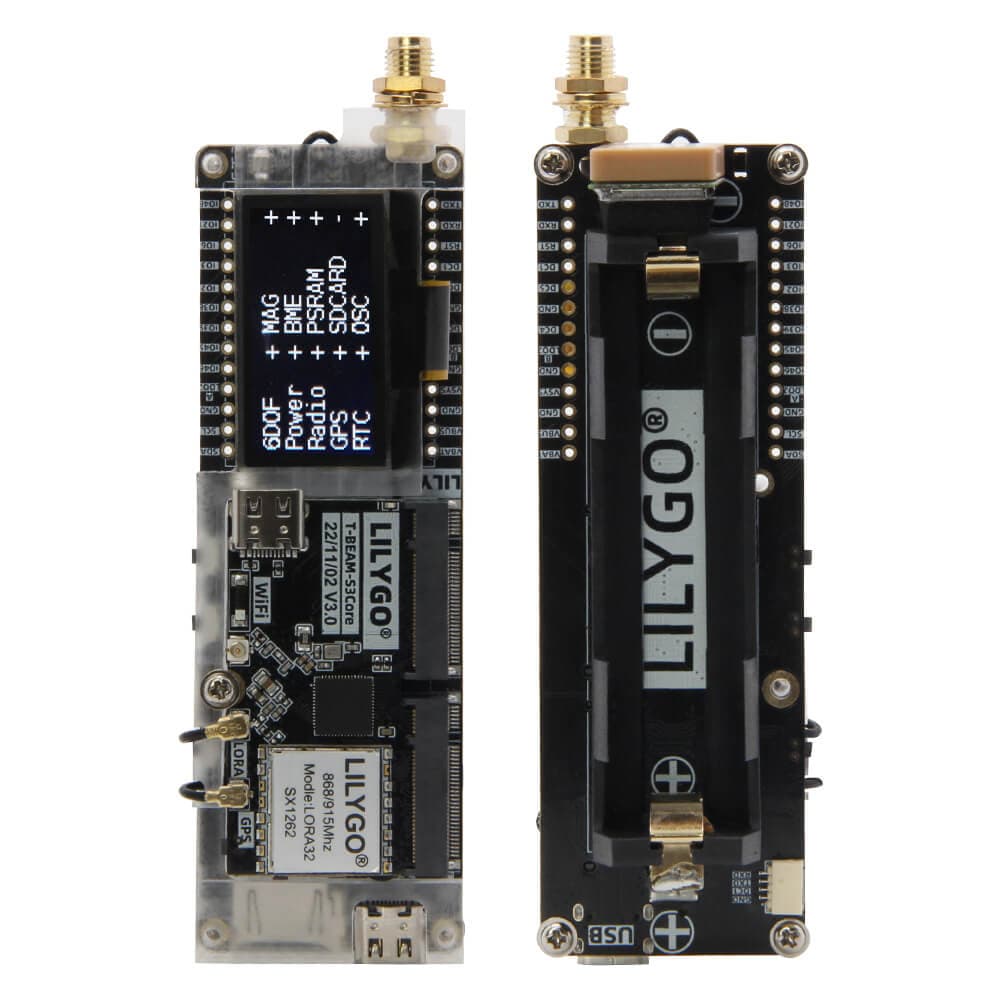

![LILYGO T-Beam Supreme](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-beam-supreme/4774d5b53664.jpg)
