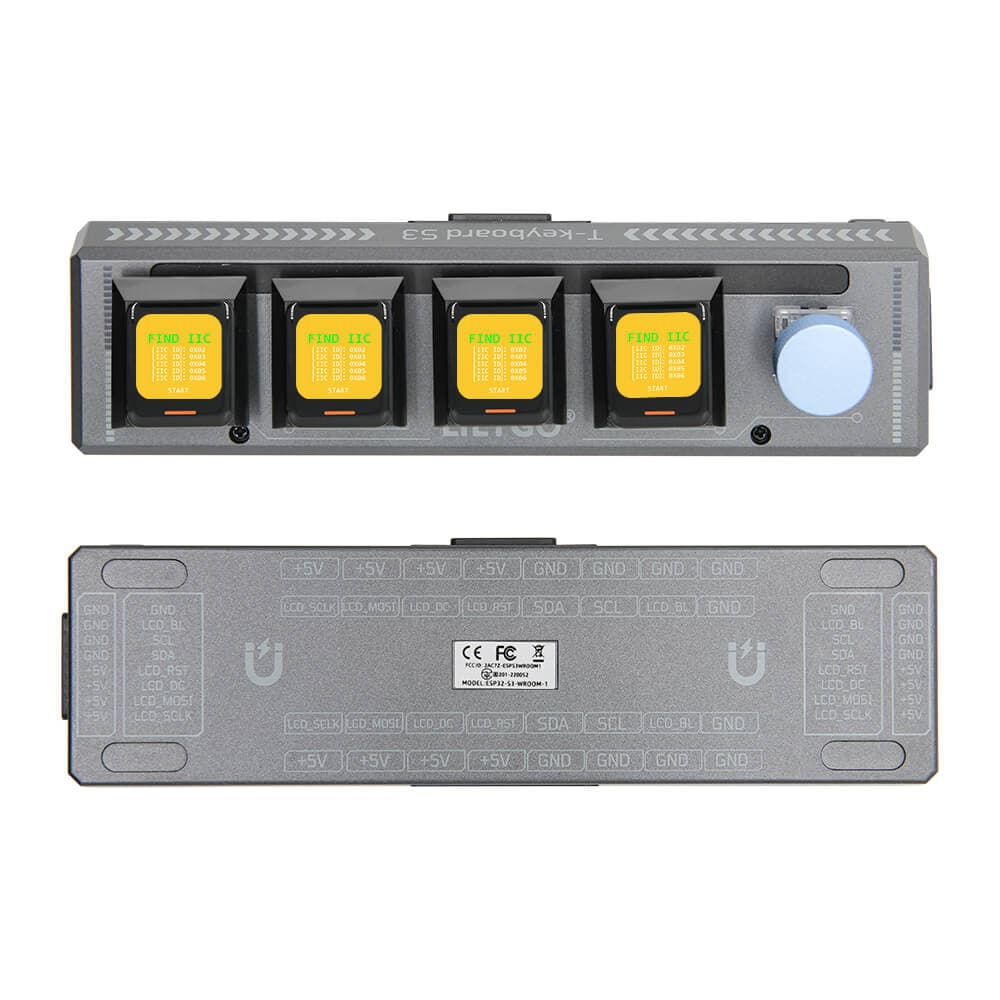

LILYGO T-Keyboard S3 Pro
Advanced ESP32-S3 programmable keyboard board with 4 built-in 0.85" TFT displays, 14 RGB LEDs, rotary encoder, STM32 co-processor, magnetic connectors for daisy-chaining up to 6 units.
$60.01
Tap any value to browse matching devices
Specifications
Components
Dual-core Xtensa LX7 MCU at up to 240 MHz with 8MB PSRAM, Wi-Fi 802.11 b/g/n and Bluetooth 5 LE
STM32 ARM Cortex-M0+ co-processor with 64KB Flash and 8KB RAM for low-level keyboard I/O management
0.85-inch TFT LCD display driver with 128×128 resolution, used for 4 key-cap displays
14 programmable WS2812 addressable RGB LEDs for keyboard backlighting and status indication
Bus Interfaces
Overview
The LILYGO T-Keyboard S3 Pro is a feature-rich programmable keyboard development platform based on the ESP32-S3R8 dual-core microcontroller. It integrates four 0.85-inch GC9107 TFT LCD displays (128×128 resolution each), 14 programmable WS2812 RGB LEDs, a rotary encoder, and magnetic quick-connect ports for modular expansion. A secondary STM32G030F6P6 co-processor handles low-level I/O tasks. The board supports daisy-chaining up to 6 units in a 2×3 grid via I2C communication expansion. With 16MB Flash, 8MB PSRAM, Wi-Fi, and Bluetooth 5, it is suited for custom macro keyboards, multi-display control panels, and programmable HMI systems. Both a primary unit and slave keyboard variant are available for building larger keyboard arrays.
Use Cases
5Macro Keyboard
Custom programmable keyboard with configurable keys, knobs, and macros for productivity.
HMI Panel
Human-machine interface panel with touchscreen for industrial or home control applications.
Programmable Keyboard
Fully programmable mechanical keyboard with custom key mappings, layers, and macros.
Prototyping
Rapid hardware prototyping and proof-of-concept development with breadboard-friendly form factors and accessible development environments.
