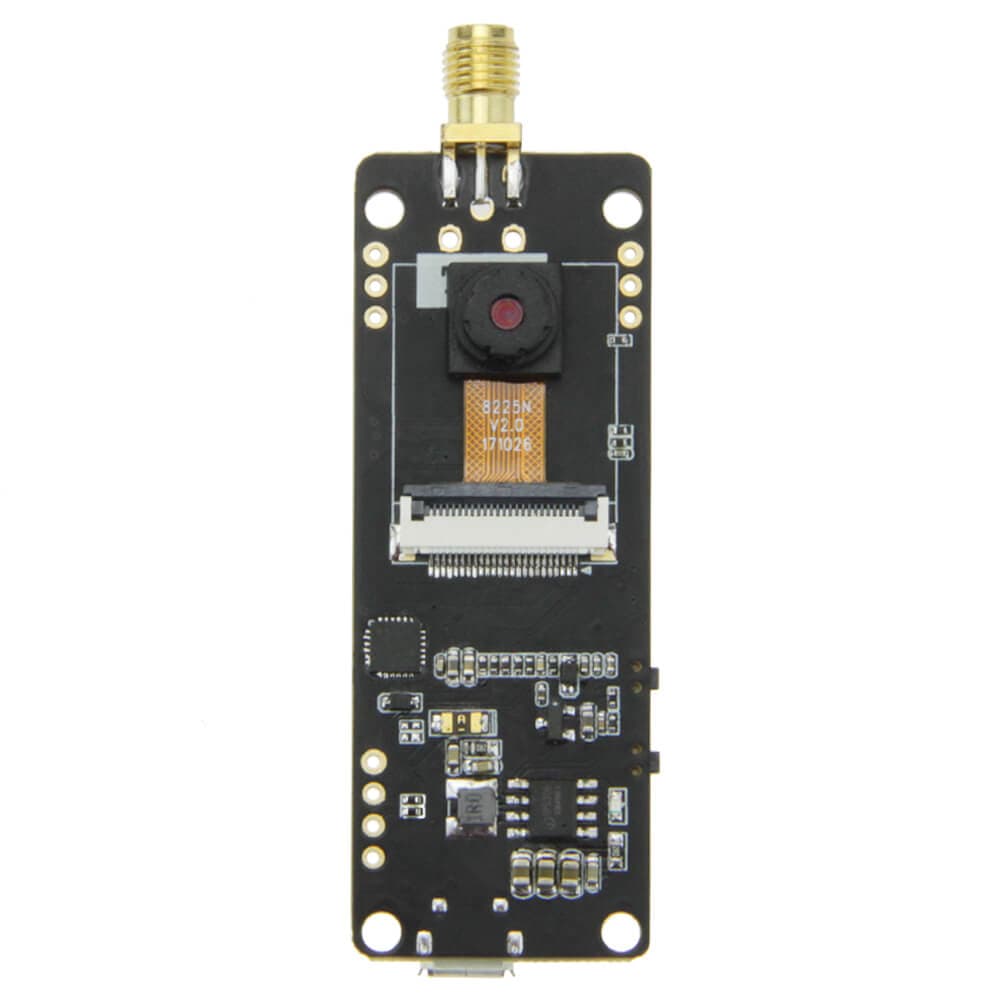

LILYGO T-Journal
Compact ESP32-PICO-D4 camera board with OV2640 2MP sensor, 0.91-inch SSD1306 OLED display, fisheye or normal lens options, WiFi, BLE, and LiPo battery support — a minimal wireless camera module for IoT vision projects.
$14.15
Tap any value to browse matching devices
Specifications
Components
ESP32 SiP with 4MB flash, 520KB SRAM, 240MHz dual-core Xtensa LX6, WiFi and BLE 4.2 in minimal package
OV2640 2-megapixel camera sensor with fisheye or normal lens option for wide-angle or standard field of view
128x32 monochrome OLED display for status and preview output
Bus Interfaces
Overview
The LILYGO T-Journal is a minimalist ESP32-PICO-D4 camera development board pairing an OV2640 2-megapixel image sensor with a tiny 0.91-inch SSD1306 OLED display. Available in fisheye or normal lens variants, it runs on the dual-core 240MHz Xtensa LX6 processor with 520KB SRAM and up to 4×16MB QSPI flash. Power comes from a USB 5V/1A input or a 3.7V LiPo battery via a JST 2-pin 1.25mm connector. The board draws approximately 160mA during operation and supports WiFi 802.11 b/g/n plus Bluetooth for wireless image streaming. A dedicated Wi-Fi antenna is included. The servo control output and red power LED round out the feature set. Programming is done via a USB cable and includes GPIO32 button and reset key.
Use Cases
4WiFi Camera Streaming
Stream live video over WiFi from embedded camera boards for surveillance and monitoring projects.
Computer Vision
Image recognition, object detection, and ML inference using embedded cameras and AI-capable processors.
Timelapse Photography
Build automated timelapse cameras capturing images at regular intervals for nature, construction, or art projects.
IoT Surveillance
Build IoT-connected surveillance systems with camera, motion detection, and remote alerting capabilities.
