Build Guideintermediate

E-Paper Domoticz & Weather Console

An e-paper console combining OpenWeatherMap forecasts with Domoticz home automation sensor data on a LILYGO T5 4.7" display, with configurable device IDX mapping.

Visit Project

Boards:ESP32ESP32-S3

Firmware:ArduinoPlatformIO

Use Cases:Display & DashboardHome AutomationEnvironmental MonitoringE-Paper & Signage

GitHub

Overview

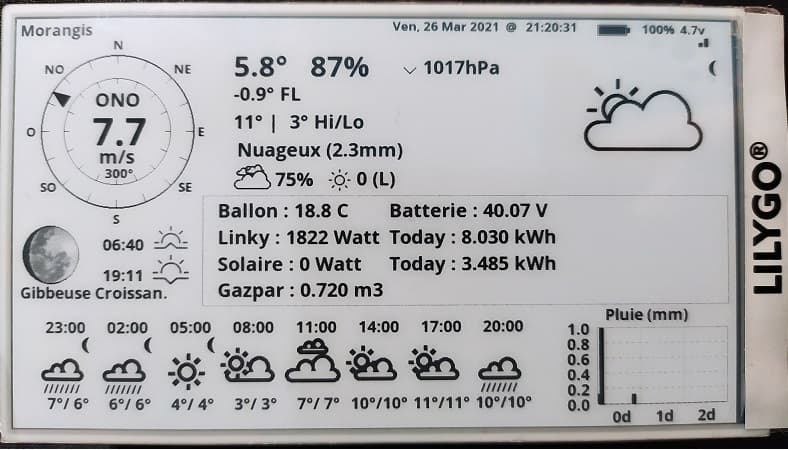

This project creates a dual-purpose information console on the LILYGO T5 4.7-inch e-paper display, combining real-time weather data from OpenWeatherMap with sensor readings from a Domoticz home automation server. The firmware fetches data from both sources and renders a unified dashboard on the e-ink screen.

Domoticz device integration uses an array-based configuration with device IDX and JSON field mapping, making it straightforward to add any Domoticz sensor or switch to the display. The project is a fork of David Bird's popular ESP32 e-Paper Weather Display, extended with Domoticz API integration. It includes PlatformIO build configuration and custom 3D mounting files for wall or desk installation.

Resources

GitHub Repository

Source code & project files

Devices Used in This Project

LILYGO T5 E-Paper S3 Pro Lite

Dev Board

A pocket-sized ESP32-S3 development board with a 4.7-inch capacitive touchscreen e-paper display (960×540, 16 grayscale), anti-glare glass, warm-toned backlight, MagSafe wireless charging, and comprehensive battery management.

Xtensa LX7 dual-core @ 240MHz, FPU, AI vector extensions, HW crypto (AES/SHA/RSA)512KB SRAM16MBWiFi 802.11 b/g/nBLE BLE 5.0

E Reader Smart Home Dashboard Weather Display Digital Signage Digital Photo Frame

~$71View
