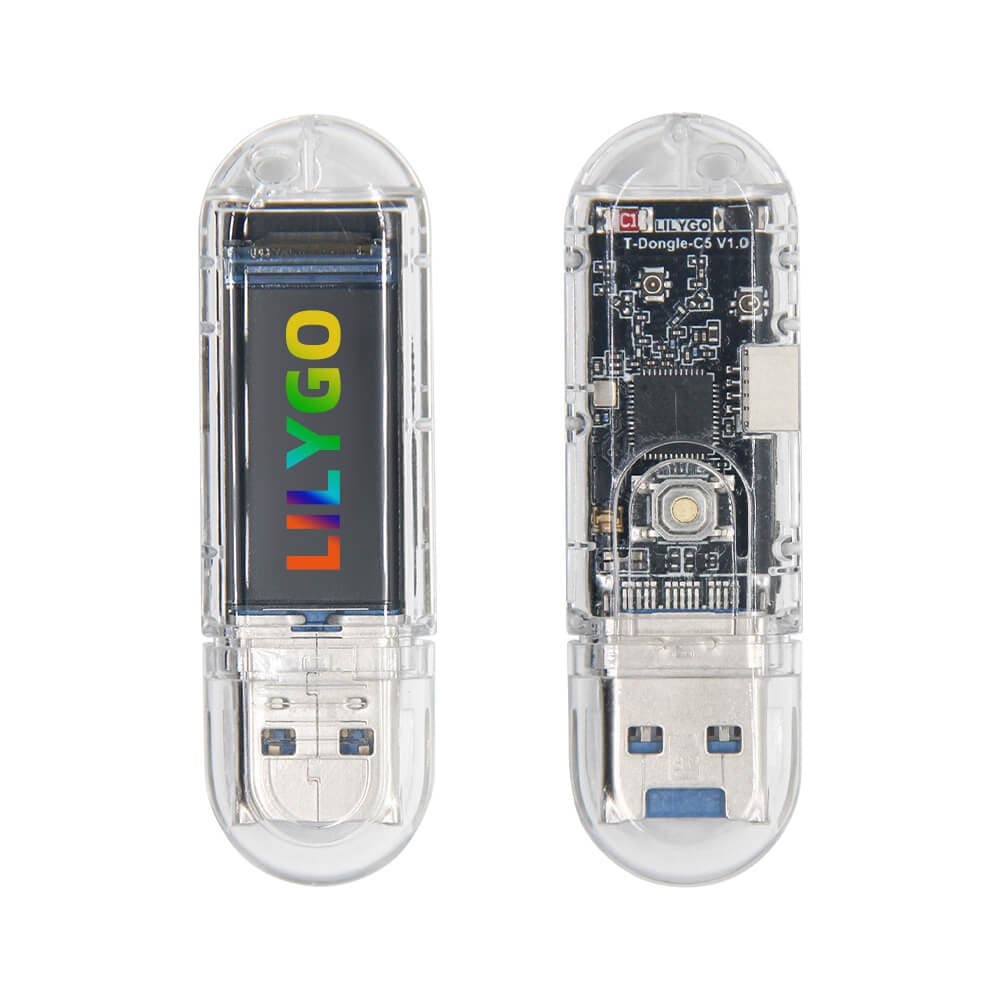

LILYGO T-Dongle C5
Compact USB dongle with ESP32-C5 featuring dual-band WiFi 6 (2.4/5GHz), Bluetooth 5, 802.15.4, 0.96-inch LCD, TF card slot, and 16MB flash — the first LILYGO dongle with WiFi 6 support.
$13.02
Tap any value to browse matching devices
Specifications
Components
Espressif ESP32-C5 RISC-V SoC with dual-band WiFi 6 (2.4/5GHz 802.11ax), Bluetooth 5, and 802.15.4 (Thread/Zigbee).
0.96-inch ST7735 IPS LCD with 80×160 resolution, 65K full color, 4-wire SPI interface.
Bus Interfaces
Overview
The LILYGO T-Dongle C5 is a compact USB stick-format development board powered by the Espressif ESP32-C5, the first ESP32 with dual-band WiFi 6 (802.11ax) operating on both 2.4GHz and 5GHz. The ESP32-C5 also supports Bluetooth 5, 802.15.4 (Thread/Zigbee), and integrates a RISC-V processor. The dongle includes a 0.96-inch ST7735 IPS LCD display (80×160 full-color), a TF/microSD card slot for data storage, 16MB flash, 8MB PSRAM, and plugs directly into a USB port for power and data. Compatible with Arduino IDE and ESP-IDF development frameworks, the T-Dongle C5 is ideal for portable WiFi 6 testing, network tools, and compact IoT applications requiring next-generation wireless connectivity.
Use Cases
3IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
IoT Gateway
Acting as a local IoT gateway that aggregates data from sensors, runs MQTT broker, Node-RED, or Home Assistant, and bridges to the cloud.
Environmental Monitoring
Monitoring environmental conditions like temperature, humidity, air quality, and weather data using remote sensors.
