USB-A dongle form factor board with ESP32-S2, 1.14-inch ST7789V IPS LCD, Wi-Fi, OTG, TF card slot, and Grove connector. Predecessor to the T-Dongle S3 series, ideal for portable USB IoT devices.

Upgraded T-Display S3 with a larger 2.33" IPS touchscreen, ESP32-S3R8, OTG charging via SY6970, QWIIC ports, ambient light/proximity sensor, and optional camera module expansion via POGOpin.

LILYGO T-TWR Rev2.1 is an ESP32-S3 based programmable walkie-talkie board featuring the SA868 UHF/VHF radio module, GPS, OLED display, and battery support for amateur radio applications.

Enhanced ESP32-S3 AMOLED development board with 1.91" RM67162 display, onboard RTC, PMU, SD card slot, capacitive touch, metal shielding, and external FPC antenna.

ESP32-S3 multi-protocol RF tool with CC1101 sub-GHz transceiver (300–928 MHz), 13.56 MHz RFID, IR transmit/receive, 1.9" IPS display, and rotary encoder for RF analysis and replay attacks.

Compact ESP32-S3 development board featuring a 1.47" RM67162 AMOLED display with QSPI interface, 16MB Flash, 8MB PSRAM, Wi-Fi, Bluetooth 5, and battery charging support.

LILYGO T-Beam BPF is an ESP32-S3 LoRa development board variant featuring an onboard Band Pass Filter for improved RF selectivity, designed for the 144–148 MHz amateur radio band with GPS and OLED display.

Compact USB-A dongle development board with ESP32-C6 RISC-V MCU, 1.14\" IPS LCD, WiFi 6, BLE 5.0, Zigbee 3.0, Thread, and microSD slot for portable IoT projects.

3.5-inch dual-mode display designed as a direct replacement for the Ender 3 stock LCD. STM32 based with touchscreen TFT and 12864 emulation modes, supports SD and USB printing.

Enhanced T-Echo with nRF52840, SX1262 LoRa, L76K GPS, BHI260AP IMU, 2400mAh battery, 1.54-inch e-paper display, vibration motor, buzzer, and 1/4-inch mount — Meshtastic-ready with extended runtime.

LILYGO T5 E-Paper S3 Pro is an ESP32-S3 board with a 4.7-inch 16-greyscale e-paper display, SX1262 LoRa, touch input, RTC, BQ25896/BQ27220 battery management, 16MB flash, 8MB PSRAM, and optional GPS.

All-in-one AI coding board for STEM education with ESP32-S3, 2.8-inch touchscreen, 2MP camera, microphone, speaker, environmental sensors, WiFi, Bluetooth 5, and pre-loaded AI models for vision, voice, and TinyML.

MKS/Makerbase 5-inch Klipper touchscreen panel based on Rockchip RK3328, with 800×480 IPS display, 1GB RAM, 8GB eMMC, WiFi, and USB-C power — purpose-built for 3D printer Klipper control interfaces.

ESP32-S3R8 development board with a 1.1-inch JD9613 AMOLED display (126×294), onboard trackball, 16MB flash, 8MB PSRAM, WiFi, and BLE 5 — a compact touchless navigation dev kit for creative UI and interactive IoT applications.

5-inch 800x480 IPS WiFi touchscreen controller for Klipper printers. ESP32-S3 based, 16MB flash, 8MB PSRAM, built-in battery for 30 minutes portable use, supports up to 50 Klipper printers.

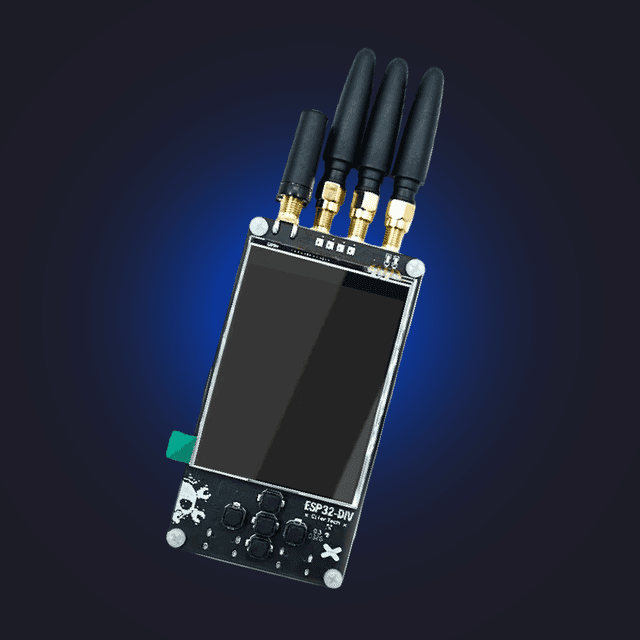

Open-source multi-band wireless development toolkit with ESP32-U, 2.8" ILI9341 TFT display, 5 antennas, and SD card slot covering WiFi, BLE, 2.4GHz, and Sub-GHz frequency bands for security research and spectrum analysis.

Pre-built digital mode QRP transceiver for amateur radio, supporting FT8, FT4, JS8, and WSPR on HF bands from 160m to 6m with ~5W output, OLED display, and single USB-C cable operation.

Compact IP-KVM remote management tool based on RV1106G3, capturing 1080p@60fps HDMI with H.264 encoding at 80-200ms latency. Features 100M Ethernet, USB HID/UMS emulation, Wake-on-LAN, web terminal, and optional 1.54-inch touch display.

ESP32-S3 e-paper development board with 4.7-inch 540×960 16-grayscale display (EDO47TC1), Wi-Fi, Bluetooth 5.0, PCF8563 RTC, 16MB flash, 8MB PSRAM, and optional capacitive touch overlay.

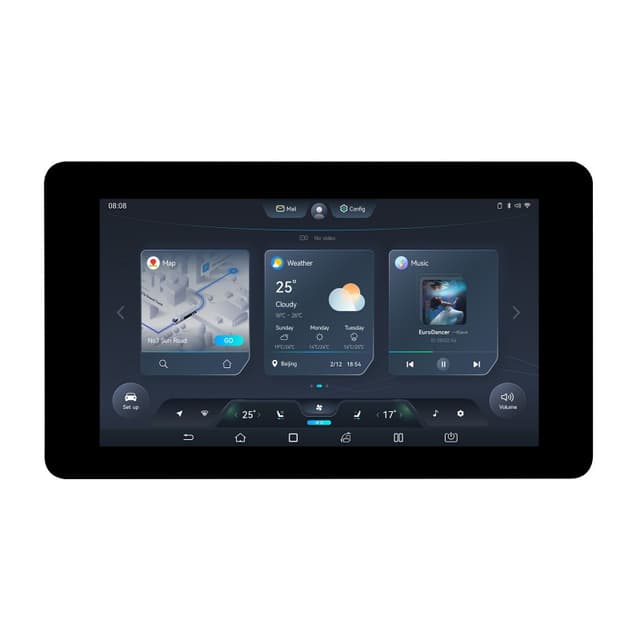

ESP32-S3 dev board with 7" capacitive touch IPS display (800x480), CAN/RS485 interfaces, and battery support. Built for HMI panels, industrial control, and IoT dashboards.

Compact 8-channel LoRaWAN gateway based on ESP32 and SX1303 + SX1250, with WiFi and Ethernet backhaul, 1.8-inch TFT display, and aluminum housing. Supports LoRaWAN Class A/C, TTN, and ChirpStack.

Dual-MCU board combining RP2040 and ESP32-C3, with a 1.14-inch ST7789V display, WiFi, BLE 5.0, and Arduino/MicroPython support — bringing Raspberry Pi Pico connectivity to wireless IoT projects.

Dual-MCU smart panel (ESP32-S3 + ESP32-H2) with 4" 480×480 IPS LCD (ST7701S), WiFi, BLE, native Zigbee/Thread/Matter via H2 co-processor, and optional RS485/CAN FD expansion for wall-mounted smart home controllers.

Advanced ESP32-S3 programmable keyboard board with 4 built-in 0.85" TFT displays, 14 RGB LEDs, rotary encoder, STM32 co-processor, magnetic connectors for daisy-chaining up to 6 units.

ESP32-S3 touch-sensitive bar display board with 8MB PSRAM, 16MB Flash, Wi-Fi, and Bluetooth 5, available in LED and AMOLED display variants for building custom HMI panels, smart home controls, and interactive displays.
