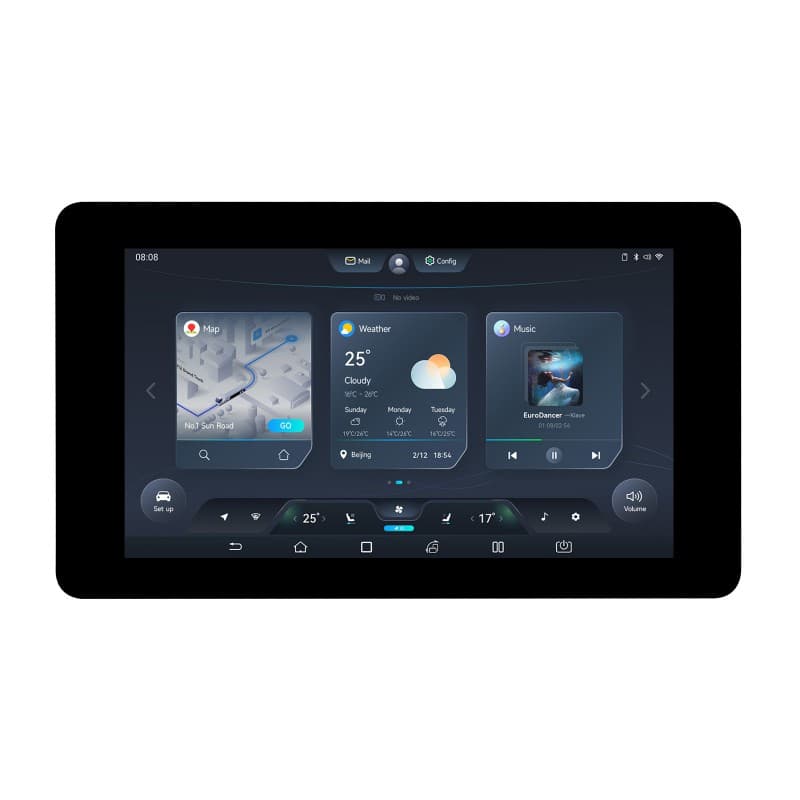

Waveshare ESP32-S3 Touch LCD 7
ESP32-S3 dev board with 7" capacitive touch IPS display (800x480), CAN/RS485 interfaces, and battery support. Built for HMI panels, industrial control, and IoT dashboards.
$59.85
Tap any value to browse matching devices
Specifications
Components
Xtensa LX7 dual-core processor at 240MHz with integrated WiFi and Bluetooth 5.0 LE, 512KB SRAM and 8MB PSRAM
800x480 RGB IPS panel with 65K colors, 345 cd/m² brightness, 170° viewing angle, 5-point capacitive touch with toughened glass
I2C-bus GPIO expander providing additional I/O pins for peripheral control
Bus Interfaces
Overview
The Waveshare ESP32-S3 Touch LCD 7 is a large-format development board featuring a 7-inch IPS capacitive touchscreen with 800x480 resolution. Powered by the ESP32-S3 dual-core processor at 240 MHz with 8MB PSRAM and 16MB flash, it is designed for HMI (Human-Machine Interface) applications, industrial dashboards, and smart home control panels.
Key Features
- Large 7" display: RGB IPS panel with 800x480 resolution, 65K colors, 345 cd/m² brightness, and 170° viewing angle
- 5-point capacitive touch: Toughened glass with I2C touch controller for multi-touch interaction
- Industrial interfaces: CAN bus and RS485 via terminal connectors for industrial communication
- Expandable storage: TF card slot supporting both SPI and MMC modes
- Battery support: Optional 3.7V lithium battery via PH2.0 connector (up to 2000mAh recommended)
- GPIO expansion: CH422G I2C GPIO expander for additional I/O
- Sensor input: ADC sensor interface via PH2.0 connector
- Wireless: WiFi 802.11 b/g/n (2.4 GHz) and Bluetooth 5.0 LE with onboard antenna
- Low power consumption: 5V 450mA typical
Dimensions
- With touch panel: 192.96 x 110.76 mm
- Display area: 164 x 97 mm
Use Cases
- Smart home wall-mounted control panels
- Industrial HMI and machine monitoring
- IoT sensor dashboards and data visualization
- Digital signage and information displays
- Building automation interfaces
Use Cases
5Embedded UI
Embedded graphical user interfaces for touchscreen devices, control panels, and custom displays.
Smart Home Dashboard
Wall-mounted or tabletop display showing Home Assistant dashboards, sensor readings, and smart home controls.
industrial-hmi
IoT Dashboard
Display real-time IoT sensor data on an embedded screen for local monitoring.
Digital Signage
Driving displays for advertising, information kiosks, or menu boards with 4K video and dynamic content.
