LuckFox PicoKVM

Overview

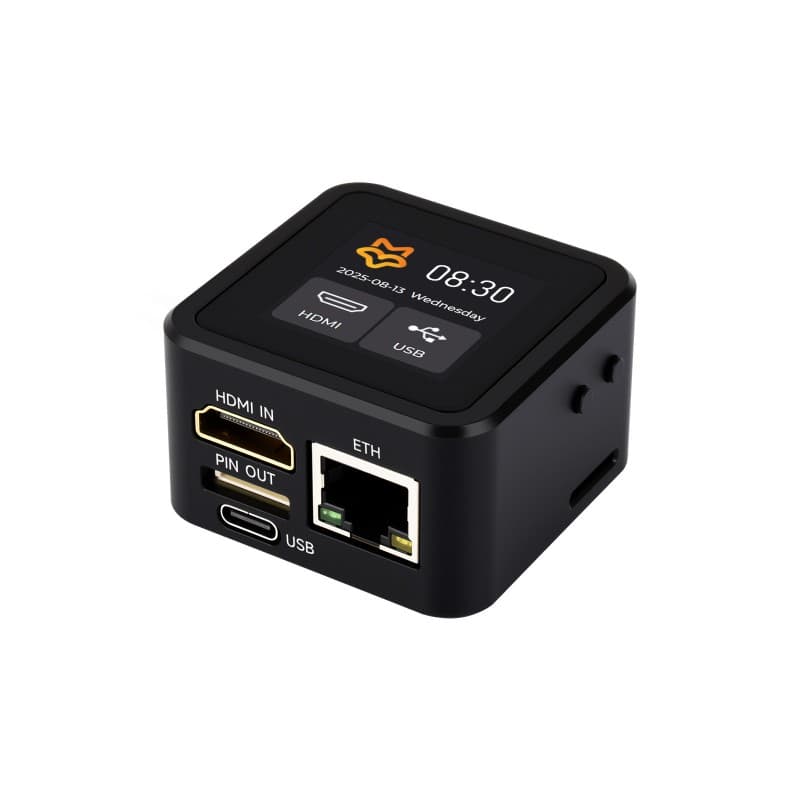

The LuckFox PicoKVM is a lightweight IP-KVM (keyboard, video, mouse over IP) remote management tool powered by the Rockchip RV1106G3 SoC. It captures HDMI video input at up to 1920x1080@60fps with H.264 encoding and streams it over 100Mbps Ethernet with 80-200ms latency, enabling remote BIOS/UEFI-level access to headless servers and workstations without requiring any software installation on the target machine.

The device simulates USB keyboard and mouse input via HID emulation and supports USB mass storage (UMS) emulation for mounting virtual drives, making it possible to remotely install operating systems or boot recovery tools. Additional features include Wake-on-LAN (WOL) for remote power-on, a web-based terminal interface, serial console access (1 channel), and custom script support for automation.

The full version includes a 1.54-inch 240x240 touchscreen display and a compact enclosure measuring just 48.5 x 48.5 x 29mm. With 256MB DDR3 RAM and 8GB eMMC storage, plus a TF card slot for expansion, the PicoKVM provides a cost-effective alternative to enterprise KVM-over-IP solutions for homelab administrators and data center operators who need out-of-band management capabilities.
