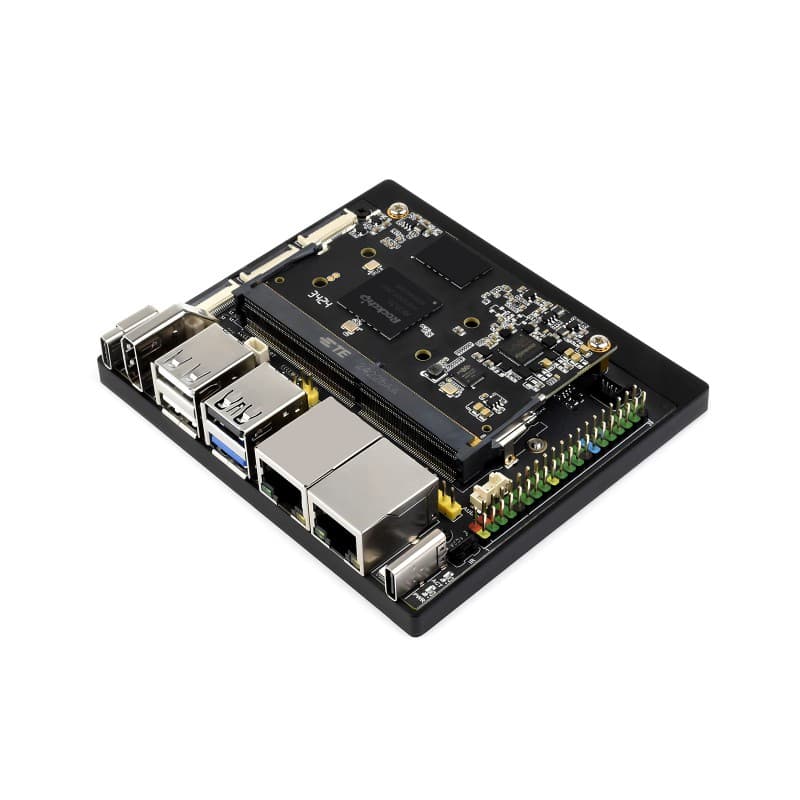

# LuckFox Omni3576 > Rockchip RK3576 octa-core edge computing SBC with 6 TOPS NPU, dual Gigabit Ethernet, WiFi 6, dual MIPI CSI camera inputs, HDMI 2.1 4K@120Hz output, and M.2 NVMe slot. Supports Debian, Ubuntu, Android 14, and Buildroot. ## Quick Facts - **Brand:** LuckFox - **Board Type:** sbc - **Price:** ~$129.99 - **CPU:** ARM Cortex-A72 4x @ 2.3GHz + Cortex-A53 4x @ 2.2GHz, Mali G52 MC3 GPU, 6 TOPS NPU - **CPU Architecture:** ARM Cortex-A72/A53 - **CPU Cores:** 8 - **RAM:** 4GB LPDDR4X - **Flash:** 32GB eMMC - **USB:** USB-C (USB 3.2 Gen 1 + DP) + USB 3.2 Gen 1 + 3x USB 2.0 - **Power:** 5V DC - **Operating Voltage:** 3.3V - **Operating Temp:** 0°C to 60°C - **Dimensions:** 103 × 90.5mm - **Weight:** 422g - **Antenna:** Built-in PCB antenna - **SD Card:** microSD ## Connectivity - **Wifi:** WiFi 6 (802.11ax) 2.4/5GHz - **Bluetooth:** BLE 5.0 - **Ethernet:** 2x Gigabit (1x PoE IEEE 802.3af) ## Use Cases - edge-ai - nvr-ip-camera - digital-signage - industrial-control - home-media-server ## Components - **RK3576** (soc): Rockchip RK3576 8nm SoC with 4x Cortex-A72 @ 2.3GHz + 4x Cortex-A53 @ 2.2GHz, Mali G52 MC3 GPU, 6 TOPS NPU, 4K encode/decode, dual MIPI CSI/DSI, PCIe 2.1, USB 3.2. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FOmni3576%2FPDF%2FRockchip_RK3576_Datasheet_V1.1-20240430.pdf&ref=openhardware.directory&product=waveshare-luckfox-omni3576&source=md-export) - **Mali G52 MC3** (gpu): ARM Mali G52 MC3 GPU integrated in RK3576, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1 for 2D/3D graphics acceleration. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdeveloper.arm.com%2FProcessors%2FMali-G52&ref=openhardware.directory&product=waveshare-luckfox-omni3576&source=md-export) ## GPIO Map | Pin | Name | Type | Functions | |-----|------|------|-----------| | GPIO0_A0 | I2C0_SDA | I2C | digital-input, digital-output | | GPIO0_A1 | I2C0_SCL | I2C | digital-input, digital-output | | GPIO1_A0 | UART2_TX | UART | digital-input, digital-output | | GPIO1_A1 | UART2_RX | UART | digital-input, digital-output | | GPIO1_A2 | SPI0_MOSI | SPI | digital-input, digital-output | | GPIO1_A3 | SPI0_MISO | SPI | digital-input, digital-output | | GPIO1_A4 | SPI0_CLK | SPI | digital-input, digital-output | | GPIO1_A5 | SPI0_CS0 | SPI | digital-input, digital-output | | GPIO1_B0 | UART8_TX | UART | digital-input, digital-output | | GPIO1_B1 | UART8_RX | UART | digital-input, digital-output | | GPIO1_B2 | PWM0 | PWM | digital-input, digital-output, pwm | | GPIO1_B3 | PWM1 | PWM | digital-input, digital-output, pwm | | GPIO1_C0 | GPIO | — | digital-input, digital-output | | GPIO1_C1 | GPIO | — | digital-input, digital-output | | GPIO1_C2 | GPIO | — | digital-input, digital-output | | GPIO1_C3 | GPIO | — | digital-input, digital-output | | GPIO1_D0 | GPIO | — | digital-input, digital-output | | GPIO1_D1 | GPIO | — | digital-input, digital-output | | GPIO1_D2 | GPIO | — | digital-input, digital-output | | GPIO1_D3 | GPIO | — | digital-input, digital-output | | GPIO2_A0 | GPIO | — | digital-input, digital-output | | GPIO2_A1 | GPIO | — | digital-input, digital-output | | GPIO2_A2 | GPIO | — | digital-input, digital-output | | GPIO2_A3 | GPIO | — | digital-input, digital-output | | GPIO2_B0 | GPIO | — | digital-input, digital-output | | GPIO2_B1 | GPIO | — | digital-input, digital-output | | GPIO2_B2 | GPIO | — | digital-input, digital-output | | GPIO2_B3 | GPIO | — | digital-input, digital-output | ## Description ## Overview The LuckFox Omni3576 is a high-performance edge computing single board computer built around the Rockchip RK3576 SoC. It features an octa-core big.LITTLE CPU architecture with four Cortex-A72 cores at 2.3GHz paired with four Cortex-A53 cores at 2.2GHz, manufactured on an 8nm process node. The integrated 6 TOPS NPU supports INT4/INT8/INT16/FP16/BF16/TF32 precision for versatile AI inference workloads including object detection, face recognition, and semantic segmentation. The board provides extensive connectivity with dual Gigabit Ethernet (one supporting PoE via IEEE 802.3af), WiFi 6 dual-band, and Bluetooth 5.0. For video, it supports HDMI 2.1 output at 4K@120Hz and DisplayPort 1.4 via USB-C, plus a MIPI DSI interface for direct panel connection. Dual 4-lane MIPI CSI interfaces enable stereo camera setups for computer vision applications. Storage is flexible with onboard eMMC (0/32/64GB options), a microSD slot, and an M.2 M-Key connector supporting NVMe SSDs in 2242/2260/2280 form factors. The 40-pin GPIO header is Raspberry Pi HAT-compatible, providing 28 usable GPIO pins with I2C, SPI, UART, and CAN FD interfaces. Additional features include an onboard microphone, IR receiver, RTC battery header, and a 5V fan header for active cooling. An optional aluminum alloy case with passive cooling is available for fanless deployments. ## Where to Buy - [Waveshare](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fluckfox%2Fboards-modules%2Fluckfox-omni3576.htm&ref=openhardware.directory&product=waveshare-luckfox-omni3576&source=md-export) — 129.99 - [Amazon](https://openhardware.directory/r?to=https%3A%2F%2Fwww.amazon.com%2FComputing-Development-Octa-Core-Processor-Luckfox-Omni3576-04000%2Fdp%2FB0DQQ229NS&ref=openhardware.directory&product=waveshare-luckfox-omni3576&source=md-export) — 129.99 - [LuckFox Official](https://openhardware.directory/r?to=https%3A%2F%2Fwww.luckfox.com%2FEN-Luckfox-Omni3576&ref=openhardware.directory&product=waveshare-luckfox-omni3576&source=md-export) — 129.99 ## Resources - [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fluckfox%2Fboards-modules%2Fluckfox-omni3576.htm&ref=openhardware.directory&product=waveshare-luckfox-omni3576&source=md-export) - [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH&ref=openhardware.directory&product=waveshare-luckfox-omni3576&source=md-export) - [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Omni3576%2FLuckfox-Omni3576-Introduction%2F&ref=openhardware.directory&product=waveshare-luckfox-omni3576&source=md-export) - [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FOmni3576%2FPDF%2FRockchip_RK3576_Datasheet_V1.1-20240430.pdf&ref=openhardware.directory&product=waveshare-luckfox-omni3576&source=md-export) - [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Omni3576%2FDownload%2F&ref=openhardware.directory&product=waveshare-luckfox-omni3576&source=md-export) ## Images ![LuckFox Omni3576](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-omni3576/58687443814a.jpg) ![LuckFox Omni3576](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-omni3576/a79bd54201cc.jpg) ![LuckFox Omni3576](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-omni3576/78b67aa71b60.jpg) ![LuckFox Omni3576](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-omni3576/0fefc5b4a0e6.jpg) ![LuckFox Omni3576](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-omni3576/2b9c3b6e16cb.jpg) --- [View full device page](https://openhardware.directory/devices/waveshare-luckfox-omni3576)
