# Raspberry Pi 5

> The latest Raspberry Pi single-board computer featuring a BCM2712 quad-core Cortex-A76 processor at 2.4GHz, PCIe 2.0, dual 4K HDMI output, USB 3.0, and available in 2GB, 4GB, 8GB, and 16GB RAM configurations.

## Quick Facts

- **Brand:** Raspberry Pi
- **Board Type:** sbc
- **Price:** ~$60
- **Product Readiness:** consumer
- **CPU:** BCM2712 Cortex-A76
- **CPU Architecture:** ARM64
- **CPU Cores:** 4
- **RAM:** 2GB / 4GB / 8GB / 16GB LPDDR4X
- **Flash:** microSD (external)
- **USB:** 2x USB 3.0 + 2x USB 2.0
- **Power:** USB-C 5V 5A
- **Operating Voltage:** 3.3V
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11ac
- **Bluetooth:** BLE 5.0
- **Ethernet:** Gigabit

## Open Source

- **Firmware:** No
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

raspberry-pi-os, ubuntu, home-assistant-os

## Use Cases

- home-server
- media-center
- home-assistant
- robotics
- education
- desktop-computing

## Protocols

- **I2C**: SDA: GPIO2, SCL: GPIO3
- **SPI**: MOSI: GPIO10, MISO: GPIO9, SCK: GPIO11, CE0: GPIO8, CE1: GPIO7
- **UART**: TX: GPIO14, RX: GPIO15
- **PCIe 2.0**:

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO2 | SDA1 — I2C1 Data (Pin 3) | I2C | i2c, digital-input, digital-output |
| GPIO3 | SCL1 — I2C1 Clock (Pin 5) | I2C | i2c, digital-input, digital-output |
| GPIO4 | GPIO4 — General Purpose (Pin 7) | — | digital-input, digital-output |
| GPIO5 | GPIO5 — General Purpose (Pin 29) | — | digital-input, digital-output |
| GPIO6 | GPIO6 — General Purpose (Pin 31) | — | digital-input, digital-output |
| GPIO7 | CE1 — SPI0 Chip Enable 1 (Pin 26) | SPI | spi, digital-input, digital-output |
| GPIO8 | CE0 — SPI0 Chip Enable 0 (Pin 24) | SPI | spi, digital-input, digital-output |
| GPIO9 | MISO — SPI0 MISO (Pin 21) | SPI | spi, digital-input, digital-output |
| GPIO10 | MOSI — SPI0 MOSI (Pin 19) | SPI | spi, digital-input, digital-output |
| GPIO11 | SCLK — SPI0 Clock (Pin 23) | SPI | spi, digital-input, digital-output |
| GPIO12 | GPIO12 — PWM0 (Pin 32) | — | digital-input, digital-output, pwm |
| GPIO13 | GPIO13 — PWM1 (Pin 33) | — | digital-input, digital-output, pwm |
| GPIO14 | TXD — UART0 Transmit (Pin 8) | UART | uart, digital-input, digital-output |
| GPIO15 | RXD — UART0 Receive (Pin 10) | UART | uart, digital-input, digital-output |
| GPIO16 | GPIO16 — General Purpose (Pin 36) | — | digital-input, digital-output |
| GPIO17 | GPIO17 — General Purpose (Pin 11) | — | digital-input, digital-output |
| GPIO18 | GPIO18 — PWM0 / PCM CLK (Pin 12) | — | digital-input, digital-output, pwm |
| GPIO19 | GPIO19 — PWM1 / PCM FS (Pin 35) | — | digital-input, digital-output, pwm |
| GPIO20 | GPIO20 — PCM DIN (Pin 38) | — | digital-input, digital-output |
| GPIO21 | GPIO21 — PCM DOUT (Pin 40) | — | digital-input, digital-output |
| GPIO22 | GPIO22 — General Purpose (Pin 15) | — | digital-input, digital-output |
| GPIO23 | GPIO23 — General Purpose (Pin 16) | — | digital-input, digital-output |
| GPIO24 | GPIO24 — General Purpose (Pin 18) | — | digital-input, digital-output |
| GPIO25 | GPIO25 — General Purpose (Pin 22) | — | digital-input, digital-output |
| GPIO26 | GPIO26 — General Purpose (Pin 37) | — | digital-input, digital-output |
| GPIO27 | GPIO27 — General Purpose (Pin 13) | — | digital-input, digital-output |

## Description

# Raspberry Pi 5

The Raspberry Pi 5 is the latest generation of the iconic single-board computer, delivering a significant performance leap over its predecessor. Powered by the Broadcom BCM2712 SoC with four Arm Cortex-A76 cores running at 2.4GHz, it offers 2-3x the CPU performance of Raspberry Pi 4.

## Key Highlights

- **PCIe 2.0 x1** interface for NVMe SSDs and other expansion
- **Dual 4Kp60 HDMI** display output via dedicated display controller
- **USB 3.0** ports (2x) alongside USB 2.0 ports (2x)
- **Gigabit Ethernet** with full throughput
- **802.11ac Wi-Fi** and **Bluetooth 5.0 / BLE**
- **40-pin GPIO** header maintaining backward compatibility
- Available in **2GB, 4GB, 8GB, and 16GB** LPDDR4X RAM variants

## RAM Options and Pricing

| RAM | Price (EUR) |
|-----|-------------|
| 2 GB | €125 |
| 4 GB | €169 |
| 8 GB | €229 |
| 16 GB | €379 |

## Use Cases

The Raspberry Pi 5 excels as a home server, media center, Home Assistant host, robotics controller, educational platform, and lightweight desktop computer. Its PCIe support makes it viable for NVMe-based NAS builds and more demanding workloads.

## Where to Buy

- [OpenELAB](https://openhardware.directory/r?to=https%3A%2F%2Fopenelab.io%2Fproducts%2Fraspberry-pi-5-options&ref=openhardware.directory&product=raspberry-pi-5&source=md-export) — $60

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.raspberrypi.com%2Fproducts%2Fraspberry-pi-5%2F&ref=openhardware.directory&product=raspberry-pi-5&source=md-export)

## Tags

`raspberry-pi`, `sbc`, `arm`, `cortex-a76`, `linux`, `pcie`, `4k-hdmi`

## Images

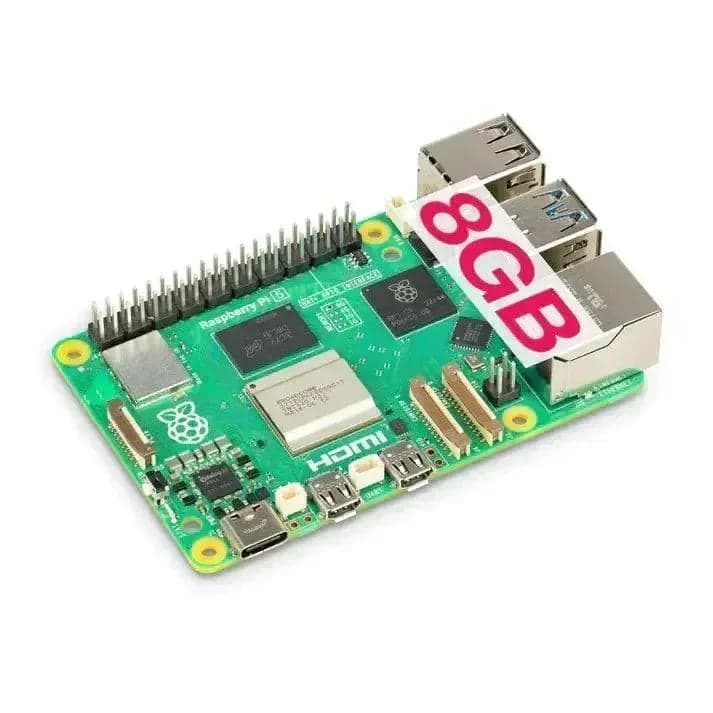

![Raspberry Pi 5](https://nbg1.your-objectstorage.com/openhardware-directory/entities/raspberry-pi-5/2dc80c45e2c9.webp)

---
