LattePanda 3 Delta

Overview

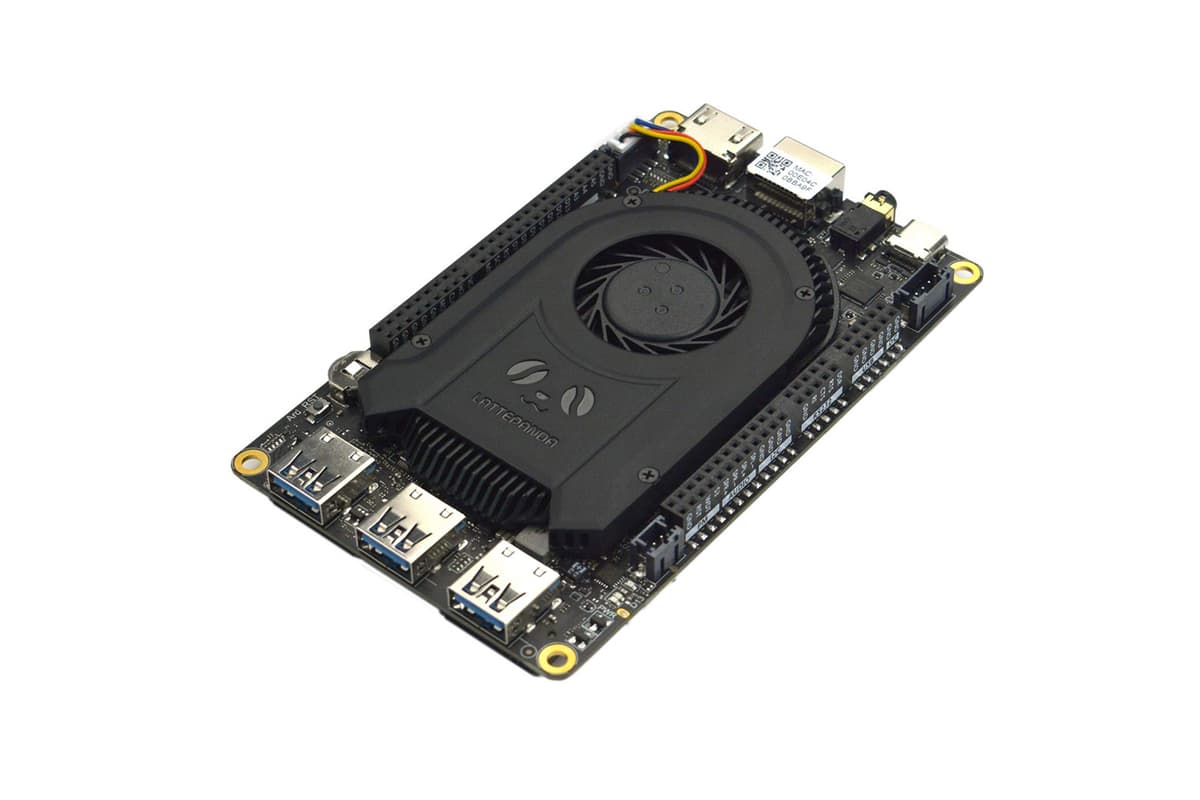

The LattePanda 3 Delta is a pocket-sized x86 single board computer powered by an Intel Celeron N5105 quad-core processor (2.0-2.9GHz turbo) with Intel UHD Graphics. Equipped with 8GB LPDDR4 RAM and 64GB eMMC storage, it runs full Windows 10/11 or Linux distributions out of the box, making it a versatile platform for edge computing, home automation servers, and embedded applications.

Connectivity is a strong suit — the board features Wi-Fi 6 (2.4/5GHz, 160MHz), Bluetooth 5.2, and Intel 2.5 Gigabit Ethernet. For display, it offers HDMI 2.0b, DisplayPort 1.4, and eDP outputs, all supporting up to 4K@60Hz HDR. Expansion includes M.2 M-key for NVMe SSDs, M.2 B-key for 4G/5G cellular modules, and multiple USB 3.2 ports including USB-C with Power Delivery and DisplayPort Alt Mode.

What sets the LattePanda apart from typical SBCs is its integrated Arduino Leonardo co-processor (ATMEGA32U4), providing direct hardware GPIO access with 12 analog inputs and 20 digital I/O pins (7 PWM). This makes it uniquely capable of combining full desktop computing with real-time sensor interfacing — ideal for robotics, industrial automation, and IoT gateway applications. The board includes built-in TPM 2.0 for security and draws only 10W TDP.
