# LuckFox Pico WebBee

> Ultra-compact Rockchip RV1103 Linux micro development board in USB dongle form factor with 10/100Mbps Ethernet, 64MB DDR2, 128MB NAND flash, and ABS protective case. Ideal for lightweight web servers, USB scripting, and smart home IoT.

## Quick Facts

- **Brand:** LuckFox
- **Board Type:** dev-board
- **Price:** ~$19.99
- **CPU:** ARM Cortex-A7 @ 1.2GHz + RISC-V MCU, 0.5 TOPS NPU
- **CPU Architecture:** ARM Cortex-A7
- **CPU Cores:** 1
- **RAM:** 64MB DDR2
- **Flash:** 128MB SLC NAND
- **USB:** USB Type-A 2.0 (Host/Device)
- **Power:** 5V via USB Type-A
- **Operating Voltage:** 3.3V
- **Dimensions:** 61.5 × 22.9 × 15.1mm
- **Weight:** 10g
- **SD Card:** microSD

## Connectivity

- **Ethernet:** 10/100 Mbps

## Use Cases

- lightweight-web-server
- usb-scripting-tool
- iot

## Components

- **RV1103** (soc): Rockchip RV1103 G1 SoC with single ARM Cortex-A7 @ 1.2GHz, RISC-V MCU co-processor, 0.5 TOPS NPU, 4MP ISP, integrated audio codec and 10/100M Ethernet MAC PHY. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Frockchips.net%2Fwp-content%2Fuploads%2F2025%2F03%2FRockchip-RV1103-Datasheet-V1.4-20230725.pdf&ref=openhardware.directory&product=waveshare-luckfox-webbee&source=md-export)
- **W25N01KV** (flash-memory): Winbond W25N01KV 128MB (1Gbit) SLC NAND flash memory for boot and system storage. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.winbond.com%2Fhq%2Fproduct%2Fcode-storage-flash-memory%2Fserial-nand-flash%2F%3F__locale%3Den%26partNo%3DW25N01KV&ref=openhardware.directory&product=waveshare-luckfox-webbee&source=md-export)

## Description

## Overview

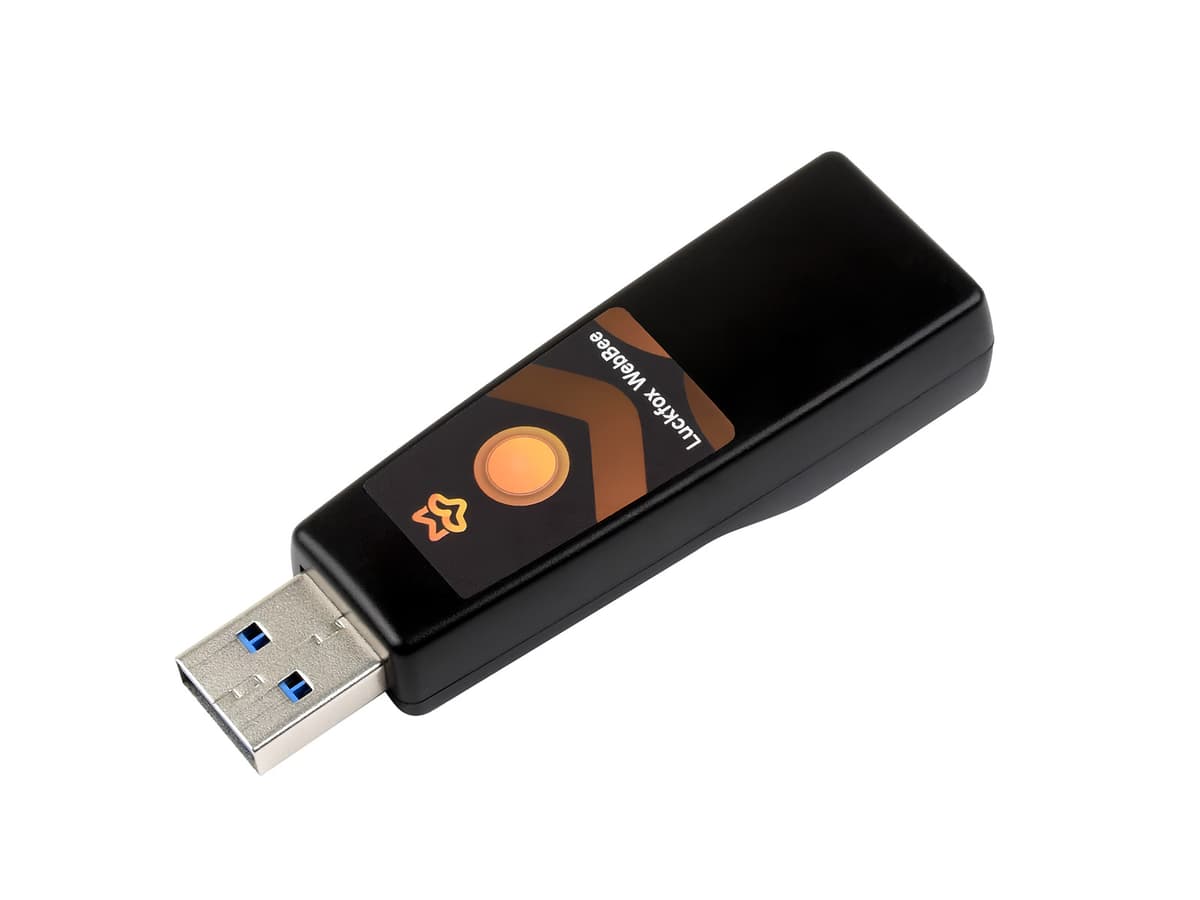

The LuckFox Pico WebBee is a cost-effective Linux micro development board built around the Rockchip RV1103 G1 SoC, packaged in a compact USB dongle form factor with an included ABS protective case. It integrates an ARM Cortex-A7 core running at 1.2GHz alongside a RISC-V MCU co-processor, with a 0.5 TOPS NPU for basic AI inference and a 4-megapixel ISP for vision processing.

The board features 64MB DDR2 RAM and 128MB SLC NAND flash (W25N01KV) for onboard storage, with a microSD card slot for expansion or alternative boot media. Connectivity is provided through a USB Type-A port (USB 2.0 Host/Device) and a 10/100Mbps Ethernet RJ45 port with integrated PHY, making it well-suited for networked applications without requiring external adapters.

At just 61.5 x 22.9 x 15.1mm and weighing only 10 grams, the WebBee is one of the smallest Linux-capable boards available. It supports Buildroot and Ubuntu Linux images, with SSH enabled by default for immediate remote access. The board is designed for lightweight web servers, USB scripting tools, and smart home automation devices where a full-size SBC would be overkill.

## Where to Buy

- [Waveshare](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fluckfox%2Fboards-modules%2Fluckfox-webbee.htm&ref=openhardware.directory&product=waveshare-luckfox-webbee&source=md-export) — 19.99
- [Amazon](https://openhardware.directory/r?to=https%3A%2F%2Fwww.amazon.com%2FWaveshare-Development-Integrates-Cortex-A7-Protective%2Fdp%2FB0DPMSRQJR&ref=openhardware.directory&product=waveshare-luckfox-webbee&source=md-export) — 21.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fluckfox%2Fboards-modules%2Fluckfox-webbee.htm&ref=openhardware.directory&product=waveshare-luckfox-webbee&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH%2Fluckfox-pico&ref=openhardware.directory&product=waveshare-luckfox-webbee&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Pico-WebBee&ref=openhardware.directory&product=waveshare-luckfox-webbee&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Frockchips.net%2Fwp-content%2Fuploads%2F2025%2F03%2FRockchip-RV1103-Datasheet-V1.4-20230725.pdf&ref=openhardware.directory&product=waveshare-luckfox-webbee&source=md-export)

## Images

![LuckFox Pico WebBee](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-webbee/118eed998985.jpg)
![LuckFox Pico WebBee](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-webbee/42d4a2cd6dc4.jpg)
![LuckFox Pico WebBee](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-webbee/93a2d9ed9b36.jpg)
![LuckFox Pico WebBee](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-webbee/7f1a774c92d7.jpg)

---
