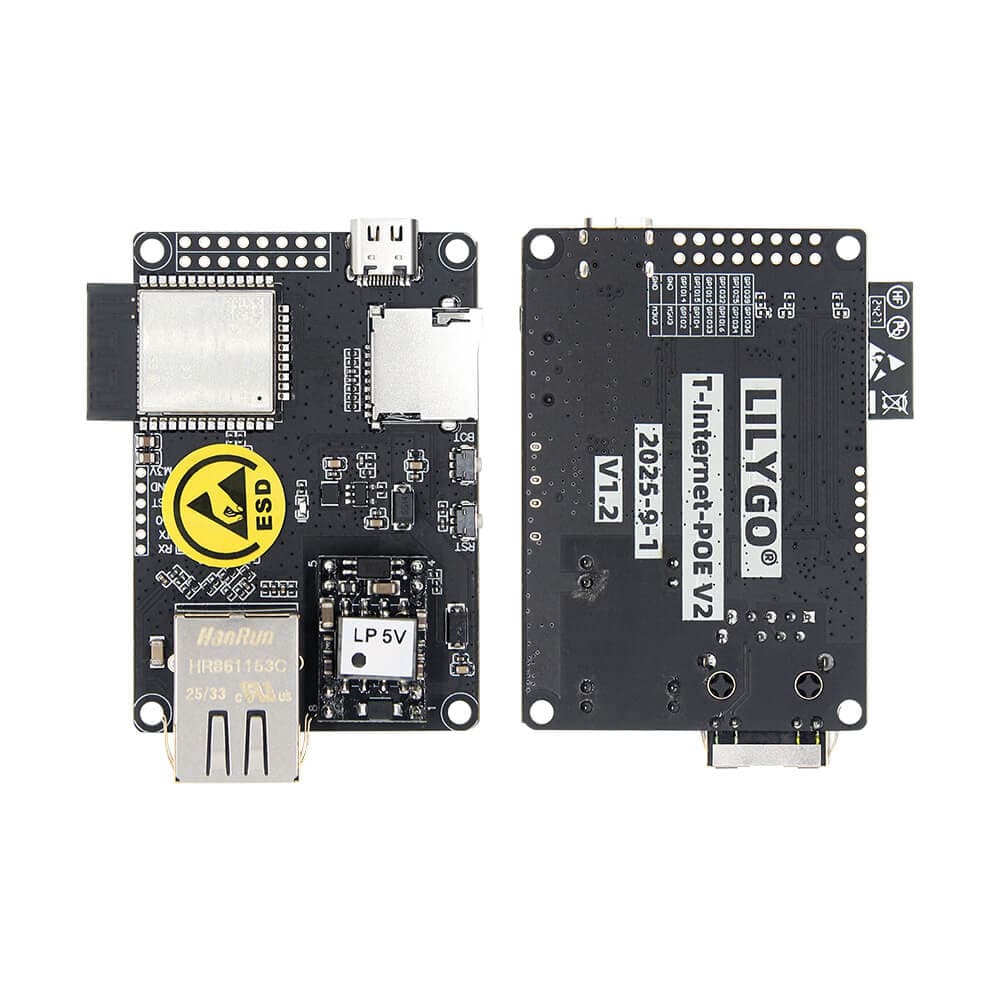

# LILYGO T-Internet-POE

> ESP32 board with LAN8720 10/100 Mbps Ethernet, Power-over-Ethernet (PoE 36–57V), WiFi, and BLE 4.2 — ideal for wired IoT gateways, industrial automation, and network-connected data loggers.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** dev-board
- **Price:** ~$16.01
- **Product Readiness:** developer
- **CPU:** Xtensa LX6 dual-core @ 240MHz, FPU, HW crypto (AES/SHA/RSA)
- **CPU Architecture:** Xtensa LX6
- **CPU Cores:** 2
- **RAM:** 520KB SRAM
- **Flash:** 4MB
- **USB:** USB-C 2.0
- **Power:** 5V + PoE
- **Operating Voltage:** 3.3V
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 4.2
- **Ethernet:** 10/100 Mbps (LAN8720)

## Open Source

- **Firmware:** Yes
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

arduino, esphome, platformio

## Use Cases

- iot-gateway
- environmental-monitoring
- smart-home
- iot

## Components

- **ESP32-D0WDQ6** (mcu): Espressif ESP32-D0WDQ6 dual-core Xtensa LX6 at 240MHz with WiFi and Bluetooth 4.2/BLE. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-internet-poe&source=md-export)
- **LAN8720** (ethernet-phy): Microchip LAN8720 single-chip 10/100 Mbps Ethernet PHY with RMII interface for wired network connectivity. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fww1.microchip.com%2Fdownloads%2Fen%2FDeviceDoc%2F8720a.pdf&ref=openhardware.directory&product=lilygo-t-internet-poe&source=md-export)

## Protocols

- **UART**: TX: GPIO1, RX: GPIO3
- **I2C**: SDA: GPIO21, SCL: GPIO22
- **SPI**: MOSI: GPIO13, MISO: GPIO12, CLK: GPIO14, CS: GPIO15

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO0 | Boot Button | GPIO | digital-input, strapping |
| GPIO4 | Free GPIO | GPIO | digital-input, digital-output, adc, pwm |
| GPIO12 | SD MISO | SPI | digital-input |
| GPIO13 | SD MOSI | SPI | digital-output |
| GPIO14 | SD CLK | SPI | digital-output |
| GPIO15 | SD CS | SPI | digital-output |
| GPIO21 | I2C SDA | I2C | digital-input, digital-output |
| GPIO22 | I2C SCL | I2C | digital-output |
| GPIO32 | Free GPIO | GPIO | digital-input, digital-output, adc, rtc |
| GPIO33 | Free GPIO | GPIO | digital-input, digital-output, adc, rtc |
| GPIO34 | Free ADC Input | ADC | digital-input, adc, input-only |
| GPIO35 | Free ADC Input | ADC | digital-input, adc, input-only |

## Description

## Overview

The LILYGO T-Internet-POE combines the Espressif ESP32 with a Microchip LAN8720 Ethernet PHY and onboard PoE circuitry (DP9900LP-5V, 36–57V input), enabling wired network deployment powered directly from a PoE switch without a separate power supply. This makes it ideal for permanent installations in network closets, industrial enclosures, or anywhere that Ethernet cable routing is more practical than WiFi.

The ESP32's dual-core Xtensa LX6 at 240MHz runs WiFi 802.11 b/g/n and Bluetooth 4.2 alongside the wired Ethernet, enabling bridge scenarios between wireless sensors and the wired network. With 4MB flash and a microSD card slot for local data logging, the board handles autonomous data collection and network forwarding tasks.

Onboard RST and BOOT buttons facilitate firmware updates, and a USB-C port with CH340C programmer option provides an alternative programming interface. Part of the LILYGO ETH Series, with comprehensive Arduino and ESP-IDF examples on GitHub for Ethernet, MQTT, and HTTP server applications.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-internet-poe&ref=openhardware.directory&product=lilygo-t-internet-poe&source=md-export) — $16.01

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-internet-poe&ref=openhardware.directory&product=lilygo-t-internet-poe&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FLilyGO-T-ETH-Series&ref=openhardware.directory&product=lilygo-t-internet-poe&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.lilygo.cc&ref=openhardware.directory&product=lilygo-t-internet-poe&source=md-export)

## Tags

`esp32`, `ethernet`, `poe`, `lan8720`, `lilygo`, `wired`, `iot-gateway`
