# LILYGO T-ETH-Lite

> Compact ESP32-S3 development board with wired Ethernet (W5500 SPI), WiFi, BLE, microSD slot, and optional PoE and camera shields for reliable networked IoT edge nodes.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** dev-board
- **Price:** ~$14.88
- **Product Readiness:** developer
- **CPU:** Xtensa LX7 dual-core @ 240MHz, FPU, AI instructions
- **CPU Architecture:** Xtensa LX7
- **CPU Cores:** 2
- **RAM:** 512KB SRAM
- **PSRAM:** 8MB
- **Flash:** 16MB
- **USB:** USB-C
- **Power:** 5V + PoE
- **Operating Voltage:** 3.3V
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD
- **Display:** none none none

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** Bluetooth 5.0 + Mesh
- **Ethernet:** 10/100 Mbps W5500

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Certifications

CE, FCC

## Compatible Firmware

arduino, esp-idf, esphome, micropython

## Use Cases

- wired-networking
- iot-gateway
- home-automation

## Components

- **ESP32-S3-WROOM-1** (mcu): Xtensa LX7 dual-core at 240MHz with 16MB flash, 8MB PSRAM, WiFi 802.11 b/g/n, and BLE 5.0. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3-wroom-1_wroom-1u_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-eth-lite&source=md-export)
- **W5500** (ethernet-phy): Full hardwired TCP/IP stack Ethernet controller with SPI interface, supporting 10/100 Mbps. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.wiznet.io%2Fimg%2Fproducts%2Fw5500%2Fw5500_ds_v109e.pdf&ref=openhardware.directory&product=lilygo-t-eth-lite&source=md-export)

## Protocols

- **SPI**: CLK: GPIO12, MOSI: GPIO11, MISO: GPIO13, CS: GPIO9
- **I2C**: SDA: GPIO4, SCL: GPIO5
- **UART**: TX: GPIO43, RX: GPIO44

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO11 | SPI MOSI | SPI | digital-input, digital-output |
| GPIO12 | SPI CLK | SPI | digital-input, digital-output |
| GPIO13 | SPI MISO | SPI | digital-input, digital-output |
| GPIO4 | I2C SDA | I2C | digital-input, digital-output |
| GPIO5 | I2C SCL | I2C | digital-input, digital-output |

## Description

## Overview

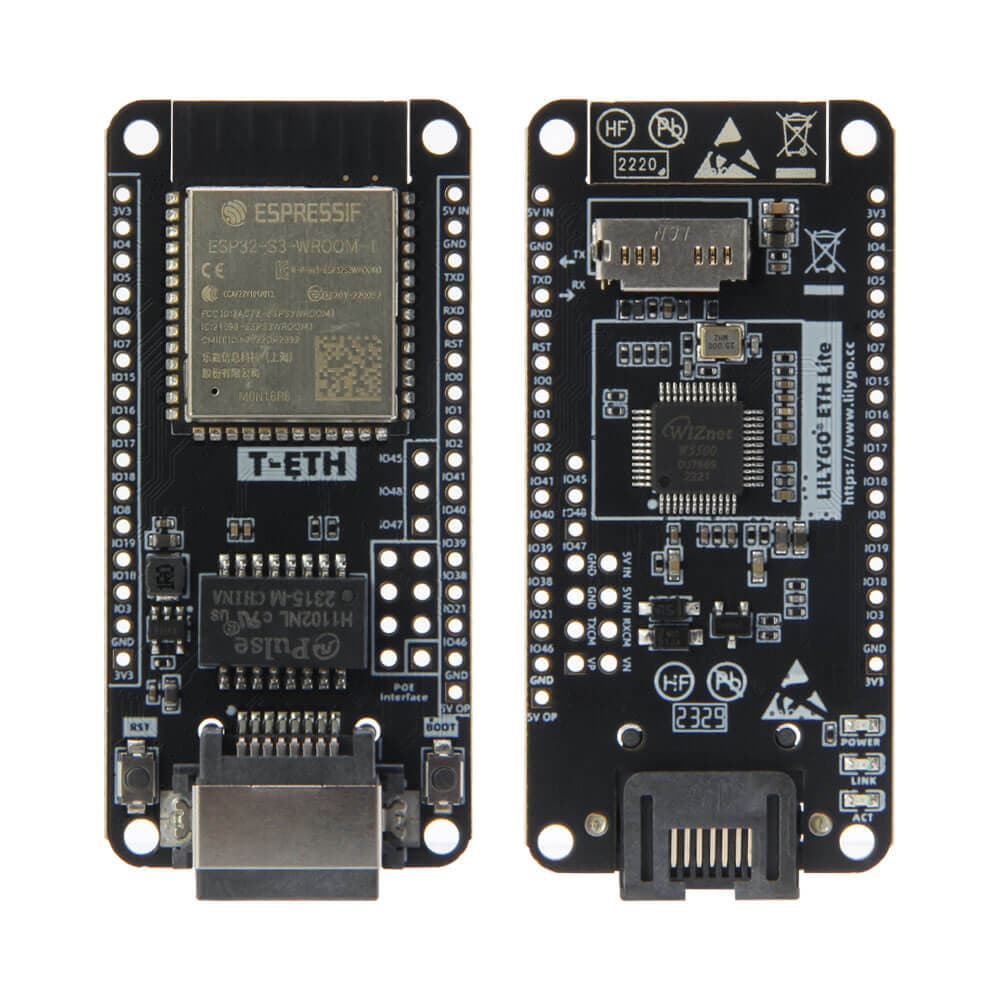

The LILYGO T-ETH-Lite is a compact development board that combines the powerful ESP32-S3 with wired Ethernet connectivity via a W5500 SPI Ethernet controller. This combination makes it ideal for IoT edge nodes and Home Assistant integrations where WiFi reliability is a concern.

The board supports multiple configurations: an ESP32-S3 variant with W5500 SPI Ethernet, and an older ESP32 variant with RTL8201 RMII Ethernet. Both variants feature 16MB flash, 8MB PSRAM, a microSD card slot, and boot/reset buttons. An optional PoE shield provides power-over-Ethernet capability, and a camera shield adds an OV2640 image sensor for vision applications.

ESPHome support makes it straightforward to integrate into Home Assistant, while the W5500's hardwired TCP/IP stack offloads networking overhead from the ESP32-S3, enabling reliable high-throughput applications.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-eth-lite&ref=openhardware.directory&product=lilygo-t-eth-lite&source=md-export) — $14.88

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-eth-lite&ref=openhardware.directory&product=lilygo-t-eth-lite&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FLilyGO-T-ETH-Series&ref=openhardware.directory&product=lilygo-t-eth-lite&source=md-export)

## Tags

`esp32-s3`, `ethernet`, `w5500`, `poe`, `esphome`, `lilygo`
