# LuckFox Pico Pi

> Rockchip RV1106 Linux development board with 40-pin RPi-compatible GPIO, 100M Ethernet, optional WiFi 6, 4G LTE M.2 slot, MIPI CSI camera, 4x USB-A host ports, 8GB eMMC, audio jack, and onboard microphone. Available in A (1 TOPS NPU, 256MB) and B (0.5 TOPS, 128MB) variants.

## Quick Facts

- **Brand:** LuckFox
- **Board Type:** dev-board
- **Price:** ~$41.99
- **CPU:** ARM Cortex-A7 @ 1.2GHz + RISC-V MCU, 1 TOPS NPU (Pi A) / 0.5 TOPS (Pi B)
- **CPU Architecture:** ARM Cortex-A7
- **CPU Cores:** 1
- **RAM:** 256MB DDR3L
- **Flash:** 8GB eMMC
- **USB:** USB-C (power/programming) + 4x USB-A 2.0 Host
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **Antenna:** U.FL/IPEX (WiFi variant)
- **SD Card:** microSD (expansion only)

## Connectivity

- **Wifi:** WiFi 6 (802.11ax) 2.4/5GHz
- **Bluetooth:** Bluetooth 5.2
- **Ethernet:** 10/100 Mbps
- **Cellular:** 4G LTE (via M.2 SIM7600G-H optional)

## Use Cases

- iot
- edge-ai
- nvr-ip-camera
- lightweight-web-server

## Components

- **RV1106** (soc): Rockchip RV1106G3 SoC with single ARM Cortex-A7 @ 1.2GHz, RISC-V MCU, 1 TOPS NPU, ISP 3.2 (5MP), integrated audio codec and 100M Ethernet MAC PHY. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Frockchips.net%2Fwp-content%2Fuploads%2F2025%2F03%2FRockchip-RV1106-Datasheet-V1.7-20231218.pdf&ref=openhardware.directory&product=waveshare-luckfox-pico-pi&source=md-export)
- **SIM7600G-H** (cellular-modem): SIMCom SIM7600G-H M.2 module providing 4G LTE Cat-4 with global band coverage for cellular IoT connectivity. Optional accessory. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.simcom.com%2Fproduct%2FSIM7600G-H.html&ref=openhardware.directory&product=waveshare-luckfox-pico-pi&source=md-export)

## Description

## Overview

The LuckFox Pico Pi is a feature-rich Linux micro development board powered by the Rockchip RV1106 SoC, available in two variants: the Pi A with the RV1106G3 (256MB DDR3L, 1 TOPS NPU) and the Pi B with the RV1106G2 (128MB DDR3L, 0.5 TOPS NPU). Both variants share the same base board design with 8GB onboard eMMC storage, a 40-pin Raspberry Pi HAT-compatible GPIO header, and extensive connectivity options.

The board includes a 100Mbps Ethernet port, a MIPI CSI 2-lane camera interface supporting the built-in ISP 3.2 for real-time image processing, four USB-A host ports via an onboard USB hub, a 3.5mm audio output jack, an onboard SMD microphone, and a microphone expansion header. An M.2 slot supports 4G LTE modules like the SIM7600G-H for cellular connectivity, and WiFi 6 with Bluetooth 5.2 is available on the W variants.

Additional features include a reserved PoE module header, RTC battery connector, DIP switches for USB/M.2 mode selection, TF card slot for storage expansion, and SIM card slot for cellular modules. The board supports Buildroot and Ubuntu Linux, making it well-suited for IoT gateways, AI vision projects, smart home hubs, and edge computing applications that benefit from the integrated NPU and camera processing pipeline.

## Where to Buy

- [Waveshare](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fluckfox%2Fboards-modules%2Fluckfox-pico-pi.htm&ref=openhardware.directory&product=waveshare-luckfox-pico-pi&source=md-export) — 41.99
- [Amazon](https://openhardware.directory/r?to=https%3A%2F%2Fwww.amazon.com%2Fdp%2FB0DPMSRQJR&ref=openhardware.directory&product=waveshare-luckfox-pico-pi&source=md-export) — 41.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fluckfox%2Fboards-modules%2Fluckfox-pico-pi.htm&ref=openhardware.directory&product=waveshare-luckfox-pico-pi&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH%2Fluckfox-pico&ref=openhardware.directory&product=waveshare-luckfox-pico-pi&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Pico-Pi&ref=openhardware.directory&product=waveshare-luckfox-pico-pi&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Frockchips.net%2Fwp-content%2Fuploads%2F2025%2F03%2FRockchip-RV1106-Datasheet-V1.7-20231218.pdf&ref=openhardware.directory&product=waveshare-luckfox-pico-pi&source=md-export)

## Images

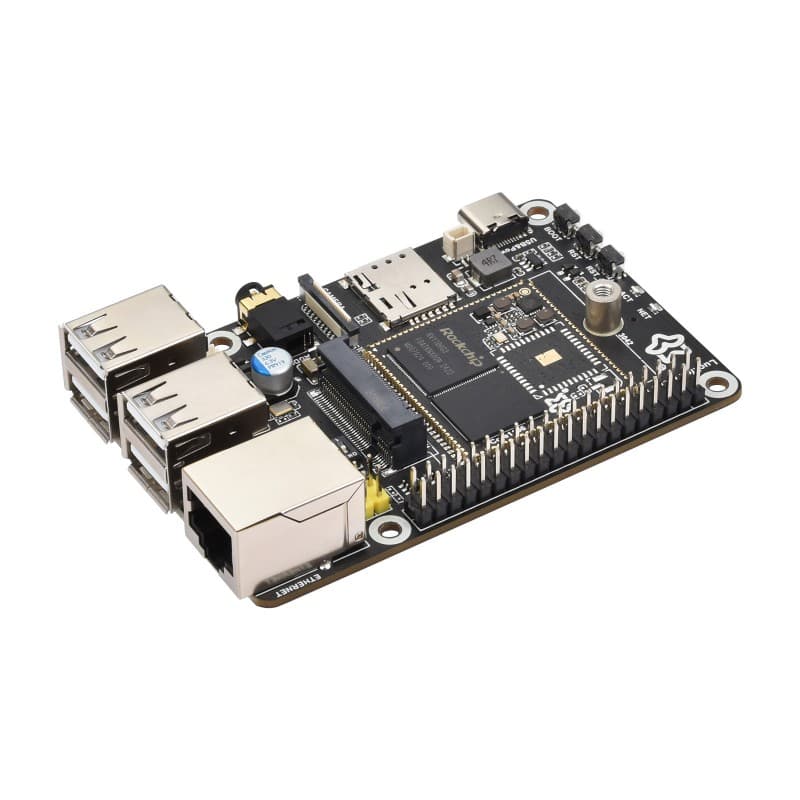

![LuckFox Pico Pi](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-pico-pi/ee0dbc166e17.jpg)
![LuckFox Pico Pi](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-pico-pi/72f7297bfe4f.jpg)
![LuckFox Pico Pi](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-pico-pi/29f64fba9ca4.jpg)
![LuckFox Pico Pi](https://nbg1.your-objectstorage.com/openhardware-directory/entities/waveshare-luckfox-pico-pi/1d1de18b329c.jpg)

---
