LuckFox Pico 86 Panel
Standard 86-type wall-mount smart panel with 4-inch 720x720 IPS capacitive touch display, Rockchip RV1106 SoC, 2-channel relay with optocoupler isolation, RS485, 100M Ethernet, onboard speaker and microphone, wide 6-30V DC input. Designed for smart home control and HMI applications.
$55.99
Tap any value to browse matching devices
Specifications
Components
Rockchip RV1106 SoC with ARM Cortex-A7 @ 1.2GHz, RISC-V MCU, up to 1 TOPS NPU, ISP 3.2, integrated audio codec and Ethernet MAC PHY.
Goodix GT911 capacitive touch controller supporting 5-point multi-touch input on the 4-inch IPS display.
Overview

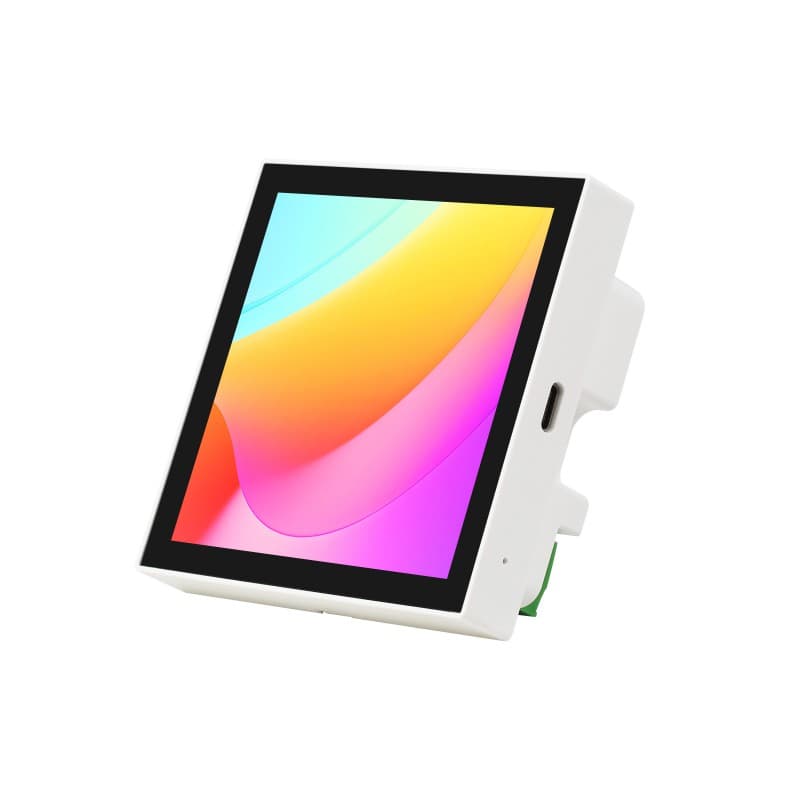

The LuckFox Pico 86 Panel is a smart home control panel designed for standard 86-type wall-mount installation. It features a 4-inch IPS capacitive touch display with 720x720 pixel resolution, 170-degree viewing angle, and 400cd/m2 brightness, driven by a GT911 touch controller supporting 5-point multi-touch input. The display connects via an RGB666 interface to the Rockchip RV1106 SoC.
Available in two SoC variants -- the RV1106G3 (256MB DDR3L, 1 TOPS NPU) and RV1106G2 (128MB DDR3L, 0.5 TOPS NPU) -- both feature 8GB onboard eMMC storage. The board integrates two relay channels with optocoupler isolation for direct load switching, RS485 with isolation and TVS protection for industrial communication, 100Mbps Ethernet, and onboard speaker output with microphone. Optional WiFi 6 and Bluetooth 5.2 modules are available.
The wide DC 6-30V power input with screw terminal makes it suitable for direct wiring into electrical installations. Additional features include a serial debug connector, RTC battery holder, and a 14-pin expansion header for custom peripherals. The panel supports Buildroot and Ubuntu Linux, making it programmable as a smart home thermostat, light controller, intercom panel, or industrial HMI terminal.
Use Cases
3Smart Switch Panel
Wall-mounted smart switch panel with touch display for controlling lights, HVAC, and other home automation systems.
Industrial Control
Controlling industrial equipment and processes with real-time I/O, CAN bus, and robust connectivity.
IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
