# LILYGO T-ETH Elite

> High-end ESP32-S3 Ethernet development board with W5500 SPI Ethernet, Power-over-Ethernet support, 16MB flash, 8MB PSRAM, and modular LoRa/LTE expansion shield system.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** ESP32-S3
- **Price:** ~$23.04
- **Product Readiness:** developer
- **CPU:** ESP32-S3R8
- **CPU Architecture:** Xtensa LX7 dual-core
- **RAM:** 512KB SRAM
- **PSRAM:** 8MB
- **Flash:** 16MB
- **USB:** USB-C
- **Power:** 5V + PoE
- **Operating Voltage:** 3.3V
- **Dimensions:** 50 × 67mm

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0
- **Ethernet:** 10/100 Mbps W5500

## Open Source

- **Firmware:** Yes
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

arduino, esp-idf, platformio

## Use Cases

- iot-gateway
- lorawan-gateway
- network-automation
- industrial-iot
- edge-computing

## Components

- **ESP32-S3R8** (mcu): Dual-core Xtensa LX7 at 240MHz with 512KB SRAM, Wi-Fi and BLE 5 — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-eth-elite-1&source=md-export)
- **W5500** (ethernet-phy): SPI-based hardwired TCP/IP Ethernet controller supporting TCP, UDP, ICMP, IPv4, ARP, PPPoE — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.wiznet.io%2Fwp-content%2Fuploads%2Fwizdoc%2FW5500_DS_V109E.pdf&ref=openhardware.directory&product=lilygo-t-eth-elite-1&source=md-export)

## Protocols

- **SPI**
- **I2C**
- **UART**
- **TCP/IP**

## Available Software

- **[Arduino IDE](https://openhardware.directory/r?to=https%3A%2F%2Fwww.arduino.cc%2F&ref=openhardware.directory&product=lilygo-t-eth-elite-1&source=md-export)**
- **[ESP-IDF](https://openhardware.directory/r?to=https%3A%2F%2Fidf.espressif.com%2F&ref=openhardware.directory&product=lilygo-t-eth-elite-1&source=md-export)**

## Description

## Overview

The LILYGO T-ETH Elite is a powerful ESP32-S3-based development board designed for advanced IoT gateway applications. It combines reliable wired Ethernet connectivity via the W5500 chip with the wireless flexibility of Wi-Fi and Bluetooth 5. The board supports Power-over-Ethernet (PoE), eliminating the need for a separate power supply in networked installations. An expansion shield system allows stacking LoRa (SX1262/SX1276/SX1278/SX1302) and LTE modules, enabling LoRaWAN gateway deployments. With 16MB flash and 8MB PSRAM, it is well-suited for demanding applications requiring network bridging, edge processing, and multi-protocol communication.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-eth-elite-1&ref=openhardware.directory&product=lilygo-t-eth-elite-1&source=md-export) — $23.04

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-eth-elite-1&ref=openhardware.directory&product=lilygo-t-eth-elite-1&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FLilyGO-T-ETH-Series&ref=openhardware.directory&product=lilygo-t-eth-elite-1&source=md-export)

## Tags

`esp32-s3`, `ethernet`, `poe`, `w5500`, `lorawan-gateway`, `iot-gateway`

## Images

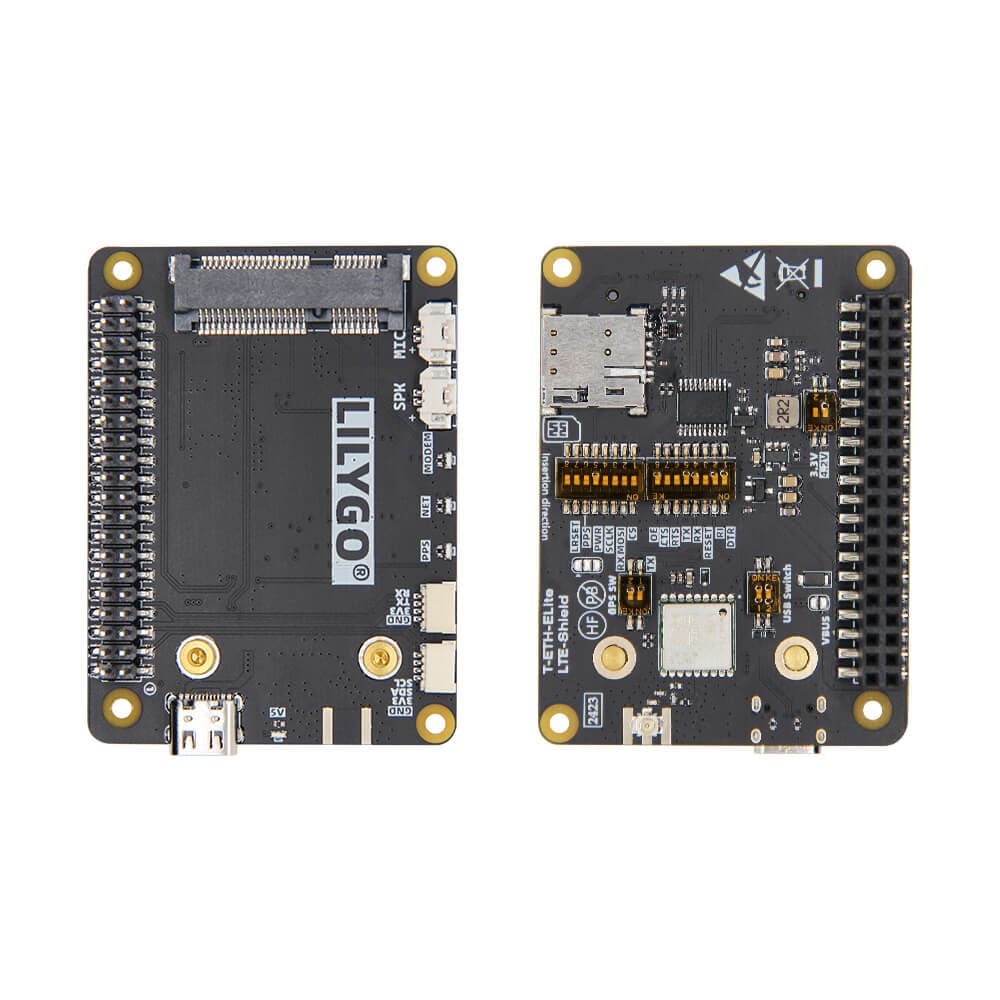

![LILYGO T-ETH Elite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-eth-elite-1/701ae2fea121.jpg)
![LILYGO T-ETH Elite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-eth-elite-1/0b89e147314d.jpg)
![LILYGO T-ETH Elite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-eth-elite-1/77160f00e454.jpg)
![LILYGO T-ETH Elite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-eth-elite-1/c5b076966b0e.jpg)
![LILYGO T-ETH Elite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-eth-elite-1/1bf1f3a1125b.jpg)
![LILYGO T-ETH Elite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-eth-elite-1/77160f00e454.jpg)
![LILYGO T-ETH Elite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-eth-elite-1/325c67ab8c33.jpg)
![LILYGO T-ETH Elite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-eth-elite-1/ef75411b0658.jpg)

---
