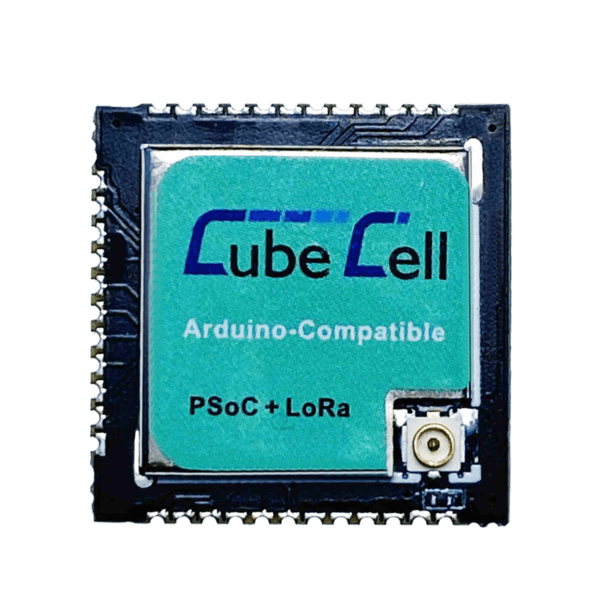

# Heltec CubeCell AM02 Module Plus > Ultra-compact LoRa/LoRaWAN module based on the ASR6502 SoC (ARM Cortex-M0+ @ 48MHz + SX1262), designed for SMT integration into custom IoT sensor nodes with 3.5uA deep sleep current. ## Quick Facts - **Brand:** Heltec Automation - **Board Type:** module - **Price:** ~$11.9 - **CPU:** ARM Cortex-M0,single-core @ 48MHz - **CPU Architecture:** ARM Cortex-M0+ - **CPU Cores:** 1 - **RAM:** 16KB SRAM - **Flash:** 128KB - **USB:** none (module) - **Power:** 1.8V-3.6V via VDD pin - **Operating Voltage:** 3.3V - **Operating Temp:** -20°C to +70°C - **Dimensions:** 20.4 × 20.4 × 3mm - **Weight:** 2g - **Antenna:** IPEX - **SD Card:** No ## Connectivity - **Lora:** SX1262 470-510/863-923MHz, 21dBm ## Certifications CE, FCC ## Use Cases - lorawan-sensor-node - environmental-monitoring - asset-tracking - soil-monitoring - irrigation-control - weather-station ## Components - **ASR6502** (mcu): Integrated SoC combining a PSoC 4000 series ARM Cortex-M0+ MCU at 48MHz with 128KB flash and 16KB SRAM, plus a Semtech SX1262 LoRa transceiver. Features 8-channel DMA, 12-bit ADC, and 3.5uA deep sleep. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FCubeCell%2FHTCC-AM02_Module%2FAM02.pdf&ref=openhardware.directory&product=heltec-cubecell-am02-module-plus&source=md-export) - **SX1262** (radio): Semtech SX1262 long-range, low-power sub-GHz RF transceiver supporting LoRa and FSK modulation from 150MHz to 960MHz. Maximum TX power +22dBm with -148dBm sensitivity. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fcdn.sparkfun.com%2Fassets%2F6%2Fb%2F5%2F1%2F4%2FSX1262_datasheet.pdf&ref=openhardware.directory&product=heltec-cubecell-am02-module-plus&source=md-export) ## Protocols - **UART** (UART1): TX: GPIO18, RX: GPIO17 - **UART** (UART2): TX: GPIO30, RX: GPIO29 - **SPI** (SPI1): MOSI: GPIO9, MISO: GPIO8, CLK: GPIO23, NSS: any GPIO - **I2C** (I2C0): SCL: GPIO39, SDA: GPIO40 - **I2C** (I2C1): SCL: GPIO36, SDA: GPIO37 - **SWD**: SWCLK: GPIO20, SWD: GPIO19 - **PWM**: PWM1: GPIO23, PWM2: GPIO23 ## GPIO Map | Pin | Name | Type | Functions | |-----|------|------|-----------| | GPIO1 | ADC2 — Analog Input | ADC | adc, digital-input, digital-output | | GPIO2 | ADC3 — Analog Input | ADC | adc, digital-input, digital-output | | GPIO3 | ADC1 — Analog Input | ADC | adc, digital-input, digital-output | | GPIO4 | General Purpose I/O | — | digital-input, digital-output | | GPIO5 | General Purpose I/O | — | digital-input, digital-output | | GPIO6 | General Purpose I/O | — | digital-input, digital-output | | GPIO7 | General Purpose I/O | — | digital-input, digital-output | | GPIO8 | SPI1 MISO / SCL1 | SPI | digital-input, digital-output | | GPIO9 | SPI1 MOSI / SDA1 | SPI | digital-input, digital-output | | GPIO10 | General Purpose I/O | — | digital-input, digital-output | | GPIO11 | General Purpose I/O | — | digital-input, digital-output | | GPIO12 | General Purpose I/O | — | digital-input, digital-output | | GPIO13 | General Purpose I/O | — | digital-input, digital-output | | GPIO14 | General Purpose I/O | — | digital-input, digital-output | | GPIO15 | SWD Debug | SWD | digital-input, digital-output | | GPIO16 | SWCLK Debug | SWD | digital-input, digital-output | ## Description ## Overview The Heltec CubeCell AM02 Module Plus (HTCC-AM02) is an ultra-compact LoRa/LoRaWAN module built around the ASR6502 system-on-chip, which integrates an ARM Cortex-M0+ MCU from the Cypress PSoC 4000 series with a Semtech SX1262 LoRa transceiver. Measuring just 20.4 x 20.4 x 3mm with a weight of only 2g, it is designed for direct SMT integration into custom PCBs via its 1.27mm stamp-edge castellated pads. The module supports LoRaWAN 1.0.2 protocol with a maximum transmit power of +21dBm and receiving sensitivity down to -135dBm, enabling communication ranges of up to 10+ miles in rural line-of-sight conditions. With a deep sleep current consumption of just 3.5uA, it is purpose-built for battery-powered field deployments where devices must operate for months or years on a single charge. The AM02 offers 16 general-purpose GPIO pins, 3 channels of 12-bit ADC, two UART interfaces, SPI, I2C, PWM outputs, and an 8-channel DMA engine. It is fully Arduino-compatible through Heltec's CubeCell-Arduino framework and supports AT transparent transmission commands for integration without custom firmware development. The IPEX antenna connector allows use of external LoRa antennas for optimal range in deployed installations. ## Where to Buy - [Heltec Official Store](https://openhardware.directory/r?to=https%3A%2F%2Fheltec.org%2Fproject%2Fhtcc-am02%2F&ref=openhardware.directory&product=heltec-cubecell-am02-module-plus&source=md-export) — 11.90 - [Eckstein Shop](https://openhardware.directory/r?to=https%3A%2F%2Feckstein-shop.de%2FHeltec-CubeCell-AM02-Module-Plus-EN&ref=openhardware.directory&product=heltec-cubecell-am02-module-plus&source=md-export) — 12.95 ## Resources - [product](https://openhardware.directory/r?to=https%3A%2F%2Fheltec.org%2Fproject%2Fhtcc-am02%2F&ref=openhardware.directory&product=heltec-cubecell-am02-module-plus&source=md-export) - [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FHelTecAutomation%2FCubeCell-Arduino&ref=openhardware.directory&product=heltec-cubecell-am02-module-plus&source=md-export) - [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.heltec.org%2Fdocs%2Fdevices%2Fopen-source-hardware%2Fcubecell-series%2Fhtcc_am02%2F&ref=openhardware.directory&product=heltec-cubecell-am02-module-plus&source=md-export) - [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FCubeCell%2FHTCC-AM02_Module%2FAM02.pdf&ref=openhardware.directory&product=heltec-cubecell-am02-module-plus&source=md-export) - [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FCubeCell%2FHTCC-AM02_Module%2Fsch_pcb_package.zip&ref=openhardware.directory&product=heltec-cubecell-am02-module-plus&source=md-export) ## Tags `lora`, `lorawan`, `iot`, `module`, `low-power`, `cubecell`, `asr6502`, `sx1262` ## Images ![Heltec CubeCell AM02 Module Plus](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-cubecell-am02-module-plus/f0ed0e1be2af.png) ![Heltec CubeCell AM02 Module Plus](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-cubecell-am02-module-plus/e73ab1dacdd1.png) ![Heltec CubeCell AM02 Module Plus](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-cubecell-am02-module-plus/4c114d59a69e.png) --- [View full device page](https://openhardware.directory/devices/heltec-cubecell-am02-module-plus)
