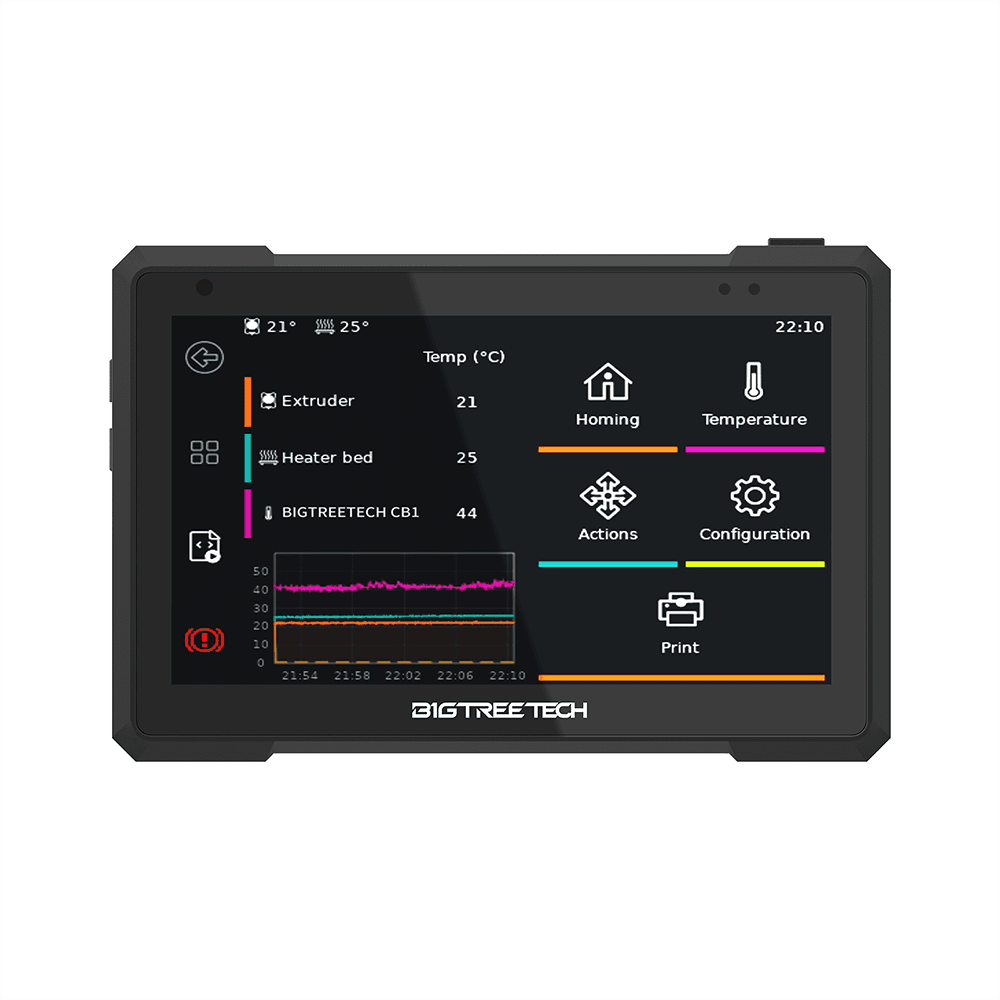

# BigTreeTech PAD 7

> 7-inch all-in-one 3D printer control panel with 1024x600 IPS touchscreen, pre-installed CB1 core board running Klipper, Ethernet, WiFi, 3x USB 2.0, CAN bus, and built-in speaker.

## Quick Facts

- **Brand:** BigTreeTech
- **Board Type:** Single Board Computer
- **Product Readiness:** consumer
- **CPU:** Allwinner H616 Quad-core Cortex-A53 @ 1.5GHz (CB1)
- **CPU Architecture:** ARM Cortex-A53
- **CPU Cores:** 4
- **RAM:** 1GB DDR3L
- **Flash:** None (32GB microSD included)
- **USB:** 3x USB 2.0,1x USB OTG
- **Power:** DC 12V/2A
- **Operating Voltage:** 3.3V
- **SD Card:** microSD
- **Display:** 7 inch IPS Capacitive Touchscreen 1024x600

## Connectivity

- **Wifi:** true
- **Ethernet:** true

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

Klipper, Armbian, Debian

## Use Cases

- 3D Printing
- Single Board Computing

## Components

- **Allwinner H616** (cpu): Allwinner H616 quad-core ARM Cortex-A53 @ 1.5GHz, part of the CB1 compute module — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Flinux-sunxi.org%2FH616&ref=openhardware.directory&product=bigtreetech-pad-7&source=md-export)
- **7-inch IPS 1024x600** (display): 7-inch IPS display, 1024x600 resolution, 500 cd/m² brightness, 5-point capacitive touch — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fbigtreetech.github.io%2Fdocs%2FPad7.html&ref=openhardware.directory&product=bigtreetech-pad-7&source=md-export)
- **MCP2515** (can-controller): Microchip MCP2515 SPI-to-CAN bus controller for CAN peripheral interface — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.microchip.com%2Fen-us%2Fproduct%2Fmcp2515&ref=openhardware.directory&product=bigtreetech-pad-7&source=md-export)

## Protocols

- **UART**
- **SPI**
- **I2C**
- **CAN**
- **USB**

## Description

The BigTreeTech PAD 7 is a purpose-built all-in-one 3D printer control panel combining a 7-inch 1024x600 IPS touchscreen with a pre-installed CB1 compute module. The CB1 is based on the Allwinner H616 quad-core Cortex-A53 @ 1.5GHz with 1GB DDR3L RAM, and comes with a 32GB SanDisk microSD card preloaded with a Klipper-ready OS image. An optional Raspberry Pi CM4 can replace the CB1 for additional performance.

The display delivers 500 cd/m² brightness, 178° viewing angle, and 5-point capacitive touch, with tactile vibration feedback for button presses. Connectivity includes 100Mbps Ethernet (Gigabit with CM4), dual-band WiFi via the CB1 module, 3x USB 2.0 host ports, a USB OTG Type-C port, and a CAN bus interface via an onboard MCP2515 SPI-CAN controller. An SPI header allows connecting an ADXL345 accelerometer for input shaper calibration directly.

Additional features include a built-in 1W speaker, a 3.5mm headphone jack, and an ambient light sensor for automatic brightness adjustment. Power input is DC 12V/2A. The PAD 7 measures 185.7 x 124.78 x 39.5mm and is designed to mount on a standard 3D printer frame or enclosure. All hardware schematics and firmware are published open-source on GitHub.

## Where to Buy

- [BIQU Equipment](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-pad-7&ref=openhardware.directory&product=bigtreetech-pad-7&source=md-export)

## Resources

- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FPad7&ref=openhardware.directory&product=bigtreetech-pad-7&source=md-export)
- [product](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-pad-7&ref=openhardware.directory&product=bigtreetech-pad-7&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fglobal.bttwiki.com%2FPAD7.html&ref=openhardware.directory&product=bigtreetech-pad-7&source=md-export)

## Tags

`3d-printing`, `klipper`, `touchscreen`, `control-panel`, `allwinner-h616`, `can-bus`, `bigtreetech`, `pad`, `all-in-one`, `7-inch`
