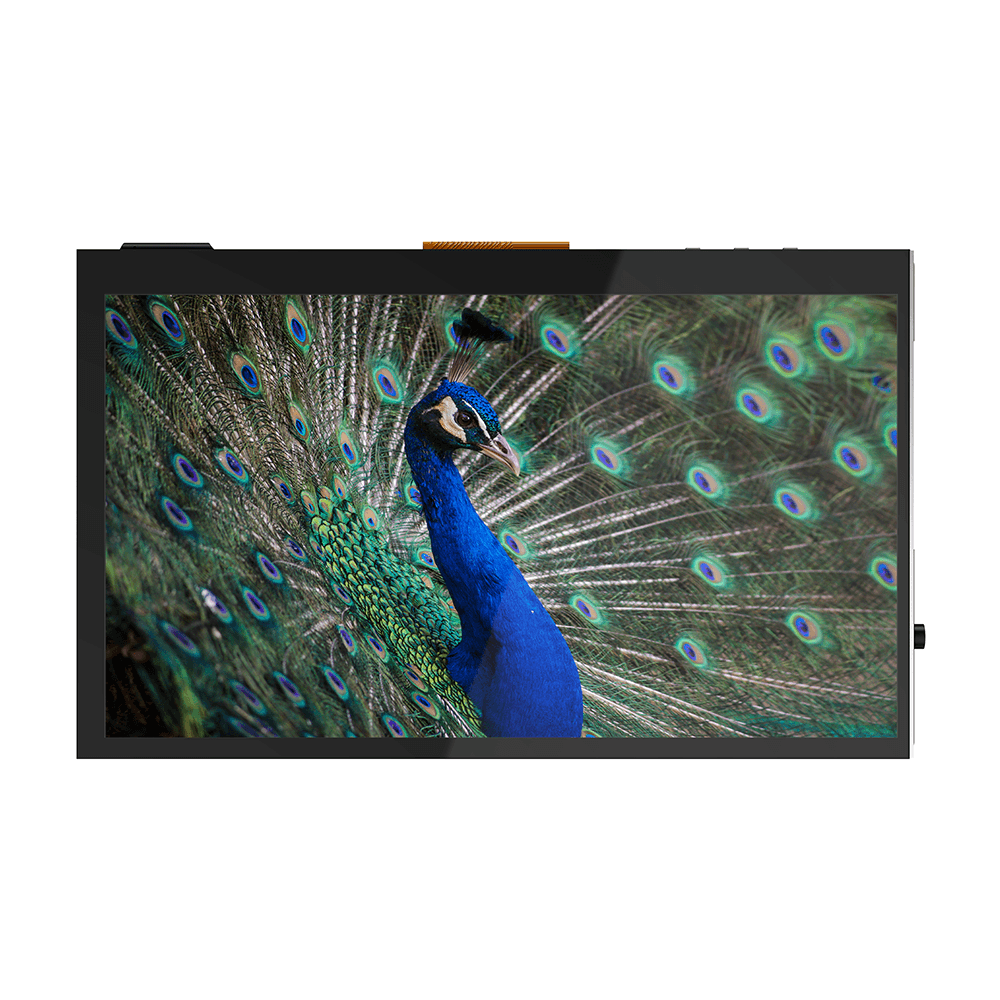

# BigTreeTech HDMI7 V1.0

> 7-inch 1024x600 IPS HDMI capacitive touchscreen display. Universal compatibility with Raspberry Pi, BTT SBCs, and any HDMI source. USB-C touch, 3.5mm audio output, 5-point touch, 160° viewing angle.

## Quick Facts

- **Brand:** BigTreeTech
- **Board Type:** Display
- **Product Readiness:** consumer
- **CPU:** N/A (HDMI display)
- **CPU Architecture:** No
- **RAM:** No
- **Flash:** No
- **USB:** 1x USB Type-C (data)
- **Power:** 5V DC
- **Operating Voltage:** 3.3V
- **SD Card:** No
- **Display:** 7 inch IPS Capacitive Touchscreen 1024x600

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

Klipper

## Use Cases

- 3D Printing

## Components

- **7-inch IPS 1024x600** (display): 7-inch IPS LCD panel, 1024x600 resolution, 160° viewing angle, 5-point capacitive touch — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fglobal.bttwiki.com%2FHDMI7%2520V1.0.html&ref=openhardware.directory&product=bigtreetech-hdmi7-v1-0&source=md-export)

## Protocols

- **HDMI**
- **USB**

## Description

The BigTreeTech HDMI7 V1.0 is a universal 7-inch IPS touchscreen display developed by BIGU Innovation Technology. The 1024x600 resolution panel offers a 160° wide viewing angle and 5-point capacitive multi-touch, making it a versatile monitor for Raspberry Pi, BTT Pi, CB2, and any device with HDMI output.

Like the HDMI5, it receives video via HDMI and touch data via USB Type-C, with automatic driver recognition on Windows and macOS. A built-in audio decoding circuit provides 3.5mm headphone/speaker output. Physical brightness and orientation control buttons (Ks1–Ks3) allow on-device adjustment. Power and status LEDs provide quick visual feedback.

The HDMI7 measures 100x165mm and is powered at 5V DC. It is commonly used as a KlipperScreen interface for BIGTREETECH SBCs and as a secondary monitor for Raspberry Pi desktop setups. Full hardware schematics are published on GitHub under an open-source license.

## Where to Buy

- [BIQU Equipment](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-hdmi5-v1-0-hdmi7-v1-0&ref=openhardware.directory&product=bigtreetech-hdmi7-v1-0&source=md-export)

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-hdmi5-v1-0-hdmi7-v1-0&ref=openhardware.directory&product=bigtreetech-hdmi7-v1-0&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fglobal.bttwiki.com%2FHDMI7%2520V1.0.html&ref=openhardware.directory&product=bigtreetech-hdmi7-v1-0&source=md-export)

## Tags

`3d-printing`, `display`, `hdmi`, `touchscreen`, `7-inch`, `ips`, `klipper`, `klipperscreen`, `bigtreetech`, `raspberry-pi`, `universal`
