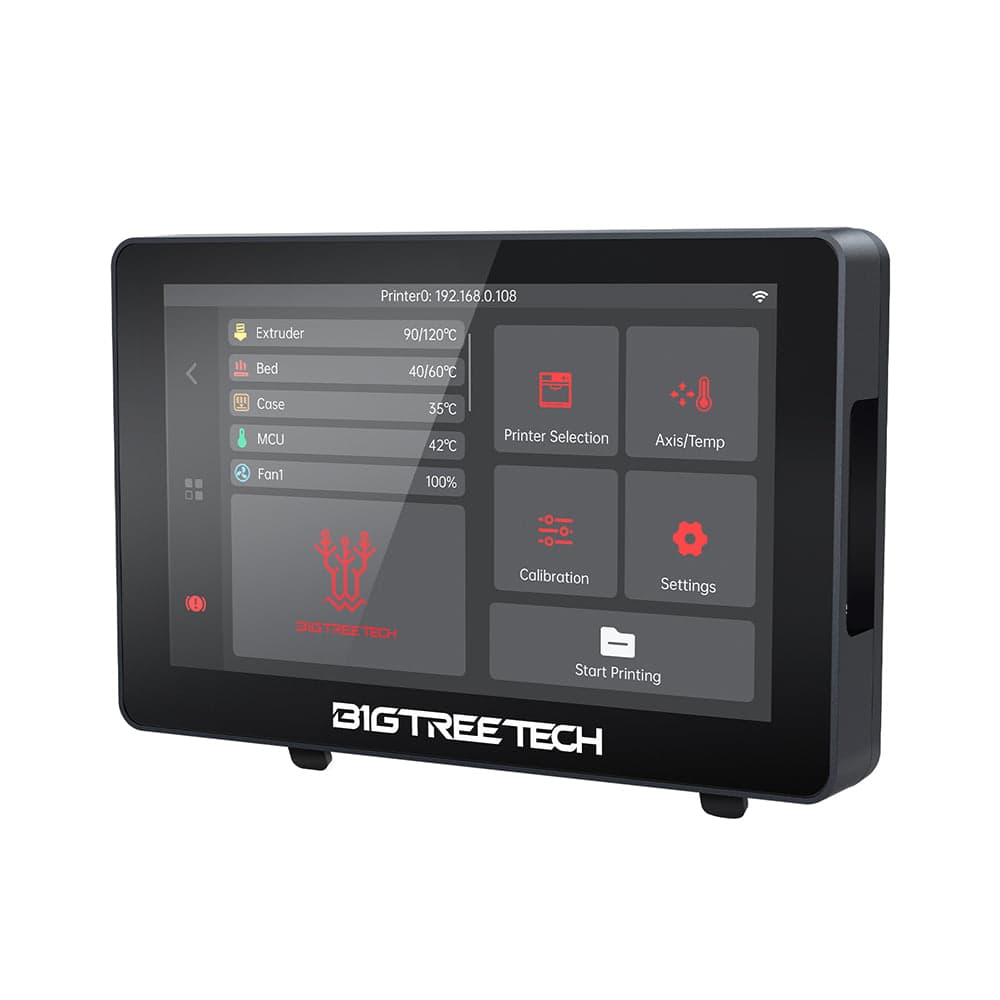

# BigTreeTech K-Touch

> 5-inch 800x480 IPS WiFi touchscreen controller for Klipper printers. ESP32-S3 based, 16MB flash, 8MB PSRAM, built-in battery for 30 minutes portable use, supports up to 50 Klipper printers.

## Quick Facts

- **Brand:** BigTreeTech
- **Board Type:** Display
- **Product Readiness:** consumer
- **CPU:** ESP32-S3R8 Xtensa 32-bit LX7 dual-core @ 240MHz
- **CPU Architecture:** Xtensa LX7
- **CPU Cores:** 2
- **RAM:** 8MB PSRAM
- **Flash:** 16MB
- **Power:** USB-C 5V (magnetic dock)
- **Operating Voltage:** 3.3V
- **Antenna:** Built-in PCB antenna
- **SD Card:** No
- **Display:** 5 inch IPS Capacitive Touchscreen 800x480

## Connectivity

- **Wifi:** true

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

Klipper

## Use Cases

- 3D Printing

## Components

- **ESP32-S3R8** (mcu): Espressif ESP32-S3R8 Xtensa LX7 dual-core @ up to 240MHz with 8MB PSRAM, 2.4GHz WiFi — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=bigtreetech-k-touch&source=md-export)
- **5-inch IPS 800x480** (display): 5-inch IPS display, 800x480 resolution, 16.7M colors, capacitive touch — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fglobal.bttwiki.com%2FKlipper%2520Touch.html&ref=openhardware.directory&product=bigtreetech-k-touch&source=md-export)

## Protocols

- **WiFi**
- **I2C**
- **USB**

## Description

The BigTreeTech K-Touch is a portable 5-inch WiFi touchscreen designed to control Klipper-based 3D printers wirelessly. It shares the same hardware platform as the Panda Touch — Xtensa 32-bit LX7 dual-core ESP32-S3R8 running at up to 240MHz, 16MB Flash, and 8MB PSRAM — but is tailored for the open Klipper ecosystem rather than Bambu Lab printers.

The 800x480 IPS touchscreen with 16.7 million colors connects to the printer's Klipper/Moonraker API over 2.4GHz WiFi (IEEE 802.11 b/g/n) and can manage up to 50 Klipper printers from a single device. A USB port supports FAT32 flash drives for loading 3MF print files. I2C expansion headers allow sensor add-ons. The built-in lithium battery provides up to 30 minutes of portable operation, rechargeable in approximately 1.2 hours. A magnetic charging dock is included in the package.

The K-Touch runs its own dedicated firmware (not KlipperScreen) optimized for the ESP32-S3 platform. Full firmware source code and hardware schematics are published on GitHub. The wiki page at bttwiki.com provides detailed setup instructions and configuration options.

## Where to Buy

- [BIQU Equipment](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-k-touch&ref=openhardware.directory&product=bigtreetech-k-touch&source=md-export)

## Resources

- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FK-Touch&ref=openhardware.directory&product=bigtreetech-k-touch&source=md-export)
- [product](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-k-touch&ref=openhardware.directory&product=bigtreetech-k-touch&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fglobal.bttwiki.com%2FKlipper%2520Touch.html&ref=openhardware.directory&product=bigtreetech-k-touch&source=md-export)

## Tags

`3d-printing`, `display`, `touchscreen`, `klipper`, `esp32-s3`, `wifi`, `5-inch`, `ips`, `bigtreetech`, `battery`, `wireless-control`, `portable`
